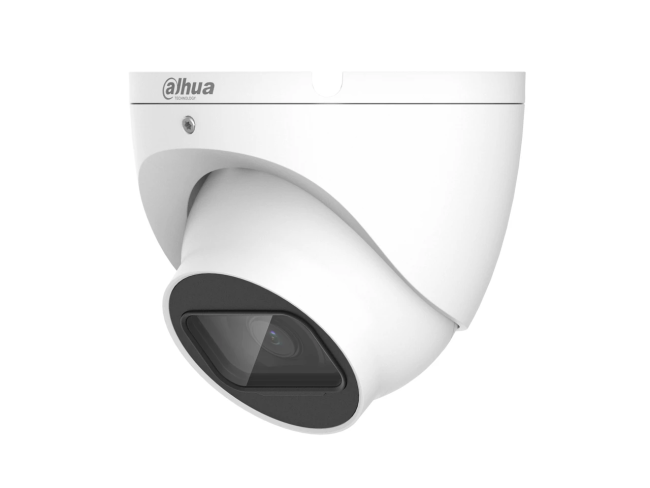

Dahua DH-HAC-HDW1500TLP-A-S2 - 5MP HDCVI Infrared Night Vision Outdoor Eyeball Turret CCTV Camera, White, Mic, IP67 Waterproof
Product Features
- Dahua DH-HAC-HDW1500TLP-A-S2 (HAC-HDW1500TL-A) is a 5MP HDCVI infrared outdoor turret eyeball CCTV camera in white.
- Fixed M12 lens (contact us for lens options) and Smart IR night vision to 30m.
- Built-in microphone sends audio to the recorder over the coax cable.
- CVI, TVI, AHD and CVBS switchable on one BNC output.
- IP67 rated, powered from 12V DC, with digital WDR and 2D noise reduction.
Dahua DH-HAC-HDW1500TLP-A-S2: 5MP HDCVI IR Eyeball Camera, White
The Dahua DH-HAC-HDW1500TLP-A-S2 (also written HAC-HDW1500TLP-A-S2) is the standard white version of Dahua's HAC-HDW1500TL-A, a compact 5MP HDCVI infrared eyeball camera from the HDCVI Lite Series. It has Smart IR up to 30m, and the -A model adds a built-in microphone so audio travels back to the recorder over the same coax. With IP67 protection it also works as an outdoor CCTV camera. Please contact us for lens options.
Who is it for?
Homes and small businesses wanting sharp 5MP coverage of entrances, gardens, driveways and shop floors at a sensible price, including upgrades of older analogue systems on existing coax.
Key specification
| Model | DH-HAC-HDW1500TLP-A-S2 (HAC-HDW1500TL-A, white) |
|---|---|
| Series | Dahua HDCVI Lite Series |
| Image sensor | 1/2.7" CMOS, 5MP |
| Lens | Fixed-focal, M12 (contact us for lens options) |
| IR | Smart IR up to 30m |
| Day/Night | Auto switch by ICR |
| WDR / NR | DWDR; BLC, HLC; 2D NR |
| Audio | Built-in mic (-A) |
| Video output | CVI/TVI/AHD/CVBS switchable on one BNC |
| Power | 12V DC ±30%, max 3.7W (IR on) |
| Protection | IP67 |
| Housing | Inner core metal + plastic; plastic cover; white |
| Operating temperature | -40°C to +60°C |
| Dimensions / weight | 97.0mm × 85.8mm; 0.22kg net |
Mounting accessories (from Dahua's datasheet)
- DH-PFA130-E junction box (alone or with PFA152-E)
- DH-PFA152-E pole mount (with PFA130-E)
What you will need
- An HD analogue recorder, ideally a Dahua Penta-brid XVR for audio over coax
- RG59 coax (or UTP with baluns) to the camera
- A 12V DC power supply
Frequently asked questions
Does this camera record sound?
Yes. The -A model has a built-in microphone, and audio is carried over the coax to a compatible Dahua recorder.
How far does the night vision reach?
Smart IR reaches up to 30m and adjusts its strength so nearby subjects are not over-exposed.
Is there a grey or black version?
Yes. This listing is the white housing; the grey DH-HAC-HDW1500TLP-A-0280B-S2-G is listed separately, and a black version is also available.
Is this an analogue CCTV camera?
Yes. HDCVI is Dahua's HD analogue format, so it sends 5MP video over existing coax cable to an HD analogue recorder.
Will it work with a non-Dahua DVR?
In most cases, yes. The output switches between CVI, TVI, AHD and CVBS.
Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales. Browse the full Dahua range or contact us on 01902 902251.
| Product Code | DH-HAC-HDW1500TLP-A-S2 |
|---|---|
| Manufacturer | Dahua |
| Illumination Distance | Up to 30m |
| WDR | DWDR |
| Noise Reduction | 2DNR |
| Built-in Mic | Yes |
| Material | Metal & Plastic |
| Protection Level | IP67 |
| Power Supply | 12V DC |
| Product Type | HDCVI Camera |
| Colour | White |
| Max Resolution | 5MP |
| Lens Type | Fixed |
| Angle of adjustment | Pan 0°–360°, Tilt 0°–78°, Rotation 0°–360° |
| Day & Night | Auto (ICR) |
| Noise Reduction | 2D NR |
| BLC | BLC/HLC/DWDR |
| Video Output | CVI/TVI/AHD/CVBS switchable via one BNC port |
| Protection Level, Ingress Protection | IP67 |
| Operating Temperature | -40°C to +60°C |
| Power | 12V DC ±30% |
| Dimensions | 97.0mm × 85.8mm |
