Dahua DH-HAC-HDW2501TP-Z-A-S2 - 5MP Starlight HDCVI Infrared Eyeball Turret CCTV Camera, 2.7-13.5mm Motorised Lens, 60m Night Vision, Mic, IP67
Product Features
- Dahua DH-HAC-HDW2501TP-Z-A-S2 is a 5MP Starlight HDCVI eyeball turret CCTV camera.
- 2.7-13.5 mm motorised auto-focus lens.
- 0.001 lux low light; IR up to 60m.
- 120dB WDR; built-in mic.
- IP67 metal casing, 12V DC.

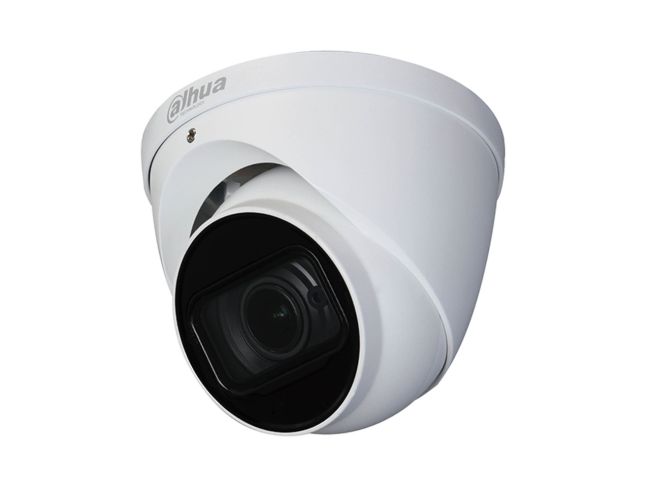

Dahua DH-HAC-HDW2501TP-Z-A-S2 — 5MP Starlight HDCVI Motorised Eyeball Camera
The Dahua DH-HAC-HDW2501TP-Z-A-S2 (also written HAC-HDW2501TP-Z-A-S2 or HAC-HDW2501T-Z-A) is a 5MP Starlight HDCVI eyeball turret camera with a 2.7-13.5 mm motorised auto-focus lens, IR night vision up to 60m, 120dB WDR and a built-in microphone.
Key features
- 5MP (2880 × 1620) 1/2.7" CMOS; 25 fps at 5MP.
- 2.7-13.5 mm motorised varifocal lens with auto focus, F1.6.
- Starlight: 0.001 lux at F1.6; IR up to 60m, Smart IR.
- 120dB WDR, BLC, HLC, HLC-Pro, 3D NR, defog.
- One-channel built-in mic.
- IP67 metal casing, -30 °C to +60 °C, 12V DC.
Technical specification
| Model | DH-HAC-HDW2501TP-Z-A-S2 (PAL -S2 version of the datasheet model HAC-HDW2501T-Z-A) |
|---|---|
| Image sensor | 1/2.7" CMOS, progressive |
| Max. resolution | 5MP, 2880 × 1620 |
| Frame rate | CVI: 5M@25 fps; 4M@25 fps; 1080p@25 fps (PAL). AHD/TVI: 4M@25 fps |
| Video output | CVI/TVI/AHD/CVBS selectable, one BNC port (DIP switch) |
| Min. illumination | 0.001 lux at F1.6 (30IRE); 0 lux IR on |
| Lens | Motorised varifocal 2.7-13.5 mm, auto focus, F1.6 |
| Field of view | H: 31.4°-113°; V: 17.6°-58°; D: 36°-138° |
| IR | Up to 60 m, 2 IR LEDs, smart illumination |
| Day/night | Auto (ICR) |
| Image functions | 120dB WDR, BLC, HLC, HLC-Pro, 3D NR, electronic defog, 4x digital zoom |
| Audio | One-channel built-in mic |
| Power | 12V DC ±30%; max 7.9 W (IR on) |
| Operating temperature | -30 °C to +60 °C; less than 95% RH |
| Protection | IP67; metal casing |
| Dimensions | Ø122 mm × 104.8 mm |
| Weight | 0.60 kg net; 0.76 kg gross |
| Certifications | CE, FCC, UL |
Works with
- An HDCVI recorder supporting 5MP input. See our range of DVRs and XVRs.
- A 12V DC power supply.
- The fixed-lens DH-HAC-HDW2501TP-A-S2.
Common questions
What does HDCVI mean?
HDCVI is Dahua's way of sending HD video over standard coax cable, so an analogue system can be upgraded without rewiring. See our guide to Dahua HDCVI cameras.
What is Starlight?
Dahua's low light imaging; this camera is rated to 0.001 lux. See our Starlight guide.
Can I zoom the lens after installation?
Yes: the 2.7-13.5 mm lens is motorised with auto focus, so the view is adjusted remotely.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more HD analogue cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-HAC-HDW2501TP-Z-A-S2 |
|---|---|
| Manufacturer | Dahua |
| Built-in Mic | Yes |
| Protection Level | IP67 |
| Power Supply | 12V DC |
| Product Type | HDCVI Camera |
| Colour | White |
| Max Resolution | 5MP |
| Lens Type | Motorized Zoom |
| WDR | 120dB WDR |
| Noise Reduction | 3D NR |
| Video Output | HDCVI/CVBS switchable |
| Protection Level, Ingress Protection | IP67 |
| Power | DC12V |
| Dimensions | Ø122mm x 104.8mm |
