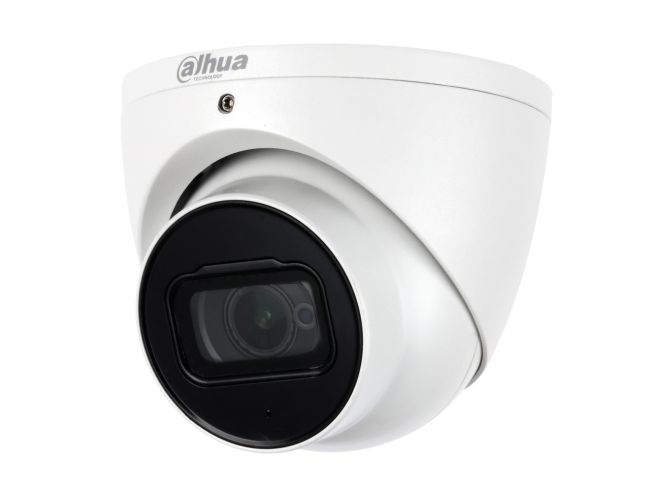

Dahua DH-HAC-HDW2802TP-A - 8MP 4K Starlight HDCVI Infrared Eyeball Turret CCTV Camera, 60m Night Vision, 120dB WDR, Mic, IP67
Product Features
- Dahua DH-HAC-HDW2802TP-A is an 8MP 4K Starlight HDCVI eyeball turret CCTV camera.
- 0.001 lux low light; IR up to 60m.
- 120dB WDR and 3D noise reduction.
- Built-in mic.
- IP67 metal casing, 12V DC.
Dahua DH-HAC-HDW2802TP-A — 4K Starlight HDCVI IR Eyeball Turret Camera
The Dahua DH-HAC-HDW2802TP-A (also written HAC-HDW2802TP-A or HAC-HDW2802T-A) is an 8MP 4K Starlight HDCVI eyeball turret camera with 120dB WDR, IR night vision up to 60m, a built-in microphone and an IP67 metal casing.
Key features
- 4K (3840 × 2160) CMOS; 15 fps at 4K, 25 fps at 5MP.
- Starlight: 0.001 lux colour at F1.5; IR up to 60m, Smart IR.
- 120dB WDR, BLC, HLC, HLC-Pro, 3D NR, defog.
- One-channel built-in mic.
- IP67 metal casing, -40 °C to +60 °C, 12V DC.
Technical specification
| Model | DH-HAC-HDW2802TP-A (PAL version of the datasheet model HAC-HDW2802T-A) |
|---|---|
| Image sensor | 4K CMOS, progressive |
| Max. resolution | 8MP, 3840 × 2160 |
| Frame rate | CVI: 4K@15 fps; 5M@25 fps; 4M@25 fps (PAL). AHD/TVI: 4K@15 fps |
| Video output | CVI/TVI/AHD/CVBS selectable, one BNC port (DIP switch) |
| Min. illumination | 0.001 lux at F1.5 (colour); 0.0001 lux (B/W); 0 lux IR on |
| Lens | Fixed, F1.5; 2.8 mm or 3.6 mm — contact us for a specific lens |
| Field of view | 2.8 mm: H 111°; 3.6 mm: H 87° |
| IR | Up to 60 m, 2 IR LEDs, Smart IR |
| Day/night | Auto (ICR) / colour / B/W |
| Image functions | 120dB WDR, BLC, HLC, HLC-Pro, 3D NR, electronic defog, 4x digital zoom |
| Audio | One-channel built-in mic |
| Power | 12V DC ±30%; max 6.4 W (IR on) |
| Operating temperature | -40 °C to +60 °C; less than 95% RH |
| Protection | IP67; metal casing |
| Dimensions | Ø106.0 mm × 93.6 mm |
| Weight | 0.48 kg net; 0.66 kg gross |
| Certifications | CE, FCC, UL |
Works with
- An HDCVI recorder supporting 4K/8MP input. See our range of DVRs and XVRs.
- A 12V DC power supply.
- The 5MP DH-HAC-HDW2501TP-A-S2.
Common questions
What does HDCVI mean?
HDCVI is Dahua's way of sending HD video over standard coax cable, so an analogue system can be upgraded without rewiring. See our guide to Dahua HDCVI cameras.
What is Starlight?
Dahua's low light imaging; this camera is rated to 0.001 lux in colour. See our Starlight guide.
Which lens does it have?
Dahua lists 2.8 mm and 3.6 mm versions. Contact us for a specific lens.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more HD analogue cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-HAC-HDW2802TP-A |
|---|---|
| Manufacturer | Dahua |
| Built-in Mic | Yes |
| Protection Level | IP67 |
| Power Supply | 12V DC |
| Product Type | HDCVI Camera |
| Colour | White |
| Max Resolution | 8MP (4K) |
| Lens Type | Fixed |
| WDR | 120dB WDR |
| Noise Reduction | 3D NR |
| Video Output | HDCVI/CVBS switchable |
| Protection Level, Ingress Protection | IP67 |
| Power | DC12V |
| Dimensions | Ø106mm x 93.6mm |
