Dahua DH-HAC-HFW1509TUP-Z-A-LED - 5MP Full-Colour HDCVI Bullet CCTV Camera, 2.7-13.5mm Motorised Lens, 60m Warm Light, Mic, IP67
Product Features
- Dahua DH-HAC-HFW1509TUP-Z-A-LED is a 5MP full-colour HDCVI bullet CCTV camera.
- 2.7-13.5 mm motorised varifocal lens, F1.2.
- Warm light up to 60m; 0.001 lux.
- 120dB WDR; built-in mic.
- IP67 metal casing, 12V DC.

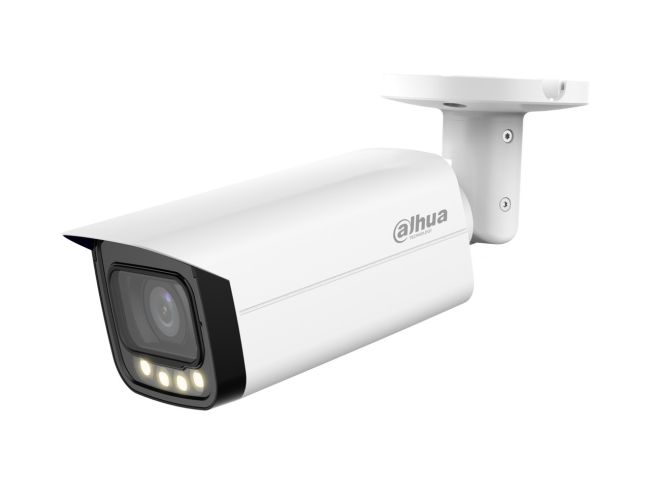

Dahua DH-HAC-HFW1509TUP-Z-A-LED — 5MP Full-Colour HDCVI Motorised Bullet Camera
The Dahua DH-HAC-HFW1509TUP-Z-A-LED (also written HAC-HFW1509TUP-Z-A-LED or HAC-HFW1509TU-Z-A-LED) is a 5MP full-colour HDCVI bullet camera with a 2.7-13.5 mm motorised varifocal lens, warm white light up to 60m for colour images at night, 120dB WDR and a built-in microphone.
Key features
- 5MP (2880 × 1620) CMOS; 25 fps at 5MP.
- 2.7-13.5 mm motorised varifocal lens, F1.2.
- 0.001 lux at F1.2; warm light up to 60m from 4 LEDs.
- 120dB WDR, BLC, HLC, HLC-Pro, 3D NR.
- One-channel built-in mic.
- IP67 metal casing, -30 °C to +60 °C, 12V DC.
Technical specification
| Model | DH-HAC-HFW1509TUP-Z-A-LED (PAL version of the datasheet model HAC-HFW1509TU-Z-A-LED) |
|---|---|
| Image sensor | 5MP CMOS, progressive |
| Max. resolution | 5MP, 2880 × 1620 |
| Frame rate | CVI: 5M@25 fps; 4M@25 fps; 1080p@25 fps (PAL). AHD/TVI: 4M@25 fps |
| Video output | CVI/TVI/AHD/CVBS selectable, one BNC port |
| Min. illumination | 0.001 lux at F1.2; 0 lux white light on |
| Lens | Motorised varifocal 2.7-13.5 mm, F1.2 |
| Field of view | H: 35°-112°; V: 19°-58°; D: 40°-137° |
| Illumination | Warm light up to 60 m, 4 LEDs, Smart Light |
| Image functions | 120dB WDR, BLC, HLC, HLC-Pro, 3D NR |
| Audio | One-channel built-in mic |
| Power | 12V DC ±30%; max 11.88 W (warm light on) |
| Operating temperature | -30 °C to +60 °C; less than 95% RH |
| Protection | IP67; metal casing |
| Dimensions | 244.1 mm × 90.4 mm × 90.4 mm |
| Weight | 0.79 kg net; 1.04 kg gross |
| Certifications | CE, FCC, UL |
Works with
- An HDCVI recorder supporting 5MP input. See our range of DVRs and XVRs.
- A 12V DC power supply.
- The matching eyeball DH-HAC-HDW1509TP-Z-A-LED-27135-S2.
Common questions
What does HDCVI mean?
HDCVI is Dahua's way of sending HD video over standard coax cable, so an analogue system can be upgraded without rewiring. See our guide to Dahua HDCVI cameras.
Does it show colour at night?
Yes: it uses warm white LEDs (up to 60m) instead of infrared, so night images stay in colour.
Can I zoom the lens after installation?
Yes: the 2.7-13.5 mm lens is motorised, so the view is adjusted remotely.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more HD analogue cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-HAC-HFW1509TUP-Z-A-LED |
|---|---|
| Manufacturer | Dahua |
| Built-in Mic | Yes |
| Protection Level | IP67 |
| Power Supply | 12V DC |
| Product Type | HDCVI Camera |
| Colour | White |
| Max Resolution | 5MP |
| Lens Type | Motorized Zoom |
| WDR | 120dB WDR |
| Noise Reduction | 3D NR |
| Video Output | CVI/TVI/AHD/CVBS switchable |
| Protection Level, Ingress Protection | IP67 |
| Power | DC12V |
| Dimensions | 244.1mm x 90.4mm x 90.4mm |
