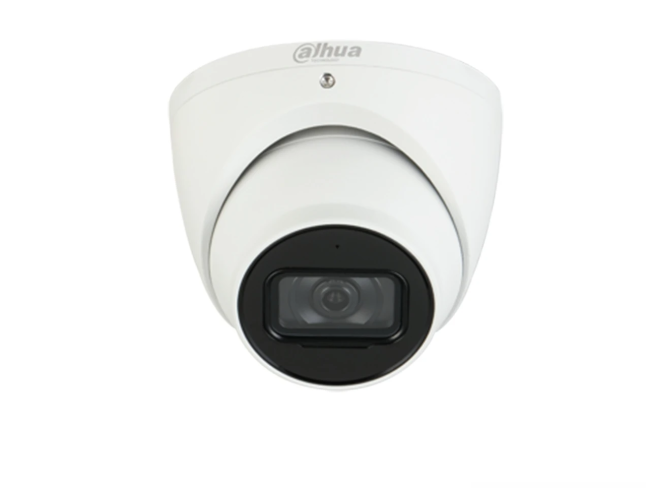

Dahua DH-IPC-HDW5442TMP-ASE - 4MP WizMind AI IR Eyeball Turret IP CCTV Camera, 50m IR, Face Detection, People Counting, Audio and Alarm I/O
Product Features
- Dahua DH-IPC-HDW5442TMP-ASE is a 4MP WizMind AI IR eyeball turret IP CCTV camera.
- 1/1.8" sensor, 140 dB WDR, IR night vision up to 50 m.
- Perimeter protection, face detection, people counting, heat map and video metadata.
- Built-in mic, audio and alarm in/out, Micro SD up to 1 TB.
- 12 VDC, PoE (802.3af) or ePoE; IP67.
Dahua DH-IPC-HDW5442TMP-ASE — 4MP WizMind AI IR Eyeball Turret IP CCTV Camera
The Dahua DH-IPC-HDW5442TMP-ASE (also written IPC-HDW5442TMP-ASE) is the PAL version of Dahua's IPC-HDW5442TM-ASE, a 4MP IR eyeball WizMind network camera, also known as a turret camera. It has a 1/1.8" sensor with 140 dB WDR, IR night vision up to 50 m, and WizMind AI for perimeter protection, face detection, people counting, heat map and video metadata. It adds a built-in microphone, audio and alarm connections and an IP67 housing for outdoor use.
Key features
- 4MP (2688 × 1520) at 25/30 fps, or 1080p at 50/60 fps, from a 1/1.8" CMOS sensor.
- Fixed-focal lens, F1.6: Dahua lists 2.8 mm, 3.6 mm and 6 mm versions (contact us for a specific lens).
- IVS: intrusion, tripwire and fast moving with human, vehicle and animal classification; loitering, people gathering and parking detection.
- Face detection, people counting and queue management, heat map, abandoned and missing object, video metadata, SMD 3.0 and AcuPick.
- IR night vision up to 50 m; 140 dB WDR; 0.0007 lux colour at F1.6.
- Built-in microphone, 1 audio in / 1 audio out, 1 alarm in / 1 alarm out; Micro SD up to 1 TB.
- 12 VDC, PoE (802.3af) or ePoE with dual power backup; IP67.
Technical specification
| Model | DH-IPC-HDW5442TMP-ASE (PAL version of the datasheet model IPC-HDW5442TM-ASE) |
|---|---|
| Series | WizMind |
| Image sensor | 1/1.8" CMOS |
| Max. resolution | 2688 × 1520 (4MP) |
| Frame rate | Main stream 2688 × 1520 at 1-25/30 fps or 1920 × 1080 at 1-50/60 fps; 4 streams |
| Lens | Fixed-focal, M12, F1.6; 2.8 mm, 3.6 mm or 6 mm (contact us for a specific lens) |
| Field of view | 2.8 mm: H 112°; 3.6 mm: H 88°; 6 mm: H 61° |
| Minimum illumination | 0.0007 lux@F1.6 colour; 0.0004 lux@F1.6 B/W; 0 lux with IR on |
| IR distance | Up to 50 m (2 IR LEDs) |
| WDR | 140 dB |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only); Smart H.265+; Smart H.264+; AI H.265; AI H.264 |
| Intelligence | IVS with human, vehicle and animal classification; face detection; people counting; heat map; video metadata; smart object detection; SMD 3.0; AcuPick; smart sound detection |
| Audio | Built-in microphone; 1 input and 1 output (RCA) |
| Alarm | 1 input (wet contact, 5 mA 3-5 VDC); 1 output (wet contact, 300 mA 12 VDC) |
| Storage | Micro SD up to 1 TB; FTP; SFTP; NAS |
| Network | RJ-45 (10/100 Base-T); ONVIF Profile S, G, T and M |
| Power | 12 VDC, PoE (802.3af) or ePoE; basic 5.5 W, max. 9.7 W on PoE |
| Protection | IP67 |
| Operating temperature | -40 °C to +60 °C |
| Casing and size | Metal (plastic decoration ring); 99.1 mm × Φ121.9 mm; net weight 500 g |
Works with
- Dahua DH-PFA130-E junction box
- Dahua DH-PFB220C ceiling mount bracket
- Dahua DH-PFA152-E pole mount bracket
- The full-colour LED version (DH-IPC-HDW5442TMP-AS-LED-0280B)
Common questions
Which lens does it have?
Dahua lists 2.8 mm, 3.6 mm and 6 mm fixed lenses for this model. Contact us for a specific lens.
Can it count people and detect faces?
Yes. Dahua lists face detection, tripwire people counting, in-area counting and queue management with reports, and a heat map.
How far can it see at night?
Dahua lists IR illumination up to 50 m, with 0.0007 lux colour at F1.6.
Does it have audio and alarm connections?
Yes: a built-in microphone, 1 audio input, 1 audio output, 1 alarm input and 1 alarm output.
How is it powered?
12 VDC, PoE (802.3af) or ePoE, up to 9.7 W on PoE. With both adapter and PoE connected, it keeps running if one is removed.
Will it work with a non-Dahua recorder?
It supports ONVIF Profile S, G, T and M.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more IP cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-IPC-HDW5442TMP-ASE |
|---|---|
| Manufacturer | Dahua |
| Protection Level | IP67 |
| Power Supply | 12V DC, PoE, ePoE |
| Built-in Mic | Yes |
| Illuminator Type | IR LED |
| Product Type | IP Camera |
| Colour | Brown |
| Max Resolution | 4MP |
| Lens Type | Fixed |
