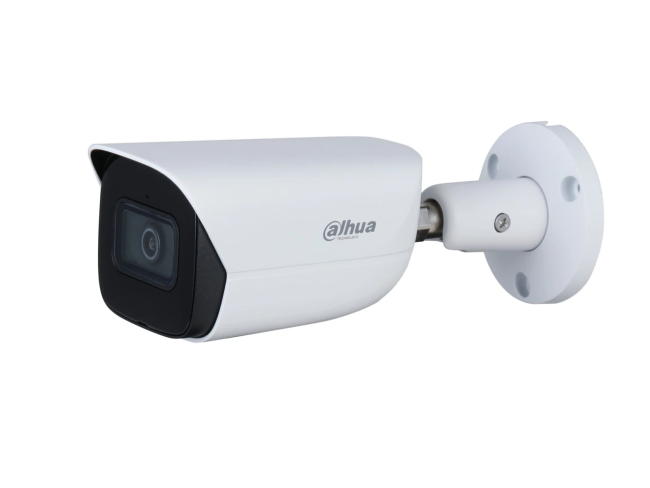

Dahua DH-IPC-HFW3541E-S-S2 - 5MP AI IR Bullet IP CCTV Camera, 50m IR Night Vision, Built-in Mic, PoE, IP67
Product Features
- Dahua DH-IPC-HFW3541E-S-S2 is a 5MP AI IR fixed-focal bullet IP CCTV camera.
- IR night vision up to 50 m, 120 dB WDR.
- Tripwire and intrusion with human and vehicle classification, AI SSA and Quick Pick.
- Built-in microphone, three streams, Micro SD up to 256 GB.
- PoE (802.3af) or 12 VDC; IP67 metal housing.
Dahua DH-IPC-HFW3541E-S-S2 — 5MP AI IR Fixed-focal Bullet IP CCTV Camera
The Dahua DH-IPC-HFW3541E-S-S2 (also written IPC-HFW3541E-S-S2) is a 5MP IR fixed-focal bullet IP CCTV camera with AI perimeter protection, IR night vision up to 50 m, a built-in microphone and PoE power. It is the -S version, without the audio and alarm connections of the -AS version. The IP67 metal housing operates from -40 °C to +60 °C, so it works as an outdoor security camera.
Key features
- 5MP (2960 × 1668) at up to 20 fps from a 1/2.7" CMOS sensor, or 2688 × 1520 at 25/30 fps.
- Fixed-focal lens, F1.4: Dahua lists 2.8 mm, 3.6 mm and 6 mm versions (contact us for a specific lens).
- IVS perimeter protection: tripwire and intrusion with human and vehicle classification; AI SSA; Quick Pick with an AI NVR.
- IR night vision up to 50 m; 120 dB WDR; 0.005 lux colour at F1.4.
- AI H.265 / AI H.264 and Smart H.265+ / H.264+ coding, 3 streams.
- Built-in microphone; Micro SD up to 256 GB.
- 12 VDC or PoE (802.3af); IP67.
Technical specification
| Model | DH-IPC-HFW3541E-S-S2 |
|---|---|
| Image sensor | 1/2.7" CMOS |
| Max. resolution | 2960 × 1668 (5MP) |
| Frame rate | Main stream 2880 × 1620 / 2960 × 1668 at 1-20 fps; 2688 × 1520 at 1-25/30 fps |
| Lens | Fixed-focal, M12, F1.4; 2.8 mm, 3.6 mm or 6 mm (contact us for a specific lens) |
| Field of view | 2.8 mm: H 111°; 3.6 mm: H 92°; 6 mm: H 57° |
| Minimum illumination | 0.005 lux@F1.4 colour; 0.0005 lux@F1.4 B/W; 0 lux with IR on |
| IR distance | Up to 50 m (1 IR LED) |
| WDR | 120 dB |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only); Smart H.265+; Smart H.264+; AI H.265; AI H.264 |
| Intelligence | IVS tripwire and intrusion with human and vehicle classification; AI SSA; Quick Pick |
| Audio | Built-in microphone (audio and alarm I/O on the -AS version only) |
| Storage | Micro SD up to 256 GB; FTP; SFTP; NAS |
| Network | RJ-45 (10/100 Base-T); ONVIF Profile S, G and T; Milestone; Genetec |
| Power | 12 VDC or PoE (802.3af); basic 3.7 W, max. 6.5 W on PoE |
| Protection | IP67 |
| Operating temperature | -40 °C to +60 °C |
| Casing and size | Metal; 192.7 × 70.5 × 66.4 mm; net weight 590 g |
Works with
- Dahua DH-PFA130-E junction box
- Dahua DH-PFA152-E pole mount bracket
- The -AS version with audio and alarm I/O (DH-IPC-HFW3541EP-AS-0280B-S2)
Common questions
Which lens does it have?
Dahua lists 2.8 mm, 3.6 mm and 6 mm fixed lenses for this model. Contact us for a specific lens.
How far does the IR reach?
Dahua lists IR illumination up to 50 m.
Does it have audio or alarm connections?
It has a built-in microphone. Audio and alarm inputs and outputs are supported only by the -AS version.
How is it powered?
12 VDC or PoE (802.3af), up to 6.5 W on PoE.
Will it work with a non-Dahua recorder?
It supports ONVIF Profile S, G and T, so it can be added to compatible third-party recorders.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more IP cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-IPC-HFW3541E-S-S2 |
|---|---|
| Manufacturer | Dahua |
| Protection Level | IP67 |
| Power Supply | 12V DC, PoE |
| Built-in Mic | Yes |
| Illuminator Type | IR LED |
| Product Type | IP Camera |
| Colour | Brown |
| Max Resolution | 5MP |
| Lens Type | Fixed |
