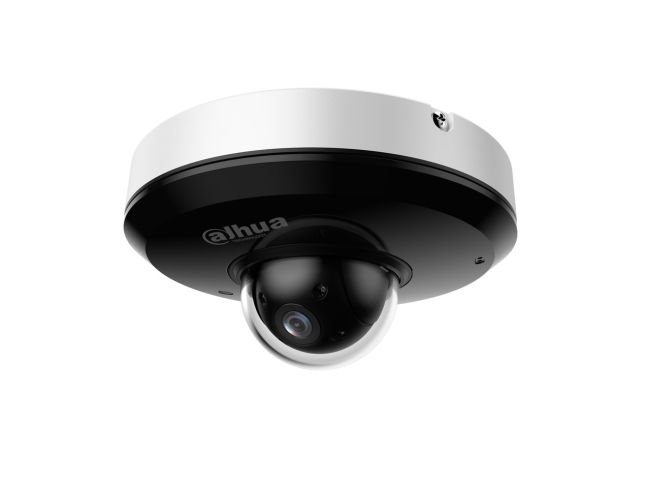

Dahua DH-SD1A404DB-GNY - 4MP 2K Starlight IR WizSense Pan Tilt Zoom PTZ IP CCTV Camera, 4x Optical Zoom, 20m IR, Built-in Mic, PoE
Product Features
- Dahua DH-SD1A404DB-GNY 4MP 2K Starlight WizSense pan tilt zoom (PTZ) IP CCTV camera with 4x optical zoom (2.8 mm to 12 mm).
- IR night vision up to 20 m from 3 IR illuminators.
- Perimeter protection with human classification, face detection, people counting and SMD.
- Built-in microphone, microSD up to 512 GB.
- PoE (802.3af) or 12 VDC, IP66.
Dahua DH-SD1A404DB-GNY - 4MP 2K Starlight IR WizSense PTZ IP CCTV Camera
The Dahua DH-SD1A404DB-GNY (also written SD1A404DB-GNY) is a compact 4MP 2K pan tilt zoom IP CCTV camera in Dahua's IP PT 3 Series, with 4x optical zoom, Starlight low light imaging and IR night vision up to 20 m. Dahua names it the "4MP 4x Starlight IR WizSense PTZ Camera".
Key features
- 1/2.8" 4MP CMOS sensor, up to 2560 × 1440 at 25/30 fps, 3 streams.
- 2.8 mm to 12 mm lens with 4x optical zoom and 16x digital zoom.
- Pan 0° to 355°, tilt 5° to 90°, 300 presets and 8 tours.
- IR up to 20 m from 3 IR illuminators; 0 lux with IR on.
- Perimeter protection (tripwire, intrusion and more) with human alarm classification, face detection, people counting and SMD.
- Built-in microphone (mutually exclusive with line in), 1 audio in and 1 audio out.
- 120 dB WDR and Smart H.265+ / Smart H.264+.
- PoE (802.3af) or 12 VDC; IP66, IK08 and TVS 6000 V protection.
Technical specification
| Model | DH-SD1A404DB-GNY (Dahua lists it as SD1A404DB-GNY) |
|---|---|
| Image sensor | 1/2.8" CMOS, 4MP |
| Max. resolution | 2560 × 1440 |
| Lens | 2.8 mm to 12 mm, F1.8 to F2.7; 4x optical, 16x digital zoom |
| Field of view | H 96.9° to 31.6°; V 51.4° to 17.8°; D 116.2° to 36.4° |
| Minimum illumination | 0.005 lux colour, 0.0005 lux B/W at F1.8; 0 lux with illuminator on |
| IR | 3 IR illuminators, up to 20 m |
| Pan and tilt | Pan 0° to 355°; tilt 5° to 90° |
| Presets and tours | 300 presets; 8 tours (up to 32 presets per tour) |
| Intelligence | IVS perimeter protection, human alarm classification, face detection, people counting, SMD |
| WDR | 120 dB |
| Video compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream) |
| Audio | 1 in (line in, or built-in mic), 1 out |
| Storage | microSD up to 512 GB; FTP/SFTP; NAS |
| Network | RJ-45 10/100 Base-T; ONVIF Profile S, G and T |
| Power | 12 VDC 2 A ±10%; PoE (802.3af); basic 4 W, max 13 W |
| Protection | IP66; IK08; TVS 6000 V lightning, surge and voltage transient protection |
| Operating temperature | -30°C to +60°C |
| Size and weight | 65.7 mm × Φ128 mm; 0.5 kg net |
Works with
Common questions
How far can it see at night?
Dahua lists IR up to 20 m, and Starlight sensitivity of 0.005 lux in colour. See our Starlight guide.
What AI does it have?
Dahua lists perimeter protection with human alarm classification, face detection, people counting and SMD as part of its WizSense range.
Does it record sound?
Yes. It has a built-in microphone, which is mutually exclusive with the line in.
How is it powered?
PoE (802.3af) or 12 VDC, 2 A. Maximum draw is 13 W with the illuminator on.
Is it suitable for outdoor use?
Dahua rates it IP66 and IK08, with -30°C to +60°C operation.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more IP cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-SD1A404DB-GNY |
|---|---|
| Manufacturer | Dahua |
| AI Function | IVS (Perimeter Protection), Face Detection, People Counting |
| Protection Level | IP66 |
| Power Supply | 12V DC, PoE |
| Illumination Distance | Up to 30m |
| Built-in Mic | Yes |
| Illuminator Type | IR LED |
| Product Type | PT Camera |
| Colour | Brown |
| Max Resolution | 4MP |
| Lens Type | Motorized Zoom |
| Max. IR Range | Up to 20 m |
