Dahua DHI-ASM100-V1 - Mifare Card Enrollment Reader
Product Features
- USB IC (Mifare) card enrollment reader, plug and play
- 13.56MHz card reading frequency, 3-5cm issuing distance
- Status LED and buzzer feedback for successful/failed issuing
- Desktop unit for enrolling cards at a PC before use on the access system

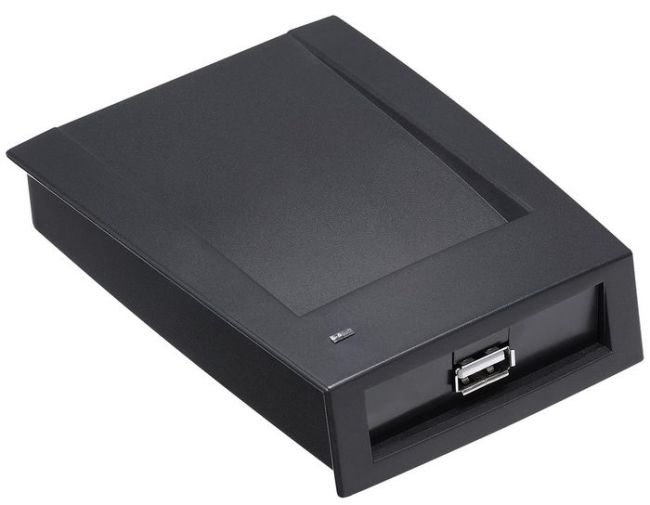

Dahua DHI-ASM100-V1 — Mifare Card Enrollment Reader
The DHI-ASM100-V1 is a USB desktop reader for enrolling IC (Mifare) cards into a Dahua access control system — plug and play, with a status LED and buzzer confirming a successful or failed issue.
Who is it for?
Rather than enrolling cards one at a time at each door controller, this desktop reader lets an administrator issue and register cards from a PC — useful for sites issuing many cards, or wanting enrollment done at a reception desk rather than the door itself.
Key specification
| Card Type | IC (Mifare) cards, 13.56MHz |
|---|---|
| Connectivity | USB, plug and play |
| Card Issuing Distance | 3–5cm |
| Feedback | Status LED (green = normal, red = abnormal) and buzzer confirmation |
| Power | 5V DC, 0.5A (via USB) |
| Dimensions | 105 x 75 x 20mm |
| Weight | 0.18kg |
What you will need
- A PC with a free USB port and the Dahua access management software
- Blank or existing Mifare-compatible IC cards to enrol
Frequently asked questions
Does this replace the door reader?
No — it's an enrollment reader for registering cards at a PC, separate from the readers fitted at each door.
What card types does it support?
IC (Mifare) cards at 13.56MHz.
How do I know if enrollment succeeded?
The unit goes solid green with a 1-second buzzer on success, or flashes red with 3 buzzer beeps on failure.
Browse the full Dahua range or see more Access control equipment. Contact us on 01902 902251 or visit our Wolverhampton trade counter.
| Product Code | DHI-ASM100-V1 |
|---|---|
| Manufacturer | Dahua |
| Power | 5V DC, 0.5A (USB) |
