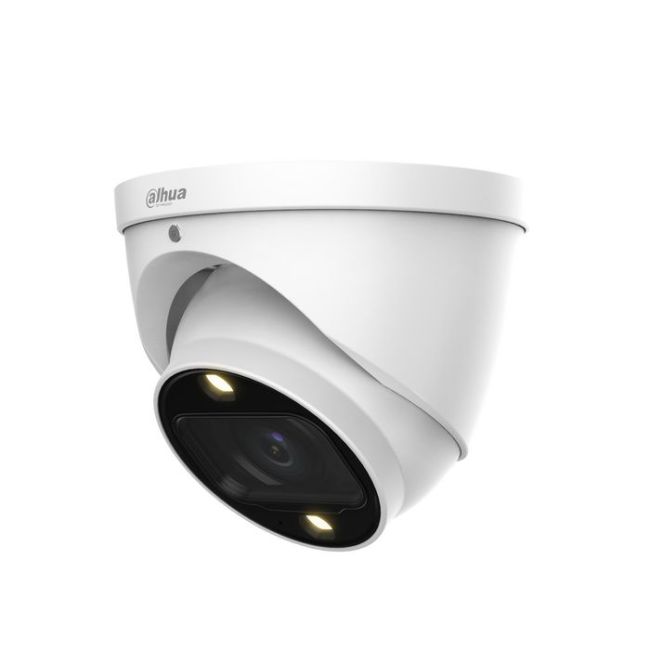

Dahua DH-HAC-HDW1509TP-Z-A-LED-27135-S2 - 5MP Full-Color HDCVI Motorised Dome Camera
Product Features
- 5MP sensor, Full-Color technology — colour video day and night
- Motorised 2.7-13.5mm vari-focal lens
- Warm-light illuminator range up to 40m
- 120dB true WDR, 3D NR
- IP67 weatherproof, metal housing
Dahua DH-HAC-HDW1509TP-Z-A-LED-27135-S2 — 5MP Full-Color HDCVI Motorised Dome Camera
The DH-HAC-HDW1509TP-Z-A-LED-27135-S2 uses Dahua's Full-Color sensor and a built-in warm-light illuminator to record colour video around the clock, instead of switching to monochrome IR at night. A motorised 2.7-13.5mm lens allows the field of view to be set on site.
Who is it for?
Sites where identifying colour — clothing, vehicles, number plates — matters even at night: entrances, car parks and loading bays where a black-and-white IR image is not detailed enough for identification.
Key specification
| Resolution | 5MP (2880 x 1620) |
|---|---|
| Lens | 2.7mm-13.5mm motorised vari-focal, F1.2 |
| Illumination | Full-Color warm light, range up to 40m |
| WDR | 120dB true WDR |
| Video Output | CVI/TVI/AHD/CVBS switchable via one BNC |
| Power | 12V DC ±30%, max 7.92W |
| Protection | IP67, metal housing |
| Dimensions | Ø122mm x 104.8mm, 0.58kg net |
What you will need
- A Dahua XVR recorder with a spare HDCVI channel
- RG59 coax and 12V power to the camera location
- A surveillance-grade hard drive sized to your retention needs
Frequently asked questions
How is this different to a normal IR camera?
A standard IR camera switches to black-and-white at night. This camera uses a warm-light illuminator to keep recording in colour instead.
Does the light disturb neighbours?
The illuminator is a warm white light aimed at the scene, similar to a small security light — consider positioning if it faces a neighbouring window.
Is it weatherproof?
Yes — IP67 rated, metal housing.
Browse the full Dahua range, all CCTV cameras or recorders. Need help choosing? Contact us, call 01902 902251, or visit the Wolverhampton trade counter.
| Product Code | DH-HAC-HDW1509TP-Z-A-LED-27135-S2 |
|---|---|
| Manufacturer | Dahua |
| Max Resolution | 5MP |
| Lens Size | 2.7 mm to 13.5 mm |
| Lens Type | Motorized Zoom |
| Angle of adjustment | Pan: 0°~360° Tilt: 0°~78° Rotation: 0°~360° |
| WDR | 120dB |
| White Balance | Auto / Area WB |
| Noise Reduction | 3D NR |
| BLC | BLC/HLC/WDR/HLC-Pro |
| Min. Illumination | 0.001 Lux/F1.2, 0 Lux White Light on |
| Video Output | CVI/TVI/AHD/CVBS switchable via one BNC port |
| Protection Level, Ingress Protection | IP67 |
| Operating Temperature | -30°C ~ +60°C (-22°F ~ +140°F) |
| Power | 12V DC ±30% |
| Dimensions | Ø122mm x 104.8mm |
