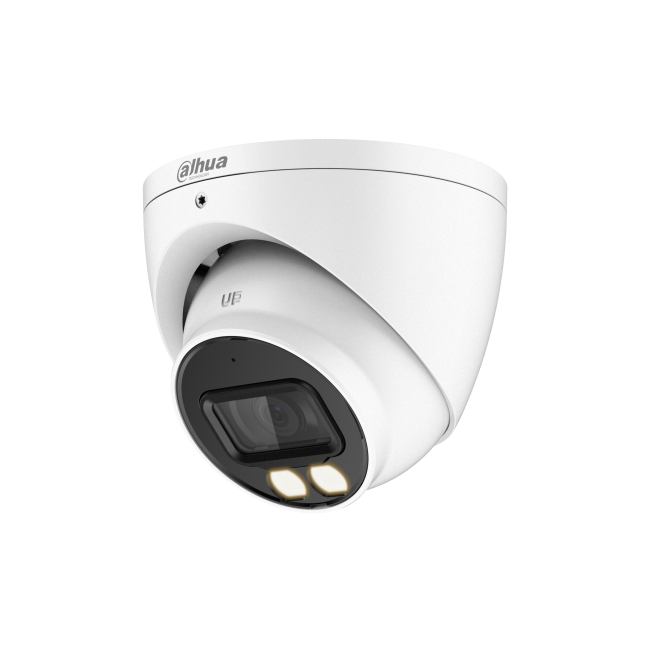

Dahua DH-HAC-HDW1509TP-IL-A-S2 - 5MP Smart Dual Light HDCVI Eyeball Camera, 2.8mm
Product Features
- 5MP (2880 × 1620) HDCVI eyeball camera: choose white, grey or black
- 2.8mm fixed lens, F1.0, 111° horizontal view
- Smart dual light: IR and warm light, each up to 40m
- Built-in microphone, audio over coax
- 120dB WDR, 3D NR, Super Adapt
- IP67 metal housing, 12V DC
Dahua DH-HAC-HDW1509TP-IL-A-S2: 5MP Smart Dual Light HDCVI Eyeball Camera
The Dahua DH-HAC-HDW1509TP-IL-A-S2 (Dahua model HAC-HDW1509T-IL-A-S2) is a 5MP eyeball camera from the Dahua HDCVI Lite Series. Smart dual light gives you IR or warm light up to 40m: paired with a Dahua AI XVR, the camera switches on its warm light for full-colour video when a person or vehicle enters a rule area, then drops back to IR to cut light pollution. A built-in microphone sends audio back over the same coax cable as the video.
Choose your version
Pick the housing colour from the options above. All versions have the 2.8mm lens:
| Version | Lens | Colour |
|---|---|---|
| DH-HAC-HDW1509TP-IL-A-0280B-S2 | 2.8mm | White |
| DH-HAC-HDW1509TP-IL-A-0280B-S2-G | 2.8mm | Grey |
| DH-HAC-HDW1509TP-IL-A-BLK | 2.8mm | Black |
Who is it for?
Homes and small businesses that want sharp 5MP video with colour at night, and anyone upgrading an older coax CCTV system without re-cabling. The grey and black housings blend in with dark walls, soffits and modern cladding.
Key specification
| Model | DH-HAC-HDW1509TP-IL-A-S2 (HAC-HDW1509T-IL-A-S2) |
|---|---|
| Series | Dahua HDCVI Lite Series |
| Image sensor | 5MP CMOS |
| Max resolution | 2880 × 1620 (5MP, 16:9) at 25fps |
| Lens | 2.8mm fixed-focal, M12, F1.0 |
| Field of view | H 111°, V 57°, D 131° |
| Illumination | Smart dual light: IR up to 40m and warm light up to 40m |
| Min. illumination | 0.001 lux @ F1.0 (colour); 0.0001 lux @ F1.0 (B/W); 0 lux with illuminator on |
| WDR / noise reduction | 120dB WDR; 3D NR; BLC, HLC |
| Audio | Built-in microphone, audio over coax |
| Video output | CVI / TVI / AHD / CVBS switchable on one BNC |
| Power | 12V DC ±30%; max. 5.7W (LED on) |
| Protection | IP67 |
| Housing | Metal |
| Operating temperature | -40°C to +60°C |
| Dimensions / weight | Ø106.0mm × 93.6mm; 0.49kg net |
DORI distances
Detect, observe, recognise and identify distances (EN 62676-4) for the 2.8mm lens, from Dahua's datasheet:
| Lens | Detect | Observe | Recognise | Identify |
|---|---|---|---|---|
| 2.8mm | 66.0m | 26.4m | 13.2m | 6.6m |
Mounting accessories (from Dahua's datasheet)
- DH-PFA130-E water-proof junction box (grey: DH-PFA130-E-G)
- PFB204W wall mount bracket
- DH-PFA106 adapter plate with DH-PFB220C ceiling mount
- DH-PFA152-E pole mount (with PFB204W)
What you will need
- A Dahua XVR (an AI XVR for the smart warm-light switching) with a free HDCVI channel
- RG59 coax (or Cat5e/6 with baluns) and a 12V DC supply to each camera
- A multi-way 12V power supply if you are fitting several cameras
Frequently asked questions
Does it record in colour at night?
Yes. In warm-light mode it records full-colour video at night up to 40m. In smart mode with a Dahua AI XVR it uses IR until a person or vehicle is detected, then switches to warm light.
Does it record sound?
Yes. It has a built-in microphone and sends audio to the recorder over the coax cable.
Will it work with my existing recorder?
The output switches between CVI, TVI, AHD and CVBS, so it works with most HD analogue recorders. The smart light switching needs a Dahua AI XVR.
Which colour should I choose?
All three are the same camera. White suits light walls and soffits; grey and black are less noticeable on dark brick, cladding and black fascias.
Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales. Browse the full Dahua range or contact us on 01902 902251.
| Product Code | DH-HAC-HDW1509TP-IL-A-S2 |
|---|---|
| Manufacturer | Dahua |
| Illumination Distance | 31–60m |
| WDR | True WDR |
| Noise Reduction | 3DNR |
| Built-in Mic | Yes |
| Material | Metal |
| Protection Level | IP67 |
| Power Supply | 12V DC |
| Product Type | HDCVI Camera |
| Max Resolution | 5MP |
| Lens Size | 2.8 mm |
| Lens Type | Fixed |
| WDR | 120dB |
| Protection Level, Ingress Protection | IP67 |
| Operating Temperature | -40°C to +60°C |
| Power | 12V DC ±30% |
| Dimensions | Ø106.0mm x 93.6mm |
