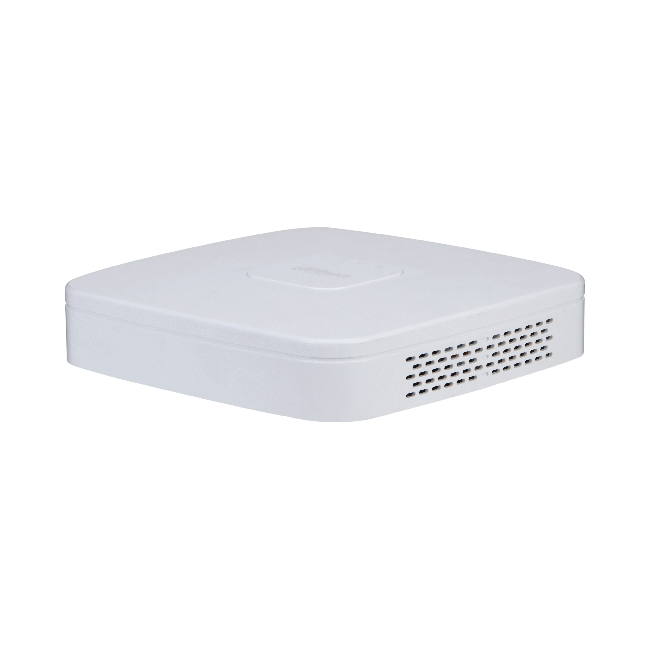

Dahua DHI-NVR4104-EI - 4 Channel WizSense Network Video Recorder (Non-PoE)
Product Features
- 4-channel 1U WizSense NVR, IP cameras up to 16MP
- AI by recorder: 1-ch face detection and recognition, 2-ch perimeter protection, 4-ch SMD Plus
- 1 SATA HDD bay, up to 20TB
- 4K HDMI and VGA output
- Non-PoE: use with a PoE switch or separately powered cameras
Dahua DHI-NVR4104-EI: 4 channel WizSense NVR
The DHI-NVR4104-EI is a small 4-channel network video recorder from Dahua's WizSense NVR series. It has one hard-drive bay and takes IP cameras up to 16MP. The recorder runs its own AI, including face recognition, perimeter protection and SMD Plus. SMD Plus filters motion alerts down to people and vehicles, even with standard cameras. This is the non-PoE version, so cameras are powered by a PoE switch or their own supplies. See the wider Dahua WizSense range.
Who is it for?
It suits homes and small businesses with up to four IP cameras, especially where a PoE switch is already in place or the cameras are some way from the recorder.
Key specification
| Channels | 4 IP channels, cameras up to 16MP |
|---|---|
| Bandwidth | 80 Mbps incoming / recording / outgoing |
| Decoding | Up to 2 x 16MP@30fps or 4 x 8MP@30fps (AI off) |
| AI by recorder | 1-ch face detection and recognition (10 databases, 20,000 faces), 2-ch perimeter protection, 4-ch SMD Plus |
| AI by camera | Face detection and recognition, perimeter protection, SMD, ANPR, people counting, heat map |
| Video output | 1 x HDMI (up to 3840 x 2160), 1 x VGA |
| Storage | 1 x SATA, up to 20TB |
| Ports | 1 x RJ-45 (10/100 Mbps), 2 x rear USB 2.0, audio in/out |
| Power | 12 VDC, 2 A; under 10 W without HDD |
| Dimensions / weight | 204.6 x 206.4 x 45.6 mm; 0.45 kg |
What you will need
- A surveillance-grade hard drive. Choose one from the Hard Drive option above, or supply your own (up to 20TB).
- Up to 4 IP cameras and a PoE switch or power supplies for them
- An HDMI or VGA monitor for setup and local viewing
Frequently asked questions
Does the NVR4104-EI have PoE ports?
No. It has one network port. If you want cameras to plug straight into the recorder, choose the DHI-NVR4104-P-EI instead.
Do I need AI cameras for SMD Plus?
No. SMD Plus, face recognition and perimeter protection run on the recorder for the channels listed above.
What is the largest hard drive it takes?
One SATA drive up to 20TB.
Does it come with a hard drive?
It is sold without a hard drive. You can add one from the Hard Drive option on this page.
Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales. Browse the full Dahua range or contact us on 01902 902251.
| Product Code | DHI-NVR4104-EI |
|---|---|
| Manufacturer | Dahua |
| HDD Bays | 1 |
| Max IP Camera Resolution | 16MP |
| PoE Ports | 0 |
| AI Function | SMD Plus, IVS (Perimeter Protection), Face Detection, Face Recognition |
| Video Output | 1 VGA/1 HDMI |
| Product Type | NVR |
| Max No. of Channels | 4 ch |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Recording Resolution | Up to 16MP |
| Display | 1 x HDMI (up to 3840x2160), 1 x VGA |
| Storage Capacity | 1 x SATA, up to 20TB |
| Power | 12 VDC, 2A, <10W (without HDD) |
| Dimensions | 204.6 x 206.4 x 45.6 mm (W x D x H) |
