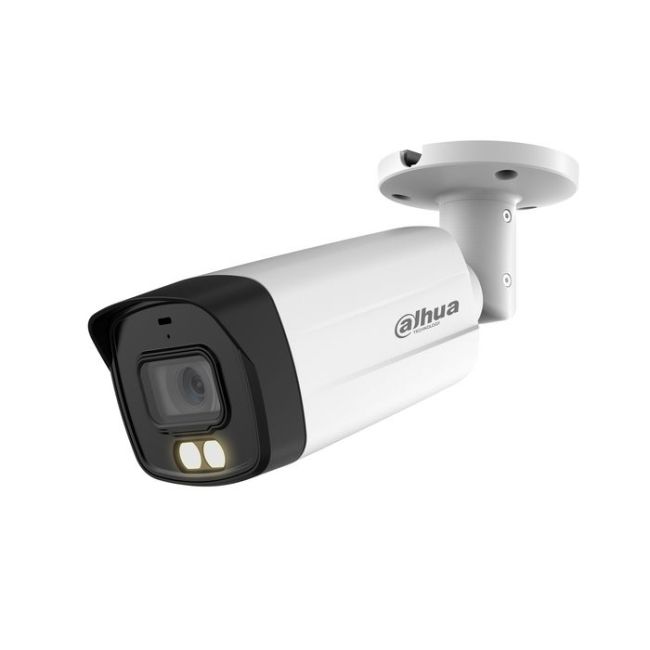

Dahua DH-HAC-HFW1509TMP-IL-A-0280B-S2 - 5MP Smart Dual Light HDCVI Bullet Camera
Product Features
- 5MP sensor, Smart Dual Light — IR and warm light illuminators
- Fixed 2.8mm lens
- Standard 12V DC power
- Illumination range up to 40m (IR and warm light)
- IP67 weatherproof, metal housing
Dahua DH-HAC-HFW1509TMP-IL-A-0280B-S2 — 5MP Smart Dual Light HDCVI Bullet Camera
The DH-HAC-HFW1509TMP-IL-A-0280B-S2 uses Dahua's Smart Dual Light system, switching between infrared and warm-light illumination depending on the scene, giving either extended monochrome IR range or colour recording from the same camera on standard 12V power.
Who is it for?
Sites wanting the flexibility of both IR and colour warm-light recording from one bullet camera without needing a PoC-capable recorder — works with any standard 12V HDCVI setup.
Key specification
| Resolution | 5MP (2880 x 1620) |
|---|---|
| Lens | 2.8mm fixed, F1.0 |
| Illumination | Smart IR & warm light, range up to 40m |
| WDR | 120dB true WDR |
| Power | 12V DC ±30%, max 5.7W |
| Protection | IP67, metal housing |
| Dimensions | 240.7mm x 90.7mm x 90.7mm, 0.7kg net |
What you will need
- A Dahua XVR recorder with a spare HDCVI channel
- RG59 coax and 12V power to the camera location
- A surveillance-grade hard drive sized to your retention needs
Frequently asked questions
What does Smart Dual Light mean?
The camera can switch between infrared illumination (longer range, monochrome) and warm white light (shorter range, colour) depending on the scene and settings.
Does this support Power over Coax?
No — this variant runs from a standard 12V DC supply. For PoC, see the DH-HAC-HFW1509TMP-IL-A-POC-0280B-S2.
Is it weatherproof?
Yes — IP67 rated, metal housing.
Browse the full Dahua range, all CCTV cameras or recorders. Need help choosing? Contact us, call 01902 902251, or visit the Wolverhampton trade counter.
| Product Code | DH-HAC-HFW1509TMP-IL-A-0280B-S2 |
|---|---|
| Manufacturer | Dahua |
| Max Resolution | 5MP |
| Lens Size | 2.8 mm |
| Lens Type | Fixed |
| Max. IR Range | Up to 40 m |
| Angle of adjustment | Pan: 0°~360° Tilt: 0°~90° Rotation: 0°~360° |
| WDR | 120dB |
| White Balance | Auto / Area white balance |
| Day & Night | Auto (ICR) / Color / B/W |
| Noise Reduction | 3D NR |
| BLC | BLC; HLC; WDR; HLC-Pro |
| Min. Illumination | 0.001 lux@F1.0 (Color, 30 IRE); 0 lux (Illuminator on) |
| Video Output | CVI/TVI/AHD/CVBS switchable via one BNC port |
| Protection Level, Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| Power | 12V DC ±30% |
| Dimensions | 240.7mm x 90.7mm x 90.7mm |
