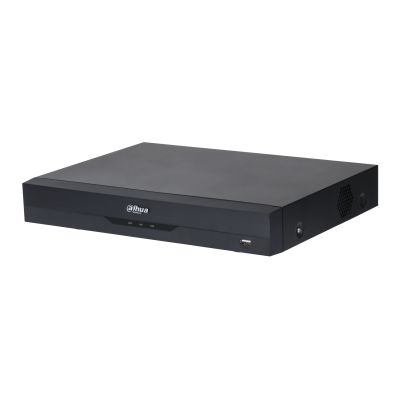

Dahua DH-XVR5108H-I3-8P - 8 Channel Penta-brid Mini 1U 1HDD WizSense DVR
Product Features
- 8-channel Penta-brid DVR with 8-channel HDCVI PoC camera power — power and video over one coax cable
- 1 x SATA HDD bay, up to 16TB
- 5M-N@20fps / 1080p@25fps analog encoding, up to 12 IP channels (up to 6MP)
- On-recorder AI: QuickPick 2.0, face recognition, perimeter protection, SMD
Dahua DH-XVR5108H-I3-8P — 8-Channel Penta-brid Mini 1U PoC DVR
The DH-XVR5108H-I3-8P is a Penta-brid recorder with 8-channel HDCVI PoC (Power over Coax) support, so compatible HDCVI cameras get power and video over the same coax cable. It also accepts up to 12 additional IP channels (up to 6MP), with a single HDD bay up to 16TB.
Who is it for?
PoC removes the need for a separate power run to each analog camera — useful where running new mains cable is impractical. The Penta-brid design also lets IP cameras join the same recorder for a mixed 8+ camera system.
Key specification
| Analog Channels | 8 x BNC, HDCVI/AHD/TVI/CVBS auto-detect, up to 5M-N@20fps or 1080p@25fps, 8-ch HDCVI PoC power |
|---|---|
| IP Channels | Up to 12 additional channels, up to 6MP |
| Storage | 1 x SATA HDD bay, up to 16TB |
| AI Features | 2-ch QuickPick 2.0, 2-ch face recognition, up to 4-ch perimeter protection, 8-ch SMD |
| Operating System | Embedded Linux, Web / Local GUI |
What you will need
- A surveillance-grade HDD (e.g. WD Purple or Seagate SkyHawk), up to 16TB
- PoC-compatible HDCVI cameras to use the power-over-coax feature, or any HDCVI/AHD/TVI/CVBS camera with separate power
- An HDMI or VGA monitor for setup and local viewing
Frequently asked questions
What is PoC and why does it matter?
Power over Coax sends both power and video down the same coax cable to compatible HDCVI cameras, avoiding a separate mains run to each camera.
Can I mix analog and IP cameras?
Yes — 8 analog BNC inputs plus up to 12 additional IP channels.
Do I need AI-enabled cameras for face recognition?
No — it runs on the recorder itself.
Browse the full Dahua range, our CCTV recorders range, contact us on 01902 902251, or visit our Wolverhampton trade counter.
| Product Code | DH-XVR5108H-I3-8P |
|---|---|
| Manufacturer | Dahua |
