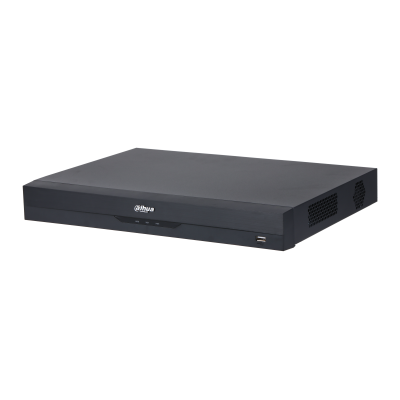

Dahua DH-XVR5216AN-I3-16P - 16 Channel Penta-brid 1U 2HDDs WizSense PoC DVR
Product Features
- 16-channel Penta-brid DVR with 16-channel HDCVI PoC camera power
- 2 x SATA HDD bays, up to 16TB each
- 5M-N/1080P analog encoding, up to 24 IP channels (up to 6MP)
- On-recorder AI: QuickPick 2.0, face recognition, perimeter protection, SMD
Dahua DH-XVR5216AN-I3-16P — 16-Channel Penta-brid PoC DVR
The DH-XVR5216AN-I3-16P adds 16-channel HDCVI PoC (Power over Coax) to the 16-channel Penta-brid platform — power and video over a single coax cable to compatible cameras — plus 2 SATA HDD bays (up to 16TB each) and up to 24 additional IP channels.
Who is it for?
PoC removes the need for separate power runs across a 16-camera analog installation, while still allowing IP cameras to join the same recorder. Suits larger sites retrofitting or extending an existing coax-cabled system.
Key specification
| Analog Channels | 16 x BNC, HDCVI/AHD/TVI/CVBS auto-detect, 5M-N/1080P, 16-ch HDCVI PoC power |
|---|---|
| IP Channels | Up to 24 additional channels, up to 6MP |
| Storage | 2 x SATA HDD bays, up to 16TB each |
| AI Features | 2-ch QuickPick 2.0, 2-ch face recognition, up to 4-ch perimeter protection, 16-ch SMD |
| Operating System | Embedded Linux, Web / Local GUI |
What you will need
- Up to two surveillance-grade HDDs (e.g. WD Purple or Seagate SkyHawk), up to 16TB each
- PoC-compatible HDCVI cameras for the 16 analog inputs to use power-over-coax
- An HDMI or VGA monitor for setup and local viewing
Frequently asked questions
What is PoC?
Power over Coax — power and video travel down the same coax cable to compatible HDCVI cameras, avoiding a separate mains run per camera.
Can I mix analog and IP cameras?
Yes — 16 analog BNC inputs plus up to 24 additional IP channels.
Why two HDD bays?
More storage headroom for a 16-camera system.
Browse the full Dahua range, our CCTV recorders range, contact us on 01902 902251, or visit our Wolverhampton trade counter.
| Product Code | DH-XVR5216AN-I3-16P |
|---|---|
| Manufacturer | Dahua |
