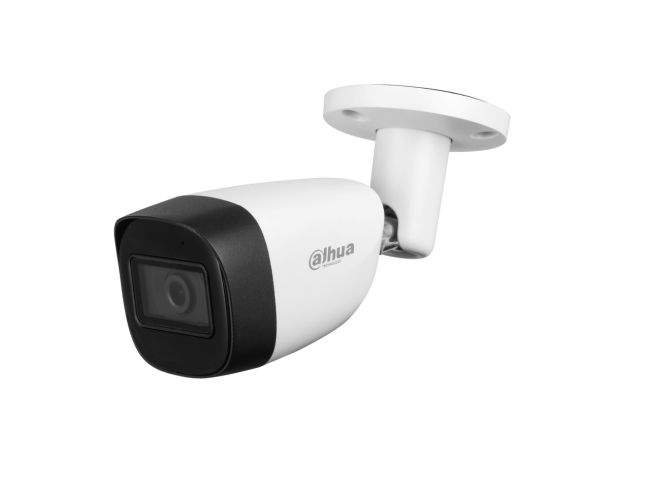

Dahua DH-HAC-HFW1500CMP-A-POC-S2 - 5MP HDCVI PoC Infrared Bullet CCTV Camera, 30m Night Vision, Built-in Mic, IP67 Waterproof
Product Features
- Dahua DH-HAC-HFW1500CMP-A-POC-S2 is a 5MP HDCVI PoC IR bullet CCTV camera.
- Power over Coax (CVI) or 12V DC.
- IR up to 30m; 0.005 lux low light.
- Built-in mic.
- IP67 metal casing.
Dahua DH-HAC-HFW1500CMP-A-POC-S2 — 5MP HDCVI PoC IR Bullet Camera
The Dahua DH-HAC-HFW1500CMP-A-POC-S2 (also written HAC-HFW1500CMP-A-POC-S2 or HAC-HFW1500CM-A-POC) is a 5MP HDCVI bullet camera that can be powered over the coax cable (PoC) from a compatible recorder, with IR night vision up to 30m, a built-in microphone and an IP67 metal casing.
Key features
- 5MP (2880 × 1620) 1/2.7" CMOS; 25 fps at 5MP.
- PoC (CVI only) or 12V DC ±30%.
- 0.005 lux at F1.6; IR up to 30m from 3 IR LEDs, Smart IR.
- DWDR, BLC, HLC, 2D NR.
- One-channel built-in mic.
- IP67 metal casing, -40 °C to +60 °C.
Technical specification
| Model | DH-HAC-HFW1500CMP-A-POC-S2 (PAL -S2 version of the datasheet model HAC-HFW1500CM-A-POC) |
|---|---|
| Image sensor | 1/2.7" CMOS, progressive |
| Max. resolution | 5MP, 2880 × 1620 |
| Frame rate | CVI: 5M@25 fps; 4M@25 fps; 1080P@25 fps (PAL). AHD/TVI: 4M@25 fps |
| Video output | CVI/TVI/AHD/CVBS selectable, one BNC port |
| Min. illumination | 0.005 lux at F1.6 (30IRE); 0 lux IR on |
| Lens | Fixed, F1.6; 2.8 mm or 3.6 mm — contact us for a specific lens |
| Field of view | 2.8 mm: H 111°; 3.6 mm: H 92° |
| IR | Up to 30 m, 3 IR LEDs, Smart IR |
| Day/night | Auto (ICR) |
| Image functions | DWDR, BLC, HLC, 2D NR |
| Audio | One-channel built-in mic |
| Power | PoC (CVI only, AF) / 12V DC ±30%; max 3.7 W |
| Operating temperature | -40 °C to +60 °C; less than 95% RH |
| Protection | IP67; metal casing |
| Dimensions | 166.6 mm × 69.7 mm × 70.0 mm |
| Weight | 0.33 kg net; 0.43 kg gross |
| Certifications | CE, FCC, UL |
Works with
- An HDCVI recorder supporting 5MP input; a PoC-capable XVR to power it over coax. See our range of DVRs and XVRs.
- Or a 12V DC power supply.
- The HAC-HDW1500TP-A-POC-0280B-S2 PoC eyeball camera.
Common questions
What does HDCVI mean?
HDCVI is Dahua's way of sending HD video over standard coax cable, so an analogue system can be upgraded without rewiring. See our guide to Dahua HDCVI cameras.
What is PoC?
Power over Coax: a PoC-capable Dahua XVR powers the camera through the same coax cable that carries the video (CVI mode only).
Does it record audio?
Yes: it has a one-channel built-in mic.
Which lens does it have?
Dahua lists 2.8 mm and 3.6 mm versions. Contact us for a specific lens.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more HD analogue cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-HAC-HFW1500CMP-A-POC-S2 |
|---|---|
| Manufacturer | Dahua |
| Built-in Mic | Yes |
| Protection Level | IP67 |
| Power Supply | 12V DC & PoC |
| Product Type | HDCVI Camera |
| Colour | White |
| Max Resolution | 5MP |
| Lens Type | Fixed |
| WDR | DWDR |
| Noise Reduction | 2D NR |
| Video Output | CVI/TVI/AHD/CVBS switchable |
| Protection Level, Ingress Protection | IP67 |
| Power | PoC / DC12V |
| Dimensions | 166.6mm x 69.7mm x 70.0mm |
