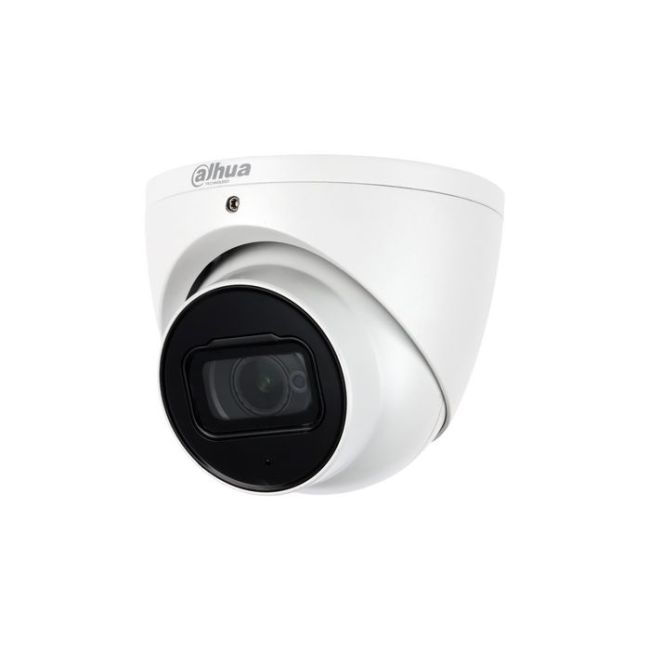

Dahua HAC-HDW1500TP-A-POC-0280B-S2 - 5MP HDCVI PoC Eyeball Camera, 2.8mm Lens
Product Features
- 5MP sensor, fixed 2.8mm lens
- Power over Coax (PoC) — power and video on the same cable, or standard 12V DC
- IR range up to 60m, Smart IR
- Multi-format output: CVI/TVI/AHD/CVBS switchable
- IP67 weatherproof, metal housing
Dahua HAC-HDW1500TP-A-POC-0280B-S2 — 5MP HDCVI PoC Eyeball Camera, 2.8mm Lens
The HAC-HDW1500TP-A-POC-0280B-S2 is a 5MP eyeball-style dome camera with a fixed 2.8mm wide-angle lens and Power over Coax (PoC) support — the camera can be powered down the same coax run as the video signal from a PoC-enabled HDCVI recorder, removing the need for a separate power cable.
Who is it for?
Installs where running a separate power cable to the camera is impractical — upgrading old analogue coax runs where only video cable exists, or reducing cabling and labour on a new install by combining power and video on one coax run.
Key specification
| Resolution | 5MP (2880 x 1620) |
|---|---|
| Lens | 2.8mm fixed, F1.6 |
| IR Range | Up to 60m, Smart IR |
| Power | PoC (CVI only) or 12V DC ±30%, max 5.2W |
| Video Output | CVI/TVI/AHD/CVBS switchable via one BNC |
| Protection | IP67, metal housing |
| Dimensions | Ø106mm x 69.0mm, 0.55kg net |
What you will need
- A PoC-enabled Dahua HDCVI recorder to power the camera down the coax, or a standard 12V supply
- RG59 coax to the camera location
- A surveillance-grade hard drive sized to your retention needs
Frequently asked questions
Do I need a separate power supply?
Not if your recorder supports PoC — the camera can be powered entirely over the coax. Without a PoC recorder, it also runs from a standard 12V DC supply.
What area does the 2.8mm lens cover?
A wide field of view suited to general area coverage rather than reading detail at distance.
Is it weatherproof?
Yes — IP67 rated, metal housing.
Browse the full Dahua range, all CCTV cameras or recorders. Need help choosing? Contact us, call 01902 902251, or visit the Wolverhampton trade counter.
| Product Code | HAC-HDW1500TP-A-POC-0280B-S2 |
|---|---|
| Manufacturer | Dahua |
| Max Resolution | 5MP |
| Lens Size | 2.8 mm |
| Lens Type | Fixed |
| Max. IR Range | Up to 60 m |
| Angle of adjustment | Pan: 0°~360° Tilt: 0°~78° Rotation: 0°~360° |
| White Balance | Auto / Manual |
| Day & Night | Auto (ICR) |
| Noise Reduction | 2D NR |
| BLC | BLC/HLC/DWDR |
| Min. Illumination | 0.005 Lux/F1.6, 30IRE, 0Lux IR on |
| Video Output | CVI/TVI/AHD/CVBS switchable via one BNC port |
| Protection Level, Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| Power | PoC (CVI only) / 12V DC ±30% |
| Dimensions | Ø106mm x 69.0mm |
