Dahua DH-HAC-HFW1809TLMP-A-LED - 8MP 4K Full-Colour HDCVI Bullet CCTV Camera, 40m Warm Light, F1.0, 120dB WDR, Built-in Mic, IP67
Product Features
- Dahua DH-HAC-HFW1809TLMP-A-LED is an 8MP 4K (3840 × 2160) full-colour HDCVI bullet CCTV camera.
- F1.0 lens and 2 warm lights up to 40m for colour images at night.
- 120dB WDR and 3D noise reduction.
- Built-in microphone.
- IP67, 12V DC.

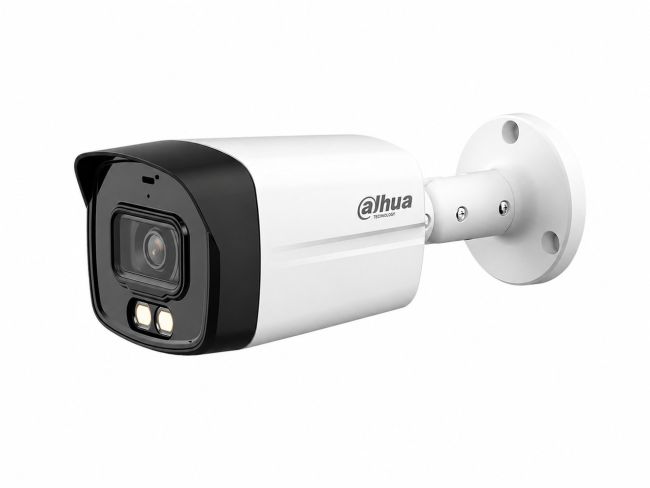

Dahua DH-HAC-HFW1809TLMP-A-LED — 8MP 4K Full-Colour HDCVI Bullet CCTV Camera
The Dahua DH-HAC-HFW1809TLMP-A-LED (also written HAC-HFW1809TLMP-A-LED or HAC-HFW1809TLM-A-LED) is an 8MP 4K full-colour HDCVI bullet camera from Dahua's Lite series. Instead of infrared it uses an F1.0 lens and two warm lights (up to 40m) so it records in colour around the clock. It has a built-in microphone (-A) and an IP67 rating.
Key features
- 8MP 4K (3840 × 2160) CMOS sensor.
- Full colour day and night: F1.0 aperture, 0.001 lux colour, 2 warm lights up to 40 m, Smart Light.
- CVI, TVI, AHD and CVBS output from one BNC port.
- 120dB WDR, BLC, HLC, HLC-Pro, 3D NR, electronic defog, 4x digital zoom.
- Built-in microphone.
- IP67; -40 °C to +60 °C; 12V DC.
Technical specification
| Model | DH-HAC-HFW1809TLMP-A-LED (PAL version of the datasheet model HAC-HFW1809TLM-A-LED) |
|---|---|
| Image sensor | 8MP CMOS, progressive |
| Max. resolution | 3840 × 2160 |
| Frame rate | CVI (PAL): 4K@15 fps, 5M@25 fps, 4M@25 fps; AHD and TVI: 4K@15 fps; CVBS: 960H |
| Video output | CVI / TVI / AHD / CVBS by one BNC port |
| Min. illumination | 0.001 lux at F1.0 (colour); 0 lux illuminator on |
| Lens | Fixed-focal, M12, F1.0; 2.8 mm or 3.6 mm (contact us for a specific lens) |
| Field of view | 2.8 mm: H 106°; 3.6 mm: H 85° |
| Illumination | 2 warm lights, up to 40 m, Smart Light |
| Day/night | Colour |
| Image functions | 120dB WDR, BLC, HLC, HLC-Pro, 3D NR, defog, 4x digital zoom, mirror, privacy masking (8 areas) |
| Audio | One channel built-in mic |
| Power | 12 VDC ±30%; max 6.9 W (LED on) |
| Operating temperature | -40 °C to +60 °C; < 95% RH |
| Protection | IP67 |
| Casing | Metal front cover, plastic rear barrel, metal bracket |
| Dimensions | 198.4 × 80.2 × 76.2 mm |
| Weight | 0.33 kg net; 0.49 kg gross |
| Installation | Wall, ceiling or vertical pole mount |
| Certifications | CE, FCC, UL |
Works with
- The full 4K signal needs a recorder that supports 8MP (4K) HDCVI input. See our range of DVRs and XVRs.
- A 12V DC power adapter (Dahua recommends one adapter per camera).
- The Dahua DH-HAC-HDW1809TP-A-LED-0280B is the 8MP full-colour turret.
Common questions
What does HDCVI mean?
HDCVI is Dahua's way of sending HD video over standard coax cable, so an analogue system can be upgraded without rewiring. See our guide to Dahua HDCVI cameras.
Does it record in colour at night?
Yes. It uses warm lights (up to 40 m) rather than IR, with an F1.0 lens rated to 0.001 lux in colour.
Does it have a microphone?
Yes, one channel built-in mic.
Which lens does it have?
Dahua lists 2.8 mm and 3.6 mm. Contact us for a specific lens.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more HD analogue cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-HAC-HFW1809TLMP-A-LED |
|---|---|
| Manufacturer | Dahua |
| Built-in Mic | Yes |
| Protection Level | IP67 |
| Power Supply | 12V DC |
| Product Type | HDCVI Camera |
| Colour | White |
| Max Resolution | 8MP (4K) |
| Lens Type | Fixed |
| WDR | 120dB WDR |
| Noise Reduction | 3D NR |
| Video Output | CVI/CVBS/AHD/TVI switchable |
| Protection Level, Ingress Protection | IP67 |
| Power | DC12V |
| Dimensions | 198.4mm x 80.2mm x 76.2mm |
