Dahua DH-IPC-HCBW8442P - 4MP WizMind Corner IP CCTV Camera, 135 Degree View, IR Night Vision, People Counting, IP67 IK10+
Product Features
- Dahua DH-IPC-HCBW8442P is a 4MP WizMind corner IP CCTV camera with a 1/1.8" sensor and 2.5 mm lens giving a 135 degree horizontal view.
- IR night vision up to 10 m, 140 dB WDR.
- Perimeter protection, people counting, queue management and heat map.
- Metal IP67 and IK10+ (50J) housing, powered by PoE, ePoE or 12 VDC.

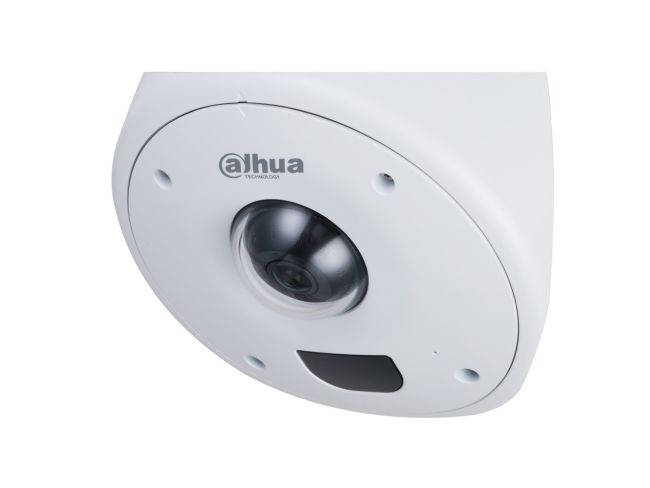

Dahua DH-IPC-HCBW8442P — 4MP WizMind Corner IP CCTV Camera
The Dahua DH-IPC-HCBW8442P (also written IPC-HCBW8442P; Dahua lists it as IPC-HCBW8442) is a 4MP WizMind AI corner network camera. It mounts into the corner of a room, so its 135 degree horizontal view covers the whole space without a separate bracket. It adds IR night vision, people counting and a metal IP67 / IK10+ housing.
Key features
- 1/1.8" 4MP progressive CMOS, 2688 × 1520 at up to 25/30 fps, 3 streams.
- Fixed 2.5 mm lens (F2.0): horizontal 135°, vertical 90°.
- 2 IR illuminators up to 10 m; 0.004 lux colour, 0.0004 lux B/W, 0 lux with illuminator on.
- 140 dB WDR, 3D NR, EIS and defog.
- Perimeter protection (tripwire, intrusion, fast moving) with human and vehicle classification; loitering, people gathering and parking detection.
- People counting (enter, leave, pass, in-area) and queue management, with heat map.
- Built-in microphone; 1 audio in / 1 out; 1 alarm in / 1 out; RS-485.
- 12 VDC, PoE (802.3af) or ePoE; IP67 and IK10+ (50J); metal casing.
Technical specification
| Model | DH-IPC-HCBW8442P (PAL variant of the datasheet model IPC-HCBW8442) |
|---|---|
| Series | WizMind 8, corner |
| Image sensor | 1/1.8" 4MP progressive CMOS |
| Max. resolution | 2688 × 1520 |
| Frame rate | Main 2688 × 1520 at 1-25/30 fps; sub D1; third 1080p |
| Lens | Fixed 2.5 mm, M12, F2.0 |
| Field of view | H 135°, V 90° |
| Adjustment | Vertical -10° to +10°; rotation 0° to 355° |
| Min. illumination | 0.004 lux@F2.0 colour; 0.0004 lux B/W; 0 lux illuminator on |
| Illumination | 2 IR, up to 10 m |
| WDR | 140 dB |
| Video compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream); Smart H.265+/H.264+ |
| Intelligence | Tripwire, intrusion, fast moving, loitering, people gathering, parking; abandoned/moving object; people counting; queue management; heat map |
| Audio | Built-in mic; 1 in, 1 out; G.711a, G.711Mu, G.726 |
| Alarm | 1 in, 1 out; RS-485 |
| Storage | Micro SD up to 256 GB; FTP; NAS |
| Network | RJ-45 10/100; ONVIF Profile S, G |
| Power | 12 VDC / PoE (802.3af) / ePoE; max 9.5 W (12 VDC), 11.5 W (PoE) |
| Protection | IP67; IK10+ (50J) |
| Operating temperature | -30 °C to +60 °C |
| Size and weight | 209.4 × 212.0 × 103.1 mm; 1365 g net; metal |
Works with
Common questions
What is a corner camera for?
It fits into the corner of a room and looks out across it with a 135° horizontal and 90° vertical view, with no bracket sticking out. That makes it suited to sites where a camera must be hard to grab or damage.
Is it vandal resistant?
Dahua rates the metal housing IP67 and IK10+ (50J).
Can it count people?
Yes. Dahua lists enter, leave and pass counting with yearly, monthly and daily reports, in-area counting and queue management, each with 4 rules, plus a heat map.
How does it see at night?
Two IR illuminators reach up to 10 m, and the camera records at 0 lux with them on.
How is it powered?
12 VDC, PoE (802.3af) or ePoE; up to 11.5 W on PoE.
Will it work with a recorder that is not Dahua?
It supports ONVIF Profile S and G, Milestone and Genetec. See our NVRs.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more IP cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-IPC-HCBW8442P |
|---|---|
| Manufacturer | Dahua |
| Protection Level | IP67, IK10+ |
| Power Supply | 12V DC, PoE, ePoE |
| Built-in Mic | Yes |
| Illuminator Type | IR LED |
| Product Type | IP Camera |
| Colour | Brown |
| Max Resolution | 4MP |
| Lens Type | Fixed |
