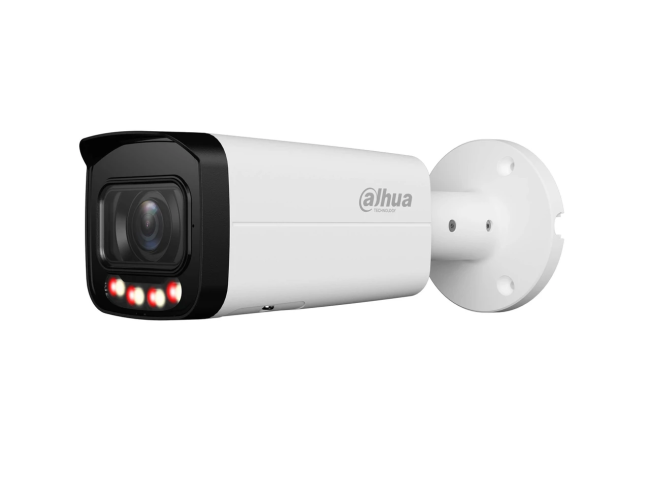

Dahua DH-IPC-HFW2849T-ZAS-IL - 8MP 4K Smart Dual Light WizSense Varifocal Bullet IP CCTV Camera, 2.7-13.5mm Motorised Lens, 60m Night Vision, Mic
Product Features
- Dahua DH-IPC-HFW2849T-ZAS-IL is an 8MP 4K (3840 × 2160) WizSense bullet IP CCTV camera with a 2.7-13.5 mm motorised varifocal lens.
- Smart Dual Light: IR up to 60 m and warm light up to 60 m.
- Intrusion and tripwire detection with human and vehicle classification; SMD Plus.
- Built-in microphone; 1 audio in/out and 1 alarm in/out.
- PoE (802.3af) or 12 VDC, IP67, Micro SD up to 256 GB.
Dahua DH-IPC-HFW2849T-ZAS-IL — 8MP 4K Smart Dual Light WizSense Varifocal Bullet IP CCTV Camera
The Dahua DH-IPC-HFW2849T-ZAS-IL (also written IPC-HFW2849T-ZAS-IL) is an 8MP 4K WizSense 2 Series bullet IP CCTV camera with a 2.7-13.5 mm motorised varifocal lens and long-range Smart Dual Light illumination up to 60 m. The motorised lens lets you set the view from wide to zoomed after installation. It picks out people and vehicles for intrusion and tripwire alerts, has a built-in microphone plus audio and alarm connections, and runs on PoE or 12 VDC. A good choice for car parks, yards and long boundaries where 4K detail is wanted.
Key features
- 8MP 1/2.7" CMOS sensor, 3840 × 2160 at up to 20 fps or 2688 × 1520 at up to 25/30 fps.
- 2.7-13.5 mm motorised varifocal lens, F1.5, horizontal field of view 114° to 32°.
- Smart Dual Light: IR up to 60 m and warm light up to 60 m from 4 multi-core lights; 0 lux with illuminator on.
- Perimeter protection (intrusion and tripwire) with human and vehicle classification; SMD Plus; smart search with a Dahua Smart NVR.
- Built-in microphone; 1 audio input, 1 audio output, 1 alarm input and 1 alarm output.
- 120 dB WDR; Smart H.265+ and Smart H.264+; Micro SD card up to 256 GB.
- 12 VDC or PoE (802.3af); IP67 (IK10 optional); operates from -30 °C to +60 °C.
Technical specification
| Model | DH-IPC-HFW2849T-ZAS-IL |
|---|---|
| Series | WizSense 2 Series, Smart Dual Illuminators |
| Image sensor | 1/2.7" CMOS |
| Max. resolution | 8MP, 3840 × 2160 |
| Frame rate | Main stream 3840 × 2160 at 1-20 fps, 2688 × 1520 at 1-25/30 fps; sub stream 704 × 576 at 1-25 fps |
| Lens | Motorised varifocal 2.7-13.5 mm, φ14 mount, F1.5 |
| Field of view | H 114°-32°; V 58°-17°; D 138°-36° |
| Close focus distance | 0.8 m |
| Minimum illumination | 0.008 lux colour (F1.5); 0.0008 lux black and white; 0 lux with illuminator on |
| Illumination | IR up to 60 m; warm light up to 60 m; auto or manual control |
| Pan, tilt, rotation | Pan 0°-360°; tilt 0°-90°; rotation 0°-360° |
| WDR | 120 dB |
| Video compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream only); Smart H.265+ and Smart H.264+ |
| Audio | Built-in microphone; 1 audio input and 1 audio output (RCA); G.711a, G.711Mu, G.726, PCM |
| Alarm | 1 input (wet contact, 5 mA 3-5 VDC); 1 output (wet contact, 300 mA 12 VDC) |
| Intelligence | IVS intrusion and tripwire with human and vehicle classification; SMD Plus; defocus detection |
| Storage | Micro SD card up to 256 GB; FTP and SFTP |
| Network | RJ-45 10/100 Base-T; ONVIF Profile S, G and T; CGI |
| Power supply | 12 VDC; PoE (802.3af) |
| Power consumption | Basic 2.6 W (12 VDC) or 3.1 W (PoE); maximum 10.2 W (12 VDC) or 12.7 W (PoE) |
| Protection | IP67; IK10 (optional) |
| Operating conditions | -30 °C to +60 °C; humidity up to 95%, non-condensing |
| Casing | Metal; 238.5 mm × 90.7 mm × 90.7 mm |
| Net weight | 0.76 kg |
| Certifications | CE-LVD EN62368-1; CE-EMC (Directive 2014/30/EU) |
Works with
- Dahua DH-PFM900-E-V2 integrated mount tester
- The 6MP version (DH-IPC-HFW2649T-ZAS-IL)
- The fixed-lens 8MP bullet (DH-IPC-HFW2849SP-S-IL-0360B)
Common questions
Is it a 4K camera?
Yes. It records up to 3840 × 2160 (8MP) at up to 20 fps, or 2688 × 1520 at up to 25/30 fps.
What does the varifocal lens do?
The 2.7-13.5 mm motorised lens can be zoomed and focused remotely, from a 114° wide view to a 32° narrow view, so you can frame the scene after mounting.
How does it see at night?
Its 4 multi-core IR and warm lights reach up to 60 m. Smart Dual Light lets it switch between IR and warm light so events can be recorded in colour. See our Smart Dual Light guide and WizSense guide.
Is it waterproof?
Yes. Dahua lists IP67 protection (IK10 optional) and an operating range of -30 °C to +60 °C.
How is it powered, and will it work with a recorder that is not Dahua?
It runs on PoE (802.3af) or 12 VDC and uses up to 12.7 W on PoE. It supports ONVIF Profile S, G and T, so it can be added to compatible third-party recorders.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more IP cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-IPC-HFW2849T-ZAS-IL |
|---|---|
| Manufacturer | Dahua |
| AI Function | IVS (Perimeter Protection) |
| Protection Level | IP67 |
| Power Supply | 12V DC, PoE |
| Illumination Distance | 31–60m |
| WDR | 120dB |
| Built-in Mic | Yes |
| Illuminator Type | Smart Dual Light |
| Product Type | IP Camera |
| Colour | Brown |
| Max Resolution | 8MP (4K) |
| Lens Type | Motorized Zoom |
