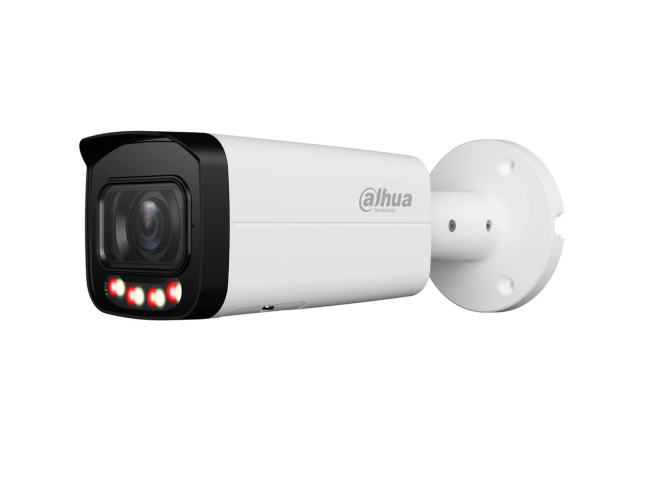

Dahua DH-IPC-HFW3649T-ZS-IL - 6MP 3K Smart Dual Light WizSense Vari-focal Bullet IP CCTV Camera, 2.7-13.5mm Motorised Lens, 60m Night Vision
Product Features
- Dahua DH-IPC-HFW3649T-ZS-IL is a 6MP 3K WizSense AI vari-focal bullet IP CCTV camera with Smart Dual Light.
- Motorised 2.7-13.5 mm lens, electronic image stabilisation.
- IR and warm light up to 60 m.
- Perimeter protection with human and vehicle classification, SMD 4.0, face detection, AcuPick.
- Built-in mic, IP67 metal housing, PoE or 12 VDC.
Dahua DH-IPC-HFW3649T-ZS-IL — 6MP 3K Smart Dual Light WizSense Vari-focal Bullet IP CCTV Camera
The Dahua DH-IPC-HFW3649T-ZS-IL (also written IPC-HFW3649T-ZS-IL) is a 6MP 3K WizSense vari-focal bullet IP CCTV camera with a motorised 2.7 mm to 13.5 mm lens and Smart Dual Light: IR night vision stays on until a target appears, then the warm light switches on for full-colour video, up to 60 m. It classifies humans and vehicles for perimeter protection, has a built-in microphone, electronic image stabilisation and an IP67 metal housing, and runs on PoE or 12 VDC. This is the -ZS version without the external audio and alarm ports of the -ZAS model. Our Smart Dual Light guide and WizSense guide explain the technology.
Key features
- 6MP (3288 × 1850) at up to 25/30 fps with H.265 and Super AI Coding.
- Motorised vari-focal 2.7-13.5 mm lens, F1.4; horizontal view 114° to 32°.
- Smart Dual Light: 4 multi-core (IR + warm) lights, IR and warm light each up to 60 m.
- Perimeter protection: intrusion and tripwire with human and vehicle classification, stay and loitering detection; SMD 4.0; full-image face detection; AcuPick.
- Electronic image stabilisation (EIS); 120 dB WDR.
- Built-in mic; Micro SD up to 512 GB.
- IP67 metal housing (IK10 optional); 12 VDC or PoE (802.3af).
Technical specification
| Model | DH-IPC-HFW3649T-ZS-IL |
|---|---|
| Series | WizSense 3, Smart Dual Light |
| Image sensor | 1/2.7" CMOS |
| Max. resolution | 3288 (H) × 1850 (V) |
| Frame rate | Main stream 3288 × 1850 at 1-25/30 fps; sub and third streams 1920 × 1080 at 1-25/30 fps |
| Lens | Motorised vari-focal 2.7-13.5 mm, φ14 mount, F1.4 |
| Field of view | H 114°-32°; V 58°-17°; D 138°-36° |
| Close focus distance | 0.1 m |
| Min. illumination | 0.005 lux at F1.4 (colour, 30 IRE); 0.0005 lux at F1.4 (B/W, 30 IRE); 0 lux with illuminator on |
| Illumination | IR up to 60 m; warm light up to 60 m; 4 multi-core (IR + warm) lights |
| WDR | 120 dB |
| Image stabilisation | Electronic (EIS) |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only); Super AI Coding |
| Intelligence | IVS (intrusion, tripwire, stay, loitering) with human and vehicle classification; SMD 4.0; face detection; AcuPick; AI SSA |
| Audio | Built-in mic; PCM, G.711a, G.711Mu, G.726, G.723 |
| Storage | Micro SD up to 512 GB; FTP, SFTP, NAS |
| Network | RJ-45 10/100 Base-T; ONVIF Profile S, G, T and M |
| Power supply | 12 VDC (±30%); PoE (802.3af) |
| Power consumption | Basic 3.8 W (12 VDC), 5.3 W (PoE); max 9.9 W (12 VDC), 12.5 W (PoE) |
| Operating conditions | -30 °C to +60 °C; ≤95% RH non-condensing |
| Protection | IP67; IK10 (optional, IEC 62262:2002) |
| Casing / dimensions / weight | Metal; 238 × 90.7 × 90.7 mm; 835 g net |
Works with
- Dahua DH-PFA130-E junction box
- Dahua DH-PFA151 corner mount bracket
- Dahua DH-PFA152-E pole mount bracket
- Dahua DH-PFM900-E-V2 integrated mount tester
- The -ZAS version with audio and alarm ports (DH-IPC-HFW3649TP-ZAS-IL-27135)
Common questions
How far can it see at night?
IR and warm light each reach up to 60 m, and it works at 0 lux with the illuminator on. With Smart Dual Light the warm light comes on when a target appears so the event is recorded in colour. See our Smart Dual Light guide.
Can I zoom the lens remotely?
Yes. It has a motorised 2.7-13.5 mm vari-focal lens, from 114° down to 32° horizontal.
What is the difference between -ZS-IL and -ZAS-IL?
Both have a built-in mic. The Dahua -ZAS-IL lists extra audio and alarm ports; this -ZS-IL datasheet lists none.
What does WizSense mean?
WizSense is Dahua's AI range focused on humans and vehicles. See our WizSense guide.
How is it powered?
12 VDC (±30%) or PoE (802.3af), up to 12.5 W on PoE. It supports ONVIF Profile S, G, T and M.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more IP cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-IPC-HFW3649T-ZS-IL |
|---|---|
| Manufacturer | Dahua |
| AI Function | SMD 4.0, AcuPick |
| Protection Level | IP67 |
| Power Supply | 12V DC, PoE |
| Illumination Distance | 31–60m |
| WDR | 120dB |
| Built-in Mic | Yes |
| Illuminator Type | Smart Dual Light |
| Product Type | IP Camera |
| Colour | Brown |
| Max Resolution | 6MP |
| Lens Type | Motorized Zoom |
