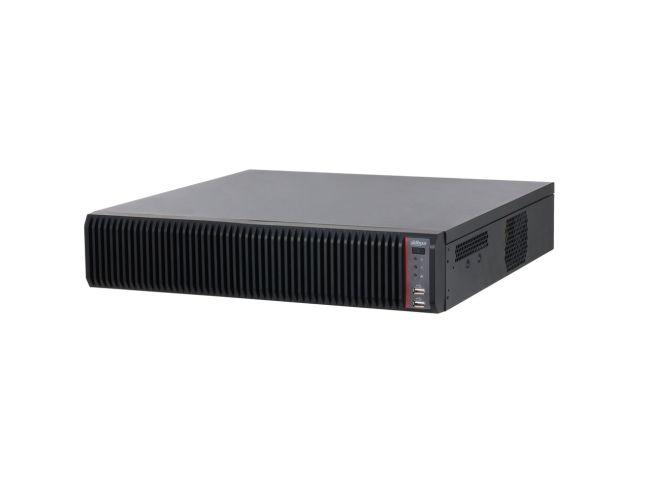

Dahua DHI-IVSS7108-H-V2 - 128 Channel Intelligent Video Surveillance Server, IVSS CCTV Recorder, 8 HDD Bays, RAID, 4 HDMI, 8K Output, 2U
Product Features
- Dahua DHI-IVSS7108-H-V2 is a 128 channel Intelligent Video Surveillance Server (IVSS) for IP cameras up to 32MP.
- 8 SATA bays (up to 20TB each) with RAID 0/1/5/6/10/50/60.
- 768 Mbps incoming, recording and outgoing bandwidth; 4 x Gigabit network ports.
- 4 HDMI (HDMI 1 up to 4K or 8K) and 1 VGA output; 2U rack or desktop.
Dahua DHI-IVSS7108-H-V2 — 128 Channel Intelligent Video Surveillance Server
The Dahua DHI-IVSS7108-H-V2 (also written IVSS7108/H-V2) is a 128 channel Intelligent Video Surveillance Server: a 2U enterprise CCTV recorder for up to 128 IP cameras of up to 32MP, with 8 SATA bays, RAID and N+M clustering. It manages AI events from compatible Dahua AI cameras, including face detection and recognition, video metadata, IVS and licence plate comparison. For larger sites see the 256 channel DHI-IVSS7116.
Key features
- 128 channels, IP cameras up to 32MP.
- 768 Mbps incoming, recording and outgoing bandwidth (512 Mbps with 8K output enabled).
- 8 SATA bays, max. 20 TB per HDD; RAID 0/1/5/6/10/50/60; iSCSI network disk; 1 eSATA.
- AI by camera: face detection and recognition, video metadata and IVS (80 × 2 MP or 60 × 4 MP channels), licence plate comparison, people counting and more.
- 4 HDMI (HDMI 1 up to 4K or 8K) and 1 VGA output.
- 4 RJ-45 10/100/1000 Mbps ports; N+M cluster support.
Technical specification
| Model | DHI-IVSS7108-H-V2 (IVSS7108/H-V2) |
|---|---|
| Dahua description | 128CH 2U Intelligent Video Surveillance Server |
| Series | IVSS71 |
| Main processor | 64-bit multi-core processor; embedded Linux |
| Channels | 128 |
| Network bandwidth | 768 Mbps incoming, recording and outgoing; 512 Mbps with 8K output enabled |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p |
| Decoding capability | Up to 1 × 32 MP@30 fps, 7 × 8 MP@30 fps, 14 × 4 MP@30 fps or 28 × 1080p@30 fps |
| Video compression | Smart H.265+; H.265; Smart H.264+; H.264 |
| AI by camera | Face detection; face recognition; video metadata; IVS; licence plate comparison; people counting; queue alarm; smoking and call detection; SMD |
| Licence plate database | 50 plate databases with 500,000 plate numbers; allowlist and blocklist |
| Video diagnosis | 1-channel tour detection, 13 detection items |
| Cluster | N+M |
| Video output | 4 HDMI (HDMI 1 supports 4K or 8K), 1 VGA |
| Interoperability | ONVIF (Profile S, G, T); CGI; SDK |
| Disk interface | 8 slots, SATA, max. 20 TB per HDD; 1 eSATA |
| RAID | RAID 0/1/5/6/10/50/60 |
| Network port | 4 RJ-45 10/100/1000 Mbps |
| Alarm / audio | 16 alarm in, 8 out; audio 1 in, 2 out |
| USB | 2 rear USB 3.0, 2 front USB 2.0 |
| Power supply | Single supply, 100–240 VAC, 50–60 Hz |
| Power consumption | ≤38 W without HDD; ≤105 W with all HDDs |
| Operating temperature | 0 °C to +45 °C |
| Dimensions | Chassis 439.7 × 446.2 × 89.0 mm (W × L × H), 2U |
| Installation | Desktop; rack |
| Net weight | 7.66 kg |
Works with
- Dahua DHI-IVSS7116, the 256 channel 16-bay IVSS
- Western Digital WD Purple WD82PURZ 8TB surveillance hard drive
What you will need
- Hard drives for the 8 SATA bays (max. 20 TB each). Contact us for a multi-drive quote; the Hard Drive option on this page adds one surveillance drive.
- IP cameras and a network/PoE switch infrastructure; this server has no PoE ports.
- A 19-inch rack (2U) or desktop space, and HDMI or VGA monitors.
Common questions
What is an IVSS?
An Intelligent Video Surveillance Server is Dahua's enterprise recorder class. The IVSS7108/H-V2 records up to 128 channels and manages AI events from Dahua AI cameras.
Does it support RAID?
Yes: RAID 0, 1, 5, 6, 10, 50 and 60, with 8 disk groups and iSCSI network disks.
Can it output 8K?
Yes. HDMI 1 supports 4K or 8K output; with 8K enabled, bandwidth is 512 Mbps.
How many monitors can I connect?
Four HDMI outputs and one VGA; VGA 1 and HDMI 1 show the same video source.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more CCTV recorders, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DHI-IVSS7108-H-V2 |
|---|---|
| Manufacturer | Dahua |
| HDD Bays | 8 |
| Max IP Camera Resolution | 32MP |
| PoE Ports | 0 |
| AI Function | IVS (Perimeter Protection), Face Detection, Face Recognition, Video Metadata |
| Product Type | Video Management & Storage |
| Max No. of Channels | 128 ch |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264 |
| Recording Resolution | Up to 32MP |
| Display | 4 x HDMI (HDMI 1 up to 4K/8K), 1 x VGA |
| Storage Capacity | 8 x SATA, up to 20TB each, RAID 0/1/5/6/10/50/60 |
| Power | 100-240 VAC; <=38W (without HDD) |
| Dimensions | 439.7 x 446.2 x 89.0 mm (W x L x H), 2U |
