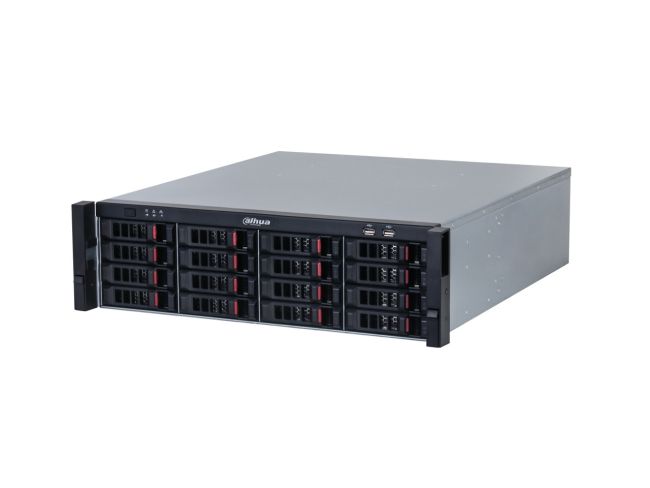

Dahua DHI-IVSS7116 - 256 Channel Intelligent Video Surveillance Server, IVSS CCTV Recorder, 16 HDD Bays, RAID, 4 HDMI, 3U
Product Features
- Dahua DHI-IVSS7116 is a 256 channel Intelligent Video Surveillance Server (IVSS) for IP cameras up to 32MP.
- 16 hot-swap SATA bays (up to 20TB each) with RAID 0/1/5/6/10/50/60.
- 1280 Mbps incoming, recording and outgoing bandwidth; 4 x 2.5 GbE network ports.
- 4 HDMI (HDMI 1 up to 4K) and 1 VGA output; 3U rack or desktop.
Dahua DHI-IVSS7116 — 256 Channel Intelligent Video Surveillance Server
The Dahua DHI-IVSS7116 (also written IVSS7116) is a 256 channel Intelligent Video Surveillance Server: a 3U enterprise CCTV recorder for up to 256 IP cameras of up to 32MP, with 16 hot-swap SATA bays, RAID and N+M clustering. It manages and searches AI events from compatible Dahua AI cameras: face detection and recognition, video metadata, IVS and licence plate comparison.
Key features
- 256 channels, IP cameras up to 32MP.
- 1280 Mbps incoming, recording and outgoing bandwidth.
- 16 SATA bays, max. 20 TB per HDD, hot swapping; RAID 0/1/5/6/10/50/60; iSCSI network disk.
- AI by camera: face detection and recognition (160 × 2 MP or 80 × 4 MP channels), video metadata, IVS, licence plate comparison and more.
- Face database: 50 face databases with 500,000 face pictures in total.
- 4 HDMI (HDMI 1 up to 4K) and 1 VGA output.
- 4 RJ-45 10/100/1000/2500 Mbps ports, with optional 2 × 10 GbE optical ports.
- N+M cluster support.
Technical specification
| Model | DHI-IVSS7116 |
|---|---|
| Dahua description | 256CH 3U Intelligent Video Surveillance Server |
| Series | IVSS71 |
| Main processor | 64-bit multi-core processor |
| Channels | 256 |
| Network bandwidth | 1280 Mbps incoming, recording and outgoing |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p |
| Decoding capability | Up to 2 × 32 MP@30 fps, 8 × 8 MP@30 fps, 16 × 4 MP@30 fps or 32 × 1080p@30 fps |
| Video compression | Smart H.265+; H.265; Smart H.264+; H.264 |
| AI by camera | Face detection; face recognition; video metadata (human, vehicle, non-motor vehicle); IVS; licence plate comparison; people counting; SMD and more |
| Face database capacity | 50 face databases with 500,000 face pictures in total |
| License plate database | 50 plate databases with 500,000 plate numbers; allowlist and blocklist |
| Cluster | N+M |
| Video output | 4 HDMI (HDMI 1 supports 4K), 1 VGA |
| Interoperability | ONVIF (Profile S, G, T); CGI; SDK |
| Disk interface | 16 slots, SATA, max. 20 TB per HDD, hot swapping; 1 eSATA |
| RAID | RAID 0/1/5/6/10/50/60 |
| Network port | 4 RJ-45 10/100/1000/2500 Mbps; optional 2 × 10 GbE optical |
| Alarm | 16 inputs, 8 outputs |
| USB | 2 rear USB 3.0, 2 front USB 2.0 |
| Power supply | Single supply, 100–127/200–240 VAC, 50/60 Hz |
| Power consumption | ≤150 W without HDD; ≤250 W with all HDDs |
| Operating temperature | 0 °C to +45 °C |
| Dimensions | Chassis 444.8 mm × 495.0 mm × 133.2 mm (W × D × H), 3U |
| Installation | Desktop; rack |
| Net weight | 20.05 kg |
Works with
- Dahua DHI-NVR5864-XI/Pro, a 64 channel 8-bay WizMind NVR for smaller sites
- Western Digital WD Purple WD82PURZ 8TB surveillance hard drive
What you will need
- Hard drives for the 16 hot-swap SATA bays (Dahua supports enterprise-grade CMR drives, max. 20 TB each). Contact us for an enterprise drive quote; the Hard Drive option on this page adds one surveillance drive.
- IP cameras and a network/PoE switch infrastructure; this server has no PoE ports.
- A 19-inch rack (3U) or desktop space, and HDMI or VGA monitors.
Common questions
What is an IVSS?
An Intelligent Video Surveillance Server is Dahua's enterprise recorder class. The IVSS7116 records up to 256 channels and manages AI events from Dahua AI cameras, such as face recognition, video metadata and licence plate comparison.
Does it support RAID?
Yes: RAID 0, 1, 5, 6, 10, 50 and 60, with 16 disk groups and iSCSI network disks.
How many monitors can I connect?
Four HDMI outputs (HDMI 1 supports 4K) and one VGA; VGA 1 and HDMI 1 show the same video source.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more CCTV recorders, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DHI-IVSS7116 |
|---|---|
| Manufacturer | Dahua |
| HDD Bays | 16 |
| Max IP Camera Resolution | 32MP |
| PoE Ports | 0 |
| AI Function | IVS (Perimeter Protection), Face Detection, Face Recognition, Video Metadata |
| Product Type | Video Management & Storage |
| Max No. of Channels | 256 ch |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264 |
| Recording Resolution | Up to 32MP |
| Display | 4 x HDMI (HDMI 1 up to 4K), 1 x VGA |
| Storage Capacity | 16 x SATA hot-swap, up to 20TB each, RAID 0/1/5/6/10/50/60 |
| Power | 100-127/200-240 VAC; <=150W (without HDD) |
| Dimensions | 444.8 x 495.0 x 133.2 mm (W x D x H), 3U |
