Dahua DHI-MNVR4208-GFWI - 8 Channel AI Mobile NVR with PoE, Vehicle CCTV Recorder, 4G, Wi-Fi, GPS, DSM, ANPR, 2 x 2.5in HDD
Product Features
- Dahua DHI-MNVR4208-GFWI is an 8 channel AI mobile video recorder for vehicles, with 8 PoE ports for IP cameras.
- 4G (LTE), 2.4 GHz Wi-Fi and GPS/GLONASS positioning.
- AI: driver status monitoring (DSM), face recognition and ANPR.
- 2 x 2.5-inch HDD/SSD (up to 2TB each) plus SD card; 6-36 VDC input.
Dahua DHI-MNVR4208-GFWI — 8 Channel AI Mobile NVR with PoE

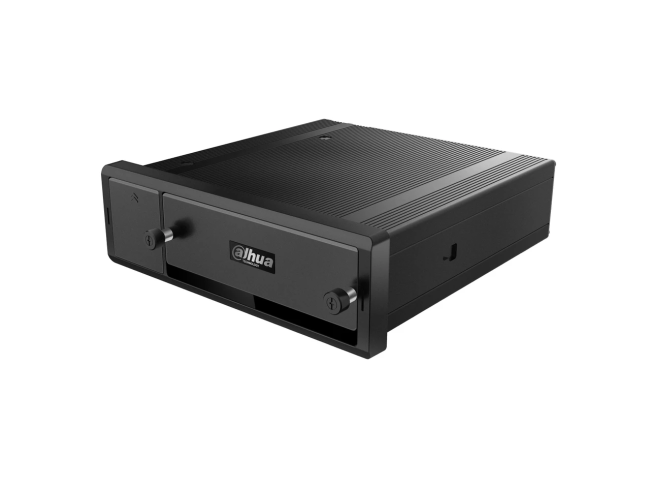

The Dahua DHI-MNVR4208-GFWI (also written MNVR4208-GFWI) is an 8 channel AI mobile video recorder: a vehicle CCTV recorder for buses, coaches, trucks and fleet vehicles, taking eight IP cameras on built-in PoE ports. It has 4G, Wi-Fi and GPS/GLONASS, a gyroscope for driving-event alarms, and on-board AI for driver status monitoring, face recognition and ANPR.
Key features
- 8 IP camera channels via PoE (two groups of four, 36 W per group; max. 25.4 W per port).
- 1080P encoding, H.265/Smart H.265/H.264/Smart H.264, dual-stream.
- 4G LTE, 2.4 GHz Wi-Fi (802.11 b/g/n) and GPS/GLONASS.
- DSM: drowsy driving, distraction, calling, no driver, IR-blocking sunglasses, smoking, lens tampering and unbelted alarms.
- Face recognition and ANPR (plate, vehicle colour and brand).
- Gyroscope alarms for rollover, collision, rapid speed-up, sharp braking and rapid turns.
- 2 × 2.5-inch HDD/SSD bays (up to 2 TB each) plus SD card up to 256 GB.
- Wide 6-36 VDC input; -30 °C to +70 °C operation; E-mark and EN50155.
Technical specification
| Model | DHI-MNVR4208-GFWI |
|---|---|
| Dahua description | 8-Ch AI Mobile Video Recorder with PoE |
| IP camera input | 8 channels via PoE; 36 W per group (ch1-4, ch5-8); max. 25.4 W per port |
| Video compression | H.265; Smart H.265; H.264; Smart H.264 |
| Encoding capacity | 1080P/720P/960H/D1/CIF; sub stream up to D1 |
| Frame rate | PAL 1-25 fps; NTSC 1-30 fps |
| Video output | 1 CVBS, 1 VGA, 1 HDMI (800×600/1280×1024) |
| Display split | 1/4/8/9 |
| Wi-Fi | 2.4 GHz, 802.11 b/g/n |
| Positioning | GPS/GLONASS |
| Interoperability | ONVIF (Profile S, G, T) |
| AI | DSM; face attribute detection and face comparison; ANPR (plate, vehicle colour, vehicle brand) |
| Storage | 2 × 2.5-inch HDD/SSD (SATA), up to 2 TB each; 1 SD card up to 256 GB |
| Alarm | 9 inputs (8 local, 1 pulse), 2 outputs (1 relay, 1 controllable 12 VDC 0.5 A) |
| Interfaces | 4 RS-232, 2 RS-485, 1 CAN, 3 USB 2.0, 1 × 100M/1000M RJ-45 |
| Power supply | 6-36 VDC |
| Power consumption | 11.1 W (without peripherals); low power <0.1 W |
| Operating temperature | -30 °C to +70 °C |
| Dimensions | 180 mm × 190 mm × 50 mm |
| Gross weight | 2.93 kg (with packaging) |
| Certifications | CE/FCC/E-mark/EN50155 |
Works with
What you will need
- One or two 2.5-inch SATA HDDs or SSDs (up to 2 TB each), and/or an SD card up to 256 GB. Contact us for suitable drives.
- Up to 8 IP cameras powered from the PoE ports, ideally vehicle-rated mobile cameras.
- A 4G SIM card for remote access, and vehicle power wiring (6-36 VDC, ACC).
Common questions
What is an MNVR?
A mobile network video recorder: an NVR built for vehicles, with wide-voltage power, shock-tolerant 2.5-inch drive bays, 4G and GPS for fleet tracking.
What does DSM do?
Driver status monitoring raises alarms for drowsy or distracted driving, phone calls, no driver, IR-blocking sunglasses, smoking, lens tampering and an unfastened seatbelt.
Can I use 3.5-inch hard drives?
No. Dahua lists 2 × 2.5-inch HDD/SSD (SATA), up to 2 TB each.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more CCTV recorders, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DHI-MNVR4208-GFWI |
|---|---|
| Manufacturer | Dahua |
| HDD Bays | 2 |
| PoE Ports | 8 |
| AI Function | Face Recognition, ANPR |
| Video Output | 1 VGA/1 HDMI |
| Product Type | Mobile CCTV |
| Max No. of Channels | 8 ch |
| Video Compression | H.265; Smart H.265; H.264; Smart H.264 |
| Recording Resolution | Up to 1080P |
| Display | 1 x HDMI, 1 x VGA, 1 x CVBS |
| Storage Capacity | 2 x 2.5in HDD/SSD, up to 2TB each; SD up to 256GB |
| Power | 6-36 VDC, 11.1W (without peripherals) |
| Dimensions | 180 x 190 x 50 mm |
