Dahua DHI-NVR4116-EI — 16 Channel NVR

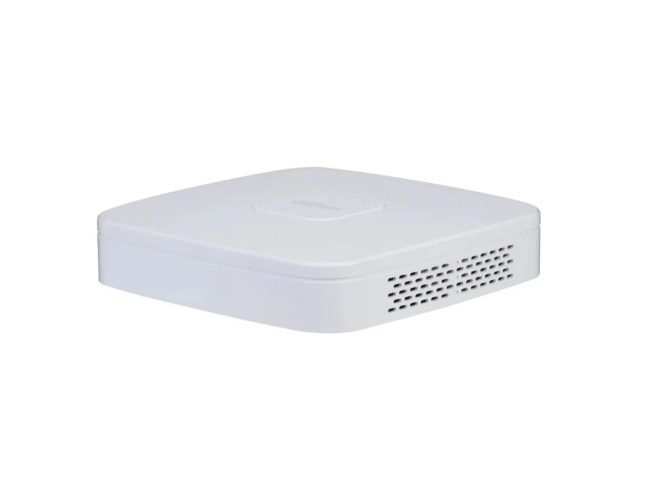

The Dahua DHI-NVR4116-EI (also written NVR4116-EI) is a 16 channel WizSense AI NVR: a network video recorder, also called a CCTV recorder or security camera recorder, for up to sixteen IP cameras of up to 16MP. It belongs to Dahua's WizSense NVR series and runs face detection and recognition, perimeter protection and SMD Plus on the recorder itself. It has one SATA bay (up to 20 TB), 4K HDMI and VGA output, a gigabit network port and no built-in PoE ports. See the wider Dahua WizSense range.

Key features

• 16 channels, IP cameras up to 16MP.
• 256 Mbps incoming, recording and outgoing bandwidth with AI disabled (180 Mbps with AI enabled).
• AI by recorder: 1-channel face detection and recognition (up to 10 face databases and 20,000 face images), 2-channel perimeter protection and 4-channel SMD Plus.
• AI by camera (with compatible cameras): face detection and recognition, perimeter protection, SMD, ANPR, people counting, stereo analysis and heat map.
• Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG.
• 1 SATA port, up to 20 TB; 1 HDMI output up to 3840 × 2160 (4K) and 1 VGA output.
• ONVIF 23.12 (Profile T, S and G) and third-party camera access.

Technical specification

Works with

• Dahua DHI-NVR4116HS-EI, a compact 16 channel WizSense NVR
• Dahua DHI-NVR5216-16P-EI2, a 16 channel NVR with 16 PoE ports
• Western Digital WD Purple WD10PURZ 1TB surveillance hard drive
• Western Digital WD Purple WD40PURZ 4TB surveillance hard drive
• Western Digital WD Purple WD82PURZ 8TB surveillance hard drive

What you will need

• A surveillance-grade hard drive (1 SATA bay, up to 20 TB): choose one from the Hard Drive option on this page, or fit your own.
• IP cameras, plus a PoE switch or separate power supplies for them, as this recorder has no PoE ports.
• An HDMI or VGA monitor for setup and local viewing.

Common questions

What does WizSense mean on this recorder?

Dahua describes WizSense as a series of AI products that use an independent AI chip and deep learning algorithms and focus on humans and vehicles. Read more in our guide to Dahua WizSense.

Does the DHI-NVR4116-EI have PoE ports?

No. It has one 10/100/1000 Mbps RJ-45 network port, so the cameras need a PoE switch or their own power supplies.

What resolution of IP camera can it record?

Cameras up to 16MP. With AI disabled it decodes up to 16 × 1080p@30 fps; with AI enabled up to 16 × 720p@30 fps.

How much storage can I fit?

One SATA port, up to 20 TB. Dahua notes that the maximum HDD capacity varies with environment temperature. Choose a hard drive from the Hard Drive option on this page, or choose recorder only.

Full manufacturer specification: Dahua product page
