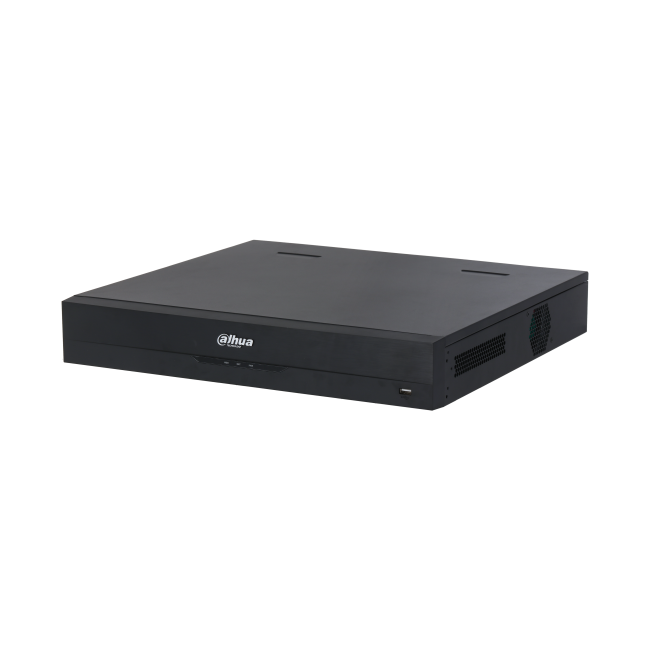

Dahua DHI-NVR5432-16P-EI - 32 Channel 16PoE 1.5U WizSense AI Network Video Recorder
Product Features
- 32-channel 1.5U WizSense NVR with 16 built-in PoE ports (150 W total, ePoE on ports 1-8)
- IP cameras up to 32MP; 384 Mbps incoming bandwidth
- AI by recorder: 2-ch face detection and recognition, 4-ch perimeter protection, 8-ch SMD Plus; AcuPick with AI cameras
- 4 SATA HDD bays, up to 20TB each, plus eSATA
- 2 x HDMI (up to 8K) and 2 x VGA outputs
Dahua DHI-NVR5432-16P-EI: 32 channel 16PoE WizSense NVR
The DHI-NVR5432-16P-EI is a 32-channel network video recorder from Dahua's WizSense NVR series. It has four hard-drive bays and 16 built-in PoE ports in a 1.5U rack case. It takes IP cameras up to 32MP. The recorder runs face recognition, perimeter protection and SMD Plus itself. With AI cameras it adds AcuPick search, metadata, ANPR and PPE detection. It uses Dahua's NVR NEXT interface. See the wider Dahua WizSense range.
Who is it for?
It suits medium and large sites such as warehouses, schools, retail parks and offices. Up to 16 cameras plug straight into the recorder, and more can be added through a switch. Four drive bays give long retention.
Key specification
| Channels | 32 IP channels, cameras up to 32MP |
|---|---|
| Bandwidth | 384 Mbps incoming / recording / outgoing (AI off); 200 Mbps (AI on) |
| Decoding | Up to 2 x 32MP@25fps, 8 x 8MP@30fps or 32 x 1080p@30fps (AI off) |
| AI by recorder | 2-ch face detection and recognition (20 databases, 20,000 faces), 4-ch perimeter protection, 8-ch SMD Plus |
| AI by camera | AcuPick (up to 32 ch), face recognition, video metadata, perimeter protection, ANPR, people counting, heat map, PPE detection, smart sound detection |
| PoE | 16 ports, 10/100 Mbps, IEEE 802.3af/at, ePoE on ports 1-8; 150 W total, 25.5 W per port max |
| Video output | 2 x HDMI (up to 7680 x 4320), 2 x VGA |
| Storage | 4 x SATA, up to 20TB per disk; 1 x eSATA; iSCSI |
| Alarm I/O | 16 in / 6 out |
| Ports | 1 x RJ-45 Gigabit, RS-232, RS-485, 3 x USB (1 front USB 2.0, 2 rear USB 3.0), 1 audio in, 2 audio out |
| Power | 100-240 VAC; NVR 13 W or less without HDD |
| Dimensions / weight | 440.0 x 415.1 x 70.0 mm; 4.82 kg |
Accessories (from Dahua's datasheet)
- Dahua DHI-ARB1606 alarm box
- Dahua ESS1504C 4-bay eSATA extension cabinet and RailBracket60 rack rails (not currently stocked)
What you will need
- Up to four surveillance-grade hard drives. Choose one from the Hard Drive option above, or supply your own (up to 20TB each).
- IP cameras (Dahua or ONVIF); cameras beyond the 16 PoE ports need a PoE switch
- An HDMI or VGA monitor for setup and local viewing
Frequently asked questions
How does it differ from the DHI-NVR5432-EI?
The DHI-NVR5432-EI has no PoE ports. The 16P-EI adds 16 PoE ports so cameras can plug straight in.
Can I record more than 16 cameras?
Yes. It records up to 32 cameras. The extra 16 connect through a network switch.
Is there a fee for the AI features?
No. The AI runs on the recorder and cameras, and remote viewing through the DMSS app has no subscription.
Does it come with hard drives?
It is sold without drives. You can add one from the Hard Drive option on this page.
Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales. Browse the full Dahua range or contact us on 01902 902251.
| Product Code | DHI-NVR5432-16P-EI |
|---|---|
| Manufacturer | Dahua |
| HDD Bays | 4 |
| Max IP Camera Resolution | 32MP |
| PoE Ports | 16 |
| AI Function | SMD Plus, IVS (Perimeter Protection), Face Detection, Face Recognition |
| Video Output | 2 VGA/2 HDMI |
| Product Type | NVR |
| Max No. of Channels | 32 ch |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Recording Resolution | Up to 32MP |
| Display | 2 x HDMI (up to 7680x4320), 2 x VGA |
| Storage Capacity | 4 x SATA, up to 20TB each |
| eSATA/Mini SAS | 1 x eSATA |
| Alarm I/O | 16 in / 6 out |
| Power | 100-240 VAC, <=13W (without HDD) |
| Dimensions | 440.0 x 415.1 x 70.0 mm (W x D x H) |
