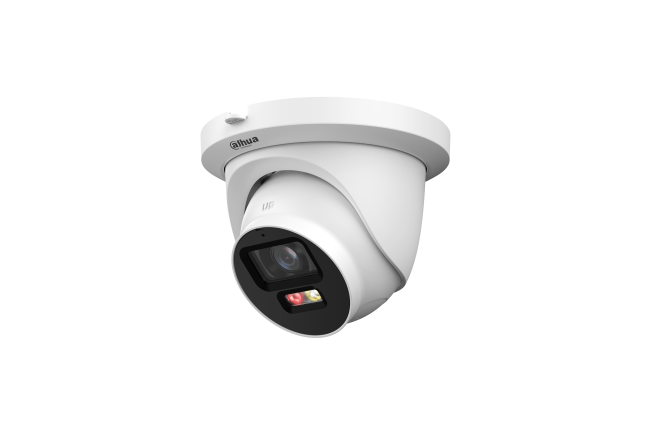

Dahua DH-IPC-HDW2649TMP-S-T-PV - 6MP Two-Way Talk TiOC Lite Eyeball Camera
Product Features
- 6MP (3288 × 1850) 1/2.7" CMOS with 2.8mm lens: choose white, black or grey
- Two-way talk: built-in microphone and speaker
- Smart dual light: IR and warm light, each up to 30m
- Sound alarm and warm-light warning for active deterrence
- SMD Plus and perimeter protection (people and vehicles)
- 120dB WDR, IP67, all-metal housing, PoE or 12V DC
Dahua DH-IPC-HDW2649TMP-S-T-PV: 6MP Two-Way Talk Eyeball Camera
The Dahua DH-IPC-HDW2649TMP-S-T-PV (listed by Dahua UK as the IPC-HDW2649TM-S-T-PV) is a 6MP fixed-lens eyeball camera from Dahua's WizSense 2 Series, in the TiOC Lite range. A built-in microphone and speaker give you two-way talk, so you can listen and speak to a visitor or an intruder through the camera from the app or recorder. Smart dual light gives IR or warm light up to 30m, and the camera can sound an alarm and use its warm light as a warning light for active deterrence.
Choose your version
All versions have the 2.8mm lens. Pick the colour from the options above:
| Version | Lens | Colour | Horizontal view |
|---|---|---|---|
| DH-IPC-HDW2649TMP-S-T-PV-0280 | 2.8mm | White | 112° |
| DH-IPC-HDW2649TMP-S-T-PV-BLK | 2.8mm | Black | 112° |
| DH-IPC-HDW2649TMP-S-T-PV-G | 2.8mm | Grey | 112° |
Who is it for?
This camera suits front doors, entrances, reception areas, shop fronts and driveways where you want a clear 6MP picture and the option to speak through the camera: greeting a delivery, directing a visitor or challenging someone on site. The black and grey versions blend in with darker fascias and cladding. SMD Plus and perimeter protection classify people and vehicles, so alerts focus on real activity.
Key specification
| Model | DH-IPC-HDW2649TMP-S-T-PV (IPC-HDW2649TM-S-T-PV) |
|---|---|
| Series | Dahua WizSense 2 Series, TiOC Lite |
| Image sensor | 1/2.7" CMOS, 6MP |
| Max resolution | 3288 × 1850 at up to 20fps (2688 × 1520 at up to 25/30fps) |
| Lens | 2.8mm fixed-focal, M12, F1.6 |
| Field of view | H 112°, V 61°, D 132° |
| Illumination | Smart dual light: IR LED up to 30m and warm light up to 30m |
| Min. illumination | 0.007 lux @ F1.6 (colour, 30 IRE); 0.0007 lux @ F1.6 (B/W); 0 lux with illuminator on |
| WDR | 120dB |
| Noise reduction | 3D NR |
| Audio | Built-in microphone and speaker (two-way talk); G.711a, G.711Mu, PCM, G.726 |
| Intelligence | SMD Plus; IVS perimeter protection (intrusion, tripwire) with human and vehicle classification |
| Active deterrence | Sound alarm; warm light can be used as a warning light |
| Video compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream); Smart H.265+ / Smart H.264+ |
| Streams | 2 |
| Storage | Micro SD up to 256GB; FTP, SFTP, NAS |
| Network | RJ-45 10/100 Base-T; ONVIF Profile S, G and T |
| Power | 12V DC or PoE; max. 7.5W (PoE) |
| Protection | IP67 |
| Housing | Metal (inner core, cover, decoration ring and mounting plate) |
| Operating temperature | -40°C to +60°C |
| Dimensions / weight | 95mm × Ø106mm; 0.53kg net |
DORI distances
Detect, observe, recognise and identify distances (EN 62676-4), from Dahua's datasheet:
| Lens | Detect | Observe | Recognise | Identify |
|---|---|---|---|---|
| 2.8mm | 61.2m | 24.5m | 12.2m | 6.1m |
Mounting accessories (from Dahua's datasheet)
- DH-PFA130-E water-proof junction box
- DH-PFB2203W and PFB305W wall mount brackets
- DH-PFB220C ceiling mount bracket
- PFA150 pole mount bracket
- DH-PFA151 corner mount bracket
- DH-PFM900-E integrated mount tester for installers
What you will need
- A PoE switch or PoE NVR port, or a 12V DC power supply
- An NVR to record and play back, ideally a Dahua WizSense NVR for smart search on SMD Plus events
- Cat5e or Cat6 cable, up to 100m per run
Frequently asked questions
Which colour should I choose?
All three versions are the same camera with the 2.8mm lens. White suits most rendered and painted walls; black and grey suit darker fascias, cladding and brickwork. Select your colour from the options at the top of this page.
What is the difference between this and the DH-IPC-HDW2649TMP-S-PV?
The -S-T-PV adds two-way talk: it has a built-in microphone and speaker, so you can hold a conversation through the camera. The DH-IPC-HDW2649TMP-S-PV has the same 6MP sensor and smart dual light.
Can I speak through the camera from my phone?
Yes. Two-way talk works through Dahua's DMSS mobile app and compatible Dahua recorders and software.
Is there a monthly fee?
No. Recording is local to your NVR or the camera's micro SD card, and the Dahua app is free.
Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. Browse the full Dahua range, more Dahua TiOC and active deterrence cameras, or contact us on 01902 902251.
| Product Code | DH-IPC-HDW2649TMP-S-T-PV |
|---|---|
| Manufacturer | Dahua |
| AI Function | SMD Plus, IVS (Perimeter Protection) |
| Protection Level | IP67 |
| Power Supply | 12V DC, PoE |
| Illumination Distance | Up to 30m |
| WDR | 120dB |
| Noise Reduction | 3DNR |
| Built-in Mic | Yes |
| Material | Metal |
| Illuminator Type | Smart Dual Light |
| Product Type | IP Camera |
| Colour | Brown |
| Max Resolution | 6MP |
| Video Compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream); Smart H.265+, Smart H.264+ |
| Min. Illumination | 0.007 lux@F1.6 (Color, 30 IRE); 0.0007 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| WDR | 120 dB |
| Lens Type | Fixed |
| Lens Size | 2.8 mm |
| FOV | H 112°, V 61°, D 132° |
| Noise Reduction | 3D NR |
| Streams | 2 streams |
| Protection Level, Ingress Protection | IP67 |
| Operating Temperature | -40°C to +60°C |
| Audio I/O | Built-in mic and speaker (two-way talk) |
| Local Storage | Micro SD, max. 256GB |
| Power | 12V DC, PoE |
| Dimensions | 95mm × Ø106mm |
