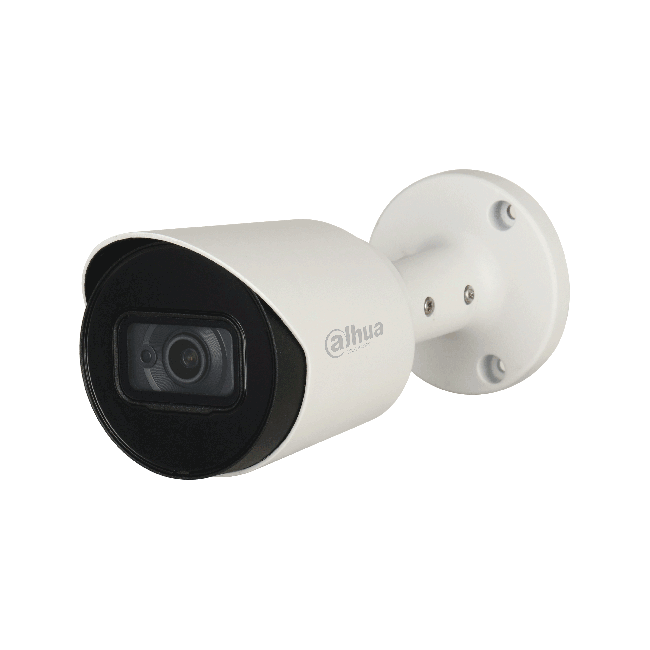

Dahua DH-HAC-HFW1800TP-A - 8MP 4K HDCVI Infrared Bullet CCTV Camera, 2.8mm Lens, Built-in Mic, 30m Night Vision, IP67 Waterproof Outdoor, White
Product Features
- Dahua DH-HAC-HFW1800TP-A is an 8MP 4K (3840 x 2160) HDCVI infrared bullet CCTV camera in white, with a 2.8mm fixed lens.
- IP67 metal casing for outdoor use, powered by 12V DC.
- Built-in microphone for audio.
- Smart IR night vision up to 30m, with Digital WDR and 2D noise reduction.
- Switchable CVI, TVI, AHD and CVBS output from one BNC port, so this analogue CCTV camera can be matched to the recorder you already have.
Dahua DH-HAC-HFW1800TP-A — 8MP 4K HDCVI IR Bullet CCTV Camera
The Dahua DH-HAC-HFW1800TP-A (also written HAC-HFW1800T-A, or DH-HAC-HFW1800TP-A-0280B with the 2.8mm lens) is an 8MP 4K real-time HDCVI infrared bullet CCTV camera from Dahua's Lite series. This is the white 2.8mm version, with a built-in microphone (the -A in the model name), Smart IR night vision up to 30m and an IP67 metal casing. Its maximum output is 3840 × 2160. HDCVI sends HD video over standard coax, so an existing analogue system can be upgraded to 4K without replacing the coaxial cabling.
Key features
- 8MP 4K (3840 × 2160) from a 1/2.7 inch CMOS sensor, at up to 25 fps over CVI (PAL).
- CVI, TVI, AHD and CVBS output from one BNC port (CVI 4K at 25 fps, AHD and TVI 4K at 15 fps, CVBS 960H).
- 2.8mm fixed lens with a 105° horizontal field of view.
- Smart IR up to 30m; minimum illumination 0.03 lux at F2.0, and 0 lux with the IR on.
- Built-in microphone (-A model).
- Digital WDR, BLC, HLC and 2D noise reduction.
- IP67 metal casing, working temperature -40 °C to +60 °C, 12V DC with ±30% input voltage tolerance.
Technical specification
| Model | DH-HAC-HFW1800TP-A (2.8mm lens, PAL, built-in mic, white) |
|---|---|
| Series | Lite series, 4K real-time HDCVI |
| Image sensor | 1/2.7 inch CMOS, progressive scan |
| Max. resolution | 8MP 4K, 3840 (H) × 2160 (V) |
| Frame rate | CVI: 4K at 25/30 fps, 4K at 15 fps, 5MP at 20 fps, 4MP at 25/30 fps; AHD: 4K at 15 fps; TVI: 4K at 15 fps; CVBS: 960H |
| Video output | CVI / TVI / AHD / CVBS, one BNC port |
| Minimum illumination | 0.03 lux at F2.0 (30IRE); 0 lux with IR on |
| S/N ratio | > 65 dB |
| Lens | Fixed-focal 2.8 mm, M12 mount, F2.0, fixed iris |
| Field of view | 125° diagonal, 105° horizontal, 56° vertical |
| Close focus distance | 1.0 m |
| IR distance | Up to 30 m, Smart IR; 1 IR LED |
| Day/night | Auto switch by ICR |
| Image functions | DWDR, BLC, HLC, 2D NR, mirror, privacy masking (8 areas) |
| Audio | One channel built-in microphone |
| Power | 12 V DC ±30%; max 4.3 W (IR on) |
| Operating temperature | -40 °C to +60 °C; below 95% RH, non-condensing |
| Protection | IP67; metal casing |
| Dimensions | 174.5 × 70.6 × 72.3 mm |
| Weight | 0.35 kg net; 0.45 kg gross |
| Certifications | CE, FCC, UL |
How far it can see (Dahua DORI figures, 2.8mm lens)
| Detect | 74.7 m |
|---|---|
| Observe | 29.9 m |
| Recognise | 14.9 m |
| Identify | 7.5 m |
Works with
- The full 4K CVI signal needs a recorder that supports 8MP (4K) HDCVI input, so check the recorder's datasheet. See our range of DVRs and XVRs.
- Dahua DH-PFA134 junction box and Dahua DH-PFA152-E pole mount, both listed by Dahua as accessories for this camera.
- Dahua DH-PFM800-4K passive video balun (pair), listed by Dahua as an accessory for this camera.
- A 12V DC power supply for the camera.
Common questions
What does HDCVI mean?
HDCVI is Dahua's way of sending HD video over standard coax cable, so an analogue system can be upgraded without rewiring. See our guide to Dahua HDCVI cameras.
Is the DH-HAC-HFW1800TP-A a true 4K camera?
Yes. Its maximum output is 8MP at 3840 × 2160, at up to 25 fps over CVI. Over AHD and TVI the 4K output is 15 fps.
Which recorder does it need?
For the full 4K CVI signal the recorder must support 8MP (4K) HDCVI input, so check the recorder's datasheet; our Penta-brid recorder guide explains the options. The camera can also output TVI, AHD or CVBS from the same BNC port.
Does it have a microphone?
Yes. The -A in the model name means a built-in microphone, and Dahua lists one channel of built-in microphone.
How does it see at night?
It is an infrared camera with Smart IR up to 30 m, which adjusts the IR so close subjects are not overexposed. Minimum illumination is 0.03 lux at F2.0, or 0 lux with the IR on.
Can it be used outdoors?
Yes. It is rated IP67, protected against water and dust, and Dahua lists a working temperature of -40 °C to +60 °C.
Is there a cheaper or longer-range version?
The Dahua DH-HAC-HFW1500TP-A is the 5MP camera in the same body, and the Dahua DH-HAC-HFW1800THP-I4-0280B is an 8MP bullet with 40m IR.
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more HD analogue cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-HAC-HFW1800TP-A |
|---|---|
| Manufacturer | Dahua |
| Colour | White |
| Illumination Distance | Up to 30m |
| WDR | DWDR |
| Noise Reduction | 2DNR |
| Built-in Mic | Yes |
| Protection Level | IP67 |
| Power Supply | 12V DC |
| Product Type | HDCVI Camera |
| Max Resolution | 8MP (4K) |
| Lens Size | 2.8 mm |
| Lens Type | Fixed |
| Max. IR Range | Up to 30 m |
| WDR | DWDR |
| Noise Reduction | 2D NR |
| Video Output | CVI/CVBS/AHD/TVI switchable |
| Protection Level, Ingress Protection | IP67 |
| Power | DC12V |
| Dimensions | 174.5mm x 70.6mm x 72.3mm |
