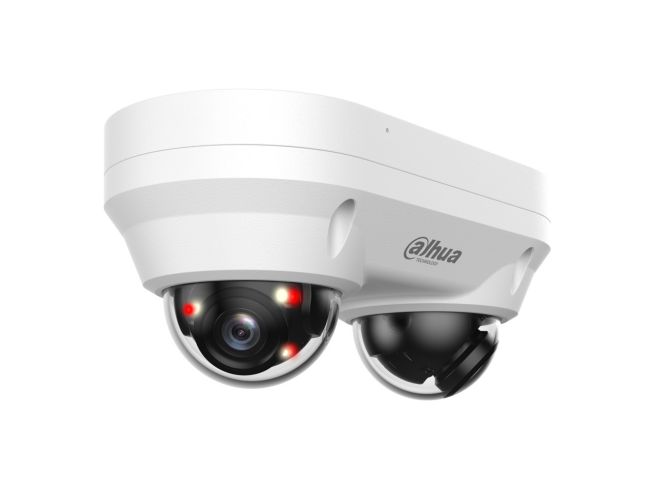

Dahua DH-IPC-HDBW2449F-AS-E2-IL - 2x4MP Smart Dual Light WizSense Dual-Directional Dome IP CCTV Camera, Two Views, Built-in Mic, IP67 IK10
Product Features
- Dahua DH-IPC-HDBW2449F-AS-E2-IL is a dual-directional dome IP CCTV camera with two 4MP (2688 × 1520) channels, IP67 and IK10 rated.
- Each channel pans -90° to 90°, so one camera can watch two directions.
- Smart Dual Light: IR up to 30 m, warm light up to 20 m.
- Intrusion and tripwire with human and vehicle classification; built-in microphone; Gigabit network port.
- PoE+ (802.3at) or 12 VDC, Micro SD up to 256 GB.
Dahua DH-IPC-HDBW2449F-AS-E2-IL — 2x4MP Smart Dual Light WizSense Dual-Directional Dome IP CCTV Camera
The Dahua DH-IPC-HDBW2449F-AS-E2-IL (also written IPC-HDBW2449F-AS-E2-IL) is a WizSense 2 Series dual-directional dome IP CCTV camera with two independent 4MP channels in one metal housing. Each lens can be panned from -90° to 90°, so a single camera can cover two directions, such as both ways along a corridor or two sides of a building. Smart Dual Light, human and vehicle detection, a built-in microphone and audio and alarm connections are included, and it runs on PoE+ or 12 VDC.
Key features
- Two 1/2.7" CMOS sensors, each 2688 × 1520 at up to 20 fps or 2560 × 1440 at up to 25/30 fps; three streams.
- Dual-directional design: each channel pans -90° to 90°, tilts 0° to 55° and rotates 0° to 360°.
- Smart Dual Light: IR up to 30 m and warm light up to 20 m from 8 multi-core (IR + warm) lights.
- Perimeter protection (intrusion and tripwire) with human and vehicle classification; SMD Plus; smart search with a Dahua Smart NVR.
- Built-in microphone; 1 audio input, 1 audio output, 1 alarm input and 1 alarm output.
- RJ-45 10/100/1000 Base-T; Smart H.265+ and Smart H.264+; Micro SD up to 256 GB and NAS.
- 12 VDC or PoE+ (802.3at) with dual power backup; IP67 and IK10; -40 °C to +60 °C.
Technical specification
| Model | DH-IPC-HDBW2449F-AS-E2-IL |
|---|---|
| Series | WizSense 2 Series, Dual-Directional |
| Image sensor | Channel 1 and channel 2: 1/2.7" CMOS |
| Max. resolution | Each channel 4MP, 2688 × 1520 |
| Frame rate | Main stream 2688 × 1520 at 1-20 fps, 2560 × 1440 at 1-25/30 fps; sub stream 704 × 576 at 1-25 fps; third stream 1920 × 1080 at 1-25/30 fps |
| Lens | Fixed-focal, M12 mount, F1.6; Dahua lists 2.8 mm and 3.6 mm |
| Field of view | 2.8 mm: H 101.5°, V 54.7°, D 120.8°; 3.6 mm: H 82.7°, V 45.3°, D 96.6° |
| Minimum illumination | 0.006 lux colour (F1.6); 0.0006 lux black and white; 0 lux with illuminator on |
| Illumination | IR up to 30 m; warm light up to 20 m; 8 multi-core lights; auto or manual control |
| Angle adjustment (each channel) | Pan -90° to 90°; tilt 0° to 55°; rotation 0° to 360° |
| WDR | 120 dB |
| Video compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream only); Smart H.265+ and Smart H.264+ |
| Audio | Built-in microphone; 1 audio input and 1 audio output (RCA); PCM, G.711a, G.711Mu, G.726, G.723 |
| Alarm | 1 input (wet contact, 5 mA 3-5 VDC); 1 output (wet contact, 300 mA 12 VDC) |
| Intelligence | IVS intrusion and tripwire with human and vehicle classification; SMD Plus |
| Storage | Micro SD card up to 256 GB; FTP, SFTP, NAS |
| Network | RJ-45 10/100/1000 Base-T; ONVIF Profile S, G and T; CGI |
| Power supply | 12 VDC; PoE+ (802.3at); dual power backup |
| Power consumption | Basic 4.8 W (12 VDC) or 6.6 W (PoE); maximum 13 W (12 VDC) or 15.8 W (PoE) |
| Protection | IP67; IK10 |
| Operating conditions | -40 °C to +60 °C; humidity up to 95%, non-condensing |
| Casing | Metal; 164 mm × 84 mm × 69.4 mm |
| Net weight | 0.63 kg |
| Certifications | CE-LVD EN62368-1; CE-EMC (Directive 2014/30/EU) |
Works with
Common questions
What does dual-directional mean?
The camera has two separate 4MP channels whose lenses can each be panned from -90° to 90°, so one camera can watch two different directions at once.
How does it see at night?
It has 8 multi-core IR and warm lights: IR reaches up to 30 m and warm light up to 20 m. See our Smart Dual Light guide and WizSense guide.
Which lens does it have?
Dahua lists 2.8 mm and 3.6 mm fixed lenses. Please contact us for a specific lens.
What power does it need?
It needs PoE+ (802.3at) or 12 VDC and uses up to 15.8 W on PoE, so a standard 802.3af port may not be enough. With both connected it keeps running if one source is removed.
Is it waterproof, and will it work with a recorder that is not Dahua?
Yes, it is IP67 and IK10 rated. It supports ONVIF Profile S, G and T for compatible third-party recorders; note that it uses two recorder channels, one per view.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more IP cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-IPC-HDBW2449F-AS-E2-IL |
|---|---|
| Manufacturer | Dahua |
| AI Function | IVS (Perimeter Protection) |
| Protection Level | IP67, IK10 |
| Power Supply | 12V DC, PoE |
| Illumination Distance | Up to 30m |
| WDR | 120dB |
| Built-in Mic | Yes |
| Illuminator Type | Smart Dual Light |
| Product Type | IP Camera |
| Colour | Brown |
| Max Resolution | 4MP |
| Lens Type | Dual Lens |
