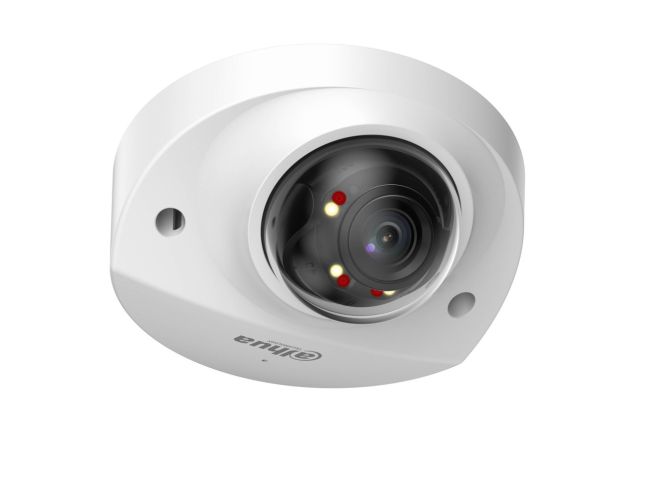

Dahua DH-IPC-HDBW2449F-AS-IL - 4MP Smart Dual Light WizSense Low Profile Dome IP CCTV Camera, Night Vision 30m, Built-in Mic, IP67 IK10
Product Features
- Dahua DH-IPC-HDBW2449F-AS-IL is a 4MP (2688 × 1520) WizSense low profile dome IP CCTV camera, IP67 and IK10 rated.
- Smart Dual Light: IR up to 30 m and warm light up to 30 m.
- Intrusion and tripwire detection with human and vehicle classification; SMD Plus.
- Built-in microphone, 1 audio in/out, 1 alarm in/out, 120 dB WDR.
- PoE (802.3af) or 12 VDC powered, Micro SD up to 256 GB.
Dahua DH-IPC-HDBW2449F-AS-IL — 4MP Smart Dual Light WizSense Low Profile Dome IP CCTV Camera
The Dahua DH-IPC-HDBW2449F-AS-IL (also written IPC-HDBW2449F-AS-IL) is a 4MP WizSense 2 Series dome IP CCTV camera with Smart Dual Light illumination in a compact 55 mm high metal housing. It records at up to 2688 × 1520, picks out people and vehicles for intrusion and tripwire alerts, has a built-in microphone plus audio and alarm connections, and runs on PoE or 12 VDC. IP67 and IK10 protection make it suitable for outdoor and vandal-prone locations.
Key features
- 4MP 1/2.9" CMOS sensor, 2688 × 1520 at up to 20 fps or 2560 × 1440 at up to 25/30 fps.
- Smart Dual Light: IR up to 30 m and warm light up to 30 m from 4 multi-core (IR + warm) lights; 0 lux with illuminator on.
- Perimeter protection (intrusion and tripwire) with human and vehicle classification; SMD Plus; smart search with a Dahua Smart NVR.
- Built-in microphone; 1 audio input, 1 audio output, 1 alarm input and 1 alarm output.
- 120 dB WDR, BLC, HLC and 3D noise reduction.
- Smart H.265+ and Smart H.264+; Micro SD card up to 256 GB.
- 12 VDC or PoE (802.3af); IP67 and IK10; operates from -40 °C to +60 °C.
Technical specification
| Model | DH-IPC-HDBW2449F-AS-IL |
|---|---|
| Series | WizSense 2 Series, Smart Dual Illuminators |
| Image sensor | 1/2.9" CMOS |
| Max. resolution | 4MP, 2688 × 1520 |
| Frame rate | Main stream 2688 × 1520 at 1-20 fps, 2560 × 1440 at 1-25/30 fps; sub stream 704 × 576 at 1-25 fps |
| Lens | Fixed-focal, M12 mount, F1.6; Dahua lists 2.8 mm and 3.6 mm |
| Field of view | 2.8 mm: H 101°, V 54°, D 120°; 3.6 mm: H 83°, V 43°, D 100° |
| Minimum illumination | 0.006 lux colour (F1.6); 0.0006 lux black and white; 0 lux with illuminator on |
| Illumination | IR up to 30 m; warm light up to 30 m; 4 multi-core lights; auto or manual control |
| Pan, tilt, rotation | Pan -30° to 30°; tilt 0° to 80°; rotation 0° to 360° |
| WDR | 120 dB |
| Video compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream only); Smart H.265+ and Smart H.264+ |
| Audio | Built-in microphone; 1 audio input and 1 audio output (RCA); G.711a, G.711Mu, G.726, PCM |
| Alarm | 1 input (wet contact, 5 mA 3-5 VDC); 1 output (wet contact, 300 mA 12 VDC) |
| Intelligence | IVS intrusion and tripwire with human and vehicle classification; SMD Plus |
| Storage | Micro SD card up to 256 GB; FTP and SFTP |
| Network | RJ-45 10/100 Base-T; ONVIF Profile S, G and T; CGI |
| Power supply | 12 VDC; PoE (802.3af) |
| Power consumption | Basic 2.3 W (12 VDC) or 2.8 W (PoE); maximum 7.1 W (12 VDC) or 8.5 W (PoE) |
| Protection | IP67; IK10 |
| Operating conditions | -40 °C to +60 °C; humidity up to 95% |
| Casing | Metal; 55.0 mm × Φ108.9 mm |
| Net weight | 0.41 kg |
| Certifications | CE-LVD EN62368-1; CE-EMC (Directive 2014/30/EU) |
Works with
- Dahua DH-PFM900-E-V2 integrated mount tester
- The 2x4MP dual-directional version (DH-IPC-HDBW2449F-AS-E2-IL)
- The 6MP dome (DH-IPC-HDBW2649E-S-IL)
Common questions
How does it see at night?
It has 4 multi-core IR and warm lights, each reaching up to 30 m. Smart Dual Light lets it switch between IR and warm light so events can be recorded in colour. See our Smart Dual Light guide and WizSense guide.
Which lens does it have?
Dahua lists this model with a 2.8 mm (101° horizontal) or 3.6 mm (83° horizontal) fixed lens. Please contact us for a specific lens.
Is it waterproof and vandal resistant?
Yes. Dahua lists IP67 and IK10 protection and an operating range of -40 °C to +60 °C.
Does it record audio?
Yes. It has a built-in microphone, plus an audio input and audio output for external devices.
How is it powered, and will it work with a recorder that is not Dahua?
It runs on PoE (802.3af) or 12 VDC and uses up to 8.5 W on PoE. It supports ONVIF Profile S, G and T, so it can be added to compatible third-party recorders; smart search works with a Dahua Smart NVR.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more IP cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-IPC-HDBW2449F-AS-IL |
|---|---|
| Manufacturer | Dahua |
| AI Function | IVS (Perimeter Protection) |
| Protection Level | IP67, IK10 |
| Power Supply | 12V DC, PoE |
| Illumination Distance | Up to 30m |
| WDR | 120dB |
| Built-in Mic | Yes |
| Illuminator Type | Smart Dual Light |
| Product Type | IP Camera |
| Colour | Brown |
| Max Resolution | 4MP |
| Lens Type | Fixed |
