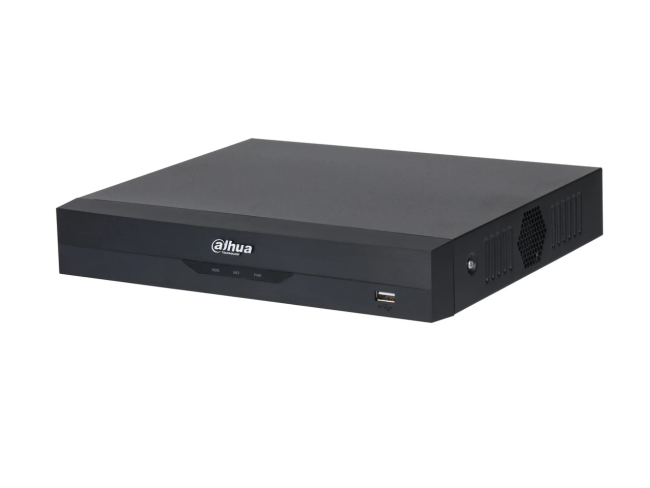

Dahua DH-XVR5108HS-I2 - 8 Channel 5MP-N Penta-brid WizSense XVR CCTV DVR (Digital Video Recorder), Compact 1U 1HDD, Face Recognition, 8+4 IP Channels
Product Features
- Dahua DH-XVR5108HS-I2 is an 8 channel 5MP-N Penta-brid WizSense XVR CCTV DVR (digital video recorder) in a Compact 1U case.
- Takes HDCVI, AHD, TVI, CVBS and IP cameras, with 8+4 IP channels of up to 6MP.
- On-recorder AI: face recognition, 2-channel perimeter protection and 8-channel SMD Plus.
- One SATA port for a hard drive of up to 10TB.
Dahua DH-XVR5108HS-I2 — 8 Channel 5MP-N Penta-brid WizSense XVR CCTV DVR
The Dahua DH-XVR5108HS-I2 (also written XVR5108HS-I2) is an 8 channel 5MP-N Penta-brid WizSense XVR CCTV DVR (digital video recorder) in a Compact 1U case with one hard drive bay. It is a hybrid DVR: one recorder takes HDCVI, AHD, TVI, CVBS and IP cameras, with 8+4 IP channels of up to 6MP. Dahua now lists this model under discontinued products. Our guide to Dahua Penta-brid recorders explains how Penta-brid works.
Key features
- 8 BNC channels for HDCVI, AHD, TVI and CVBS cameras (5MP, 4MP, 1080P, 720P).
- 8+4 IP channels, each up to 6MP.
- Perimeter protection: 2 channels, 10 IVS rules each, with human/vehicle secondary recognition.
- Face recognition: up to 8 face pictures/s, 10 face databases with 10,000 face images, stranger mode.
- SMD Plus on 8 channels.
- AI Coding, H.265+, H.265, H.264+ and H.264.
- One SATA port for a hard drive of up to 10TB, with HDMI and VGA outputs.
Technical specification
| Model | DH-XVR5108HS-I2 (XVR5108HS-I2) |
|---|---|
| Analogue video input | 8 channels, BNC |
| HDCVI input | 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD input | 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| TVI input | 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| CVBS input | PAL/NTSC |
| IP camera input | 8+4 channels, each up to 6MP |
| Recording resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Record rate | Main stream: all channels 5M-N 1-10 fps; 4M-N/1080P 1-15 fps; 1080N/720P/960H/D1/CIF 1-25/30 fps. Sub stream: D1/CIF 1-15 fps |
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Perimeter protection | 2 channels, 10 IVS for each channel; human/vehicle secondary recognition |
| Face recognition | Max 8 face pictures/sec; up to 10 face databases with 10,000 face images |
| SMD Plus | 8 channels |
| Video output | 1 HDMI, 1 VGA (1920 × 1080, 1280 × 1024, 1280 × 720) |
| Audio | 1 in / 1 out, RCA; two-way talk reuses audio in/out |
| Storage | 1 SATA port, up to 10TB |
| Network and ports | 1 RJ-45 (100 MB); 2 USB 2.0; 1 RS-485 for PTZ control |
| Interoperability | ONVIF 16.12, CGI conformant |
| Power | DC 12V/2A; under 7 W without HDD |
| Size and weight | Compact 1U, 260 mm × 238 mm × 48 mm; 1.1 kg net (without HDD) |
| Operating environment | -10°C to +55°C, 0-90% RH |
Works with
- Dahua DH-XVR5108HS-I3(V3.0), the newer I3 version of this 8 channel DVR
- Surveillance hard drives for the SATA bay, such as the WD Purple 1TB, WD Purple 4TB or Toshiba S300 2TB.
What you will need
- A surveillance-grade hard drive (1 SATA bay, up to 10TB): choose one from the Hard Drive option on this page, or fit your own.
- HDCVI, AHD, TVI or CVBS cameras with coax cabling and power, and/or IP cameras.
- An HDMI or VGA monitor for setup and local viewing.
Common questions
Which cameras can I connect?
This CCTV recorder takes HDCVI, AHD, TVI and CVBS cameras on the 8 BNC channels, plus IP cameras on 8+4 IP channels, each up to 6MP. See our guide to Dahua Penta-brid recorders.
What AI does it have?
Dahua lists 2-channel perimeter protection with human/vehicle recognition, face recognition with stranger mode and 8-channel SMD Plus. See our guide to Dahua WizSense.
How much storage can I fit?
One SATA port, up to 10TB.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range or CCTV recorders. To pair with a recorder, see our HD analogue cameras. Need help choosing? Contact us, call 01902 902251, or visit our Wolverhampton trade counter.
| Product Code | DH-XVR5108HS-I2 |
|---|---|
| Manufacturer | Dahua |
| Product Type | XVR |
| Max Resolution | 5MP |
| Video Compression | H.265+ |
| Analog Video Input | 8 ch |
| IP Video Input | 8+4 ch (up to 6MP) |
| Storage Capacity | 1 x HDD bay, up to 10TB |
