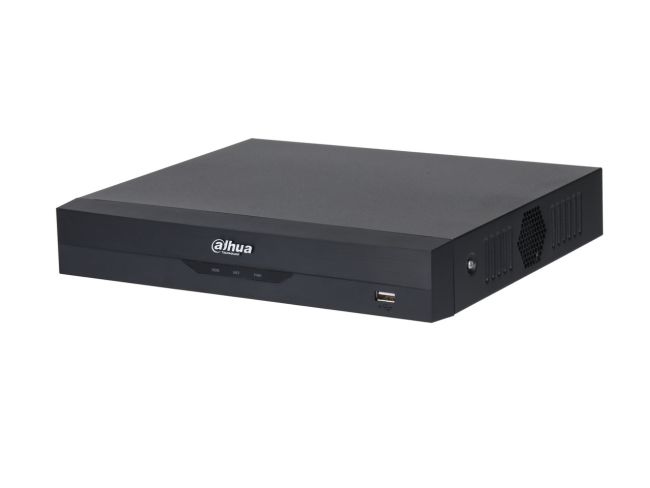

Dahua DH-XVR5116HS-I3 - 16 Channel 5MP-N Penta-brid WizSense XVR CCTV DVR (Digital Video Recorder), Compact 1U 1HDD, SMD Plus, 24 IP Channels
Product Features
- Dahua DH-XVR5116HS-I3 is a 16 channel 5MP-N Penta-brid WizSense XVR CCTV DVR (digital video recorder) in a Compact 1U case.
- Takes HDCVI, AHD, TVI, CVBS and IP cameras, with up to 24 IP channels.
- On-recorder AI: 16-channel SMD Plus, perimeter protection, face recognition and QuickPick 2.0.
- One SATA port for a hard drive of up to 16TB; 4K HDMI output.
Dahua DH-XVR5116HS-I3 — 16 Channel 5MP-N Penta-brid WizSense XVR CCTV DVR
The Dahua DH-XVR5116HS-I3 (also written XVR5116HS-I3) is a 16 channel 5MP-N Penta-brid WizSense XVR CCTV DVR (digital video recorder) in a Compact 1U case with one hard drive bay. It is a hybrid DVR: one recorder takes HDCVI, AHD, TVI, CVBS and IP cameras, with up to 24 IP channels. Dahua now lists this model under discontinued products. Our guide to Dahua Penta-brid recorders explains how Penta-brid works.
Key features
- 16 BNC channels that auto-detect HDCVI, AHD, TVI and CVBS cameras.
- Up to 24 IP channels (8 by default plus 16 converted analogue channels), 128 Mbps bandwidth.
- 16-channel SMD Plus by recorder (24 channels by camera).
- Perimeter protection: 2 channels advanced mode, 4 channels general mode, 10 IVS rules each.
- 2-channel face detection and recognition; 2-channel QuickPick 2.0.
- 16-channel AI video quality analytics.
- AI Coding, Smart H.265+, H.265, Smart H.264+, H.264.
- One SATA port up to 16TB; HDMI up to 3840 × 2160 and VGA.
Technical specification
| Model | DH-XVR5116HS-I3 (XVR5116HS-I3) |
|---|---|
| Dahua description | 16CH Penta-brid WizSense Digital Video Recorder |
| Analogue video input | 16 BNC ports, HDCVI/AHD/TVI/CVBS auto-detect |
| HDCVI input | 5MP@25, 20 and 10/12.5 fps; 4MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 and 25/30 fps |
| TVI input | 5MP (2560 × 1944 and 2960 × 1665)@20 fps; 4MP, 1080p and 720p @25/30 fps |
| AHD input | 5MP@20 fps; 4MP, 1080p and 720p @25/30 fps |
| IP camera input | Up to 24 channels (8 by default + 16 converted analogue); 128 Mbps incoming, recording and outgoing |
| Main stream | 5 MP mode: 4-ch 5 MP@1-6 fps, others 5M-N@1-12 fps. 5M-N mode: 5M-N@1-12 fps; 4M-N/1080p@1-15 fps; 1080N/720p/960H/D1/CIF@1-25/30 fps |
| Video compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264, dual-stream |
| Perimeter protection | Advanced mode 2 channels, general mode 4 channels, 10 IVS rules each |
| Face recognition | 2 channels; up to 10 face databases with 10,000 images |
| SMD Plus | 16 channels by recorder; 24 channels by camera |
| Video output | 1 HDMI (up to 3840 × 2160), 1 VGA (up to 1920 × 1080) |
| Audio | 1 RCA and 16 BNC (coaxial) in, 1 RCA out |
| Storage | 1 SATA port, up to 16TB |
| Network and ports | 1 RJ-45 (10/100/1000 Mbps); 2 USB (1 front USB 2.0, 1 rear USB 3.0); 1 RS-485 |
| Interoperability | ONVIF 24.06 (Profile T, S, G), CGI, SDK |
| Power | 12 VDC, 2A; under 12 W without HDD |
| Size and weight | 260.0 × 237.8 × 47.6 mm; 1.17 kg net |
| Operating environment | -10°C to +55°C; 10%-90% RH, non-condensing |
Works with
- Dahua DH-XVR5108HS-I3(V3.0), the 8 channel version
- Surveillance hard drives for the SATA bay, such as the WD Purple 1TB, WD Purple 4TB or WD Purple 8TB.
What you will need
- A surveillance-grade hard drive (1 SATA bay, up to 16TB): choose one from the Hard Drive option on this page, or fit your own.
- HDCVI, AHD, TVI or CVBS cameras with coax cabling and power, and/or IP cameras.
- An HDMI or VGA monitor for setup and local viewing.
Common questions
Which cameras can I connect?
HDCVI, AHD, TVI and CVBS cameras on the 16 BNC channels, plus IP cameras: up to 24 IP channels in total. See our guide to Dahua Penta-brid recorders.
Can I use AI and IP extension together?
No. Dahua states that after IP extension is enabled, video quality analytics, scene changing, face recognition, face detection, SMD, perimeter protection and QuickPick 2.0 cannot be used. See our guide to Dahua WizSense.
How much storage can I fit?
One SATA port, up to 16TB. Dahua notes the limit varies with environment temperature.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range or CCTV recorders. To pair with a recorder, see our HD analogue cameras. Need help choosing? Contact us, call 01902 902251, or visit our Wolverhampton trade counter.
| Product Code | DH-XVR5116HS-I3 |
|---|---|
| Manufacturer | Dahua |
| Product Type | XVR |
| Max Resolution | 5MP |
| Video Compression | H.265+ |
| Analog Video Input | 16 ch |
| IP Video Input | Max. 24-ch |
| Storage Capacity | 1 x HDD bay, up to 16TB |
