HIKVISION - DS-KH7300EY-WTE2/White - 7" Touch Screen 2-Wire HD Video Intercom Indoor Station, Wi-Fi, White
Product Features
7-inch touch-screen indoor station for Hikvision's 2-wire HD (EY series) door entry, with 2.4 GHz Wi-Fi on board. Powered and connected over the two-wire bus from a DS-KAD7060EY distributor or DS-KAD7061EY splitter; the Wi-Fi gives it a path to the router for Hik-Connect app forwarding. Only 20 mm deep.
- 7-inch colour TFT capacitive touch screen, 1024 × 600
- Wi-Fi 2.4 GHz IEEE 802.11 b/g/n; TCP/IP, RTSP
- Two-way audio with noise suppression and echo cancellation
- Three touch buttons (Answer, Unlock, Hang up); 1 alarm input; microSD to 128 GB
- Two-wire in and out ports; up to 3 linked extensions; DIP-switch addressing
- 190.2 × 138.2 × 20 mm; ≤ 5 W
Hikvision DS-KH7300EY-WTE2 — 7-inch 2-wire HD indoor station with Wi-Fi — white

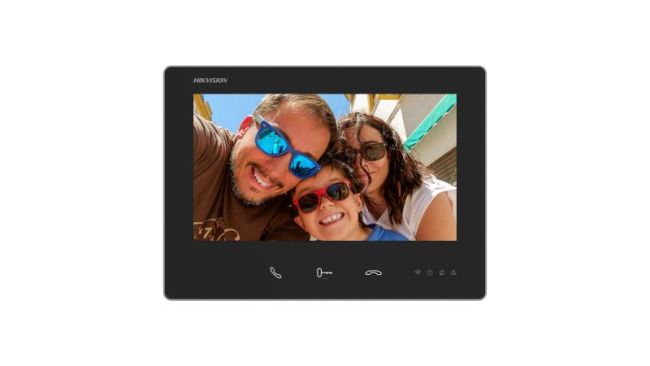

DS-KH7300EY-WTE2/White is the white version of the DS-KH7300EY-WTE2. The specification below is Hikvision's datasheet for the DS-KH7300EY-WTE2, which the finish does not change. Hikvision publishes one product image for the family, showing the black unit.
The DS-KH7300EY-WTE2 is the Wi-Fi-equipped indoor monitor for Hikvision's 2-wire HD (EY series) intercom. Like its wired twin, the DS-KH7300EY-TE2, it takes power and video over a single two-core cable from the DS-KAD7060EY distributor or a DS-KAD7061EY splitter; the added 2.4 GHz radio lets the station join the resident's network so calls can be forwarded to the Hik-Connect app.
Hikvision's current 2-wire range comes in two families that use different buses: the 2-wire IP (Y) series and the 2-wire HD (EY) series. Distributors, door stations and indoor stations are designed to be used within their own family. If you are extending an existing 2-wire system, tell us what is installed and we will confirm what fits.
What the resident gets
A press at the door wakes the 7-inch 1024 × 600 screen with live video and rings the speaker. Answer, talk, and release the door with the three touch buttons. Missed calls leave a snapshot — up to 200 on a fitted TF card. Four indicators (Wi-Fi, power, mute, in use) show status at a glance, and a physical reset button sits alongside.
Why the Wi-Fi matters on a 2-wire system
A 2-wire HD bus carries the intercom, but on its own it does not put the station on the internet. The WTE2's 2.4 GHz Wi-Fi bridges that gap for the flat it serves: connected to the resident's router it can forward door calls to a phone through Hik-Connect, so the door can be answered from the garden or from work. The wired TE2 cannot do this.
Installation
Surface mounted, 190.2 × 138.2 × 20 mm. Two-wire input and output ports allow daisy-chaining within the flat, with up to three linked extensions. Addressing is by DIP switch — five decimal and four binary — so stations can be set without a laptop. One alarm input is provided for a door contact or panic button.
Power
Per the datasheet, 48 V from the DS-KAD7060EY or DS-KAD7061EY, drawing ≤ 5 W in use and ≤ 1.2 W on standby. The standard-finish unit is listed as the DS-KH7300EY-WTE2.
DS-KH7300EY-WTE2 technical specification
| Display | |
|---|---|
| Screen | 7-inch colour TFT, capacitive touch |
| Resolution | 1024 × 600 |
| Audio | |
| Audio | 1 built-in omnidirectional microphone, 1 built-in loudspeaker; G.711 U/A at 64 Kbps; noise suppression and echo cancellation; adjustable volume |
| Capacity | |
| Event capacity | 200 captured pictures (with TF card) |
| Linked indoor extensions | 3 |
| Network | |
| Protocols | TCP/IP, RTSP |
| Wi-Fi | 2.4 GHz, IEEE 802.11 b/g/n |
| Two-wire IP interface | 2 (1 input, 1 output) |
| Interfaces | |
| Alarm input | 1 |
| TF card | Up to 128 GB (SD 2.0 or lower) |
| DIP switch | 5 decimal and 4 binary DIP switches |
| Power supply input | 48 V, powered by DS-KAD7060EY or DS-KAD7061EY |
| Buttons | 3 touch buttons (Answer, Unlock, Hang up) + 1 physical reset button |
| Indicators | 4 (Wi-Fi, Power, Mute, In use) |
| General | |
| Power | 48 V, powered by DS-KAD7060EY or DS-KAD7061EY |
| Power consumption | ≤ 5 W (standby ≤ 1.2 W) |
| Installation | Surface mounting |
| Working temperature | -10 °C to 50 °C |
| Working humidity | 10% to 90% (non-condensing) |
| Dimensions | 190.2 × 138.2 × 20 mm |
| System | Embedded Linux; 32 MB ROM, 128 MB RAM |
| Application | Indoor |
| Model | DS-KH7300EY-WTE2/White(O-STD) |
What you'll need with it
- A DS-KAD7060EY distributor (or a DS-KAD7061EY splitter) to power it
- An EY-series door station — the DS-KD7003EY-IME2
- 2.4 GHz Wi-Fi coverage at the station position for app forwarding
- Two-core cable to the station; a microSD card for snapshots
For a single dwelling the DS-KIS704EY kit bundles the EY components together.
Frequently asked questions
What is different about the /White version?
The finish only. It is the same DS-KH7300EY-WTE2 Wi-Fi indoor station with a white front. Hikvision's model code for it is DS-KH7300EY-WTE2/White(O-STD).
Does it need the Wi-Fi to work?
No. The intercom runs over the two-wire bus. Wi-Fi is for network access and Hik-Connect app forwarding.
Is 5 GHz Wi-Fi supported?
No — the datasheet lists 2.4 GHz IEEE 802.11 b/g/n only.
What is the difference from the DS-KH7300EY-TE2?
The TE2 has no Wi-Fi and draws slightly less (≤ 4 W vs ≤ 5 W). Everything else — screen, audio, bus, mounting — is the same.
Is this compatible with the DS-KH6320Y-WTE2 system?
No. The DS-KH6320Y-WTE2 is 2-wire IP (Y series) on a 24 V DS-KAD706Y bus. This is 2-wire HD (EY series) on the 48 V DS-KAD7060EY bus.
Trade pricing
Zenith Security Co is an authorised Hikvision partner supplying genuine UK-specification stock. Prices shown are for trade account holders — contact us for account terms and stock, call 01902 902251, or collect from our Wolverhampton trade counter. Browse all intercoms, the wider access control range, or the full Hikvision range.
| Product Code | DS-KH7300EY-WTE2/White(O-STD) |
|---|---|
| Manufacturer | Hikvision |
| Audio I/O | Built-in omnidirectional microphone and loudspeaker; G.711 U/A |
| Alarm I/O | 1 alarm input |
| Interface | 2 two-wire IP interfaces (1 in, 1 out); Wi-Fi 2.4 GHz 802.11 b/g/n |
| Power | 48 V from DS-KAD7060EY or DS-KAD7061EY; ≤ 5 W (standby ≤ 1.2 W) |
| Operating Temperature | -10 °C to 50 °C |
| Humidity | 10% to 90% (non-condensing) |
