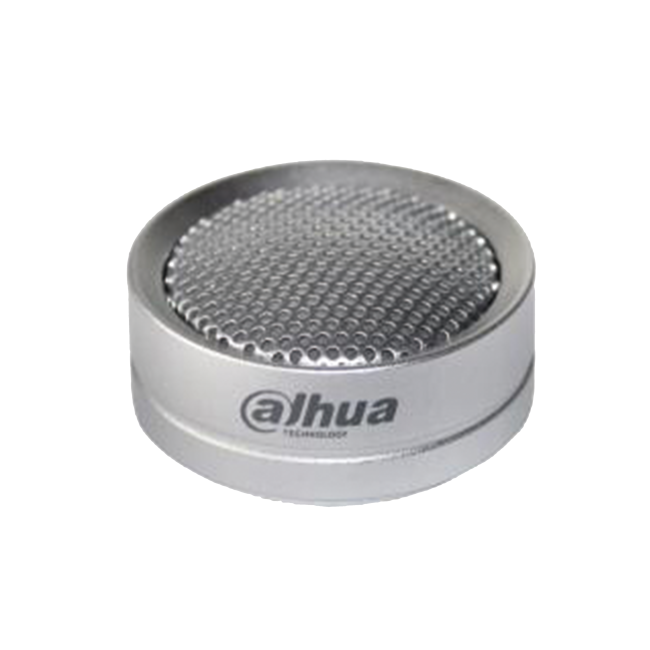

Dahua DH-HAP120 - Hi-Fidelity Omni-Directional CCTV Microphone for Security Cameras
Product Features
- Dahua DH-HAP120 is a hi-fidelity omni-directional CCTV microphone for security cameras, an audio pickup covering 10 to 70 square metres.
- A CCTV mic with 80Hz to 16kHz frequency response and 58dB signal-to-noise ratio.
- Runs from 12V DC at 40mA with an RCA female connector.
- Silver aluminium body, 40 x 20mm, 48g.
Dahua DH-HAP120 — Hi-Fidelity Omni-Directional CCTV Microphone
The Dahua DH-HAP120 is a hi-fidelity omni-directional CCTV microphone and audio pickup for adding sound to a camera or recorder with an audio input. Dahua describes it as using a high-sensitivity omni-directional microphone head for clear, natural sound, with lightning protection, power polarity transposition protection and electrostatic protection. It covers 10-70 m².
Also listed as HAP120.
Key features
- High-sensitivity omni-directional microphone head with a plated film capacitor, for clear and natural sound.
- Scope of 10-70 m², with Dahua suggesting use in electronic examination rooms, banks and guard rooms.
- Frequency response 80Hz-16kHz, 58dB signal-to-noise ratio and 74dB dynamic range.
- Lightning protection, power polarity transposition protection and electrostatic protection.
- RCA female connector and DC power connector; works from DC 12V at 40mA.
- Aluminium body in silver, 40 × 20 mm.
Technical specification
| Model | DH-HAP120 |
|---|---|
| Scope | 10-70 m² |
| Sensitivity | -34 ±3 dB |
| Frequency response | 80Hz-16kHz |
| Directional characteristic | Omni-directional |
| SNR (re 94dBSPL = 1Pa at 1kHz) | 58dB |
| Dynamic range | 74dB |
| Max. sustainable sound pressure | 110dBSPL (1kHz, THD 1%) |
| Output impedance | 600 Ω (non-equilibrium) |
| Output signal amplitude | 2.5Vpp/88dBSPL |
| Microphone | Plated film capacitor microphone head |
| Working voltage | DC 12V |
| Working current | 40mA |
| Working temperature | -30 °C to +70 °C |
| Material and colour | Aluminium, silver |
| Interface | RCA female connector; DC power connector |
| Dimensions | 40 × 20 mm |
| Weight | 48 g |
| Certification | CE, FCC |
Dahua's datasheet lists in the package: hi-fidelity pickup × 1, M4 screw and anchor × 3 and user manual × 1.
Related products
- Dahua DH-HAP100: omni-directional pinhole CCTV microphone with 5-40 m² scope.
Common questions
How big an area does it cover?
Dahua lists a scope of 10-70 m².
How is it powered?
It works from DC 12V at 40mA, through the DC power connector.
How do I connect it?
It has an RCA female connector for the audio output and a DC power connector. As a CCTV mic, it feeds sound to a camera or recorder with an audio input: tell us the model you plan to use and we will check.
How does it differ from the HAP100?
The DH-HAP100 is a pinhole pickup in a white PC shell with 5-40 m² scope and an RCA male connector. The HAP120 covers 10-70 m² and has an aluminium body with an RCA female connector.
Where does Dahua suggest using it?
Dahua says it is suitable for places such as an electronic examination room, a bank and a guard room.
Download the Dahua DH-HAP120 datasheet (PDF).
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
Full manufacturer specification: Dahua product page
Browse the full Dahua range, more IP cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-HAP120 |
|---|---|
| Product Type | Accessories & Mounts |
| Manufacturer | Dahua |
