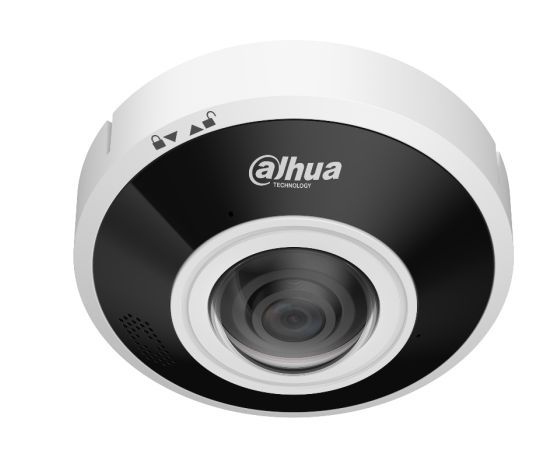

Dahua DH-IPC-EBW5641P-AS - 6MP WizMind AI 360° IR Fisheye PoE IP CCTV Camera
Product Features
- Dahua DH-IPC-EBW5641P-AS is a 6MP WizMind AI infrared fisheye PoE IP CCTV camera, 1.68mm lens, 185 degree wide angle view.
- 360 degree panoramic fisheye view, built-in IR LEDs, night vision up to 15m.
- Built-in speaker and dual microphone for two-way talk, Micro SD card up to 1TB.
- AI coding, perimeter protection, people counting and heat map.
- IP67 waterproof, IK10, ONVIF, 12V DC or PoE (802.3af).
- Colour: white · Horizontal field of view: 185° (1.68 mm fisheye lens)
Dahua DH-IPC-EBW5641P-AS — 6MP WizMind AI 360° IR Fisheye PoE IP CCTV Camera
The Dahua DH-IPC-EBW5641P-AS is a 6MP WizMind AI IR fisheye PoE IP CCTV camera with a fixed 1.68mm wide angle lens and a 185° field of view horizontally, vertically and diagonally. Dahua says its 360° fisheye monitoring covers all the corners without any blind zone. It is an infrared camera with built-in IR LEDs and up to 15m night vision, a built-in speaker and dual microphone for two-way talk, and an IP67 and IK10 housing.
Also listed as IPC-EBW5641P-AS.
Key features
- 6MP (2560 × 2560) at up to 25/30 fps from a 1/2.5 inch CMOS sensor.
- Fisheye 1.68mm fixed lens, F2.0, 185° field of view; 0.006 lux colour, 0.0006 lux black and white, and 0 lux with the illuminator on.
- Built-in IR LEDs (3), with illumination distance up to 15m.
- Fisheye front-dewarp (hardware) and back-dewarp (software), with split screens for 2 and 4 windows, and VR modes.
- Deep learning functions: perimeter protection (tripwire and intrusion), people counting, queue management and heat map.
- AI H.264 and AI H.265 coding, 120dB WDR, with Micro SD card recording up to 1TB.
- Built-in speaker and dual microphone, with two-way talk.
- IP67 and IK10, powered by 12V DC or PoE (802.3af).
Technical specification
| Model | DH-IPC-EBW5641P-AS (1.68mm lens) |
|---|---|
| Series | WizMind, Panoramic series, Fisheye |
| Image sensor | 1/2.5 inch CMOS |
| Max. resolution | 6MP, 2560 (H) × 2560 (V) |
| Lens | Fixed-focal 1.68 mm, M12 mount, F2.0, fixed iris |
| Field of view | 185° horizontal, 185° vertical, 185° diagonal |
| Close focus distance | 0.3 m |
| Minimum illumination | 0.006 lux at F2.0 (colour); 0.0006 lux (B/W); 0 lux (illuminator on) |
| Illumination | 3 IR LEDs, up to 15 m, auto or manual control |
| Wide dynamic range | 120 dB |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only); AI H.265; AI H.264 |
| Audio | Built-in dual microphone and speaker; PCM, G.711a, G.711Mu, G.726 |
| Storage | Micro SD up to 1 TB; NAS; FTP; SFTP |
| Network | RJ-45 (10/100 Base-T) |
| Interoperability | ONVIF (Profile S, Profile G, Profile T); CGI |
| Alarm and audio ports | 1 alarm in, 1 alarm out, 1 audio in, 1 audio out (RCA), 1 RS-485 |
| Power | 12 VDC, 1 A; PoE (802.3af); max 8.1 W (12 VDC), 10.1 W (PoE) |
| Protection | IP67; IK10 |
| Operating temperature | -30 °C to +60 °C; 95% RH, non-condensing |
| Size and weight | 122 mm × 53.3 mm; 0.46 kg net; 0.75 kg gross; metal and plastic casing |
How far it can see (Dahua DORI figures, 1.68mm lens)
| Detect | 33.6 m |
|---|---|
| Observe | 13.4 m |
| Recognise | 6.7 m |
| Identify | 3.4 m |
Works with
- Dahua DH-PFB220C ceiling mount, Dahua PFA137 water-proof junction box and Dahua PFA150 pole mount bracket, all listed by Dahua as optional accessories for this camera.
- Dahua lists the PFM900-E integrated mount tester as an optional accessory; see also our Dahua DH-PFM900-E-V2 integrated mount tester.
- The 5MP version, DH-IPC-EB5541P-AS, without IR illumination.
Common questions
What does WizMind mean?
WizMind is Dahua's range of project-oriented products that use deep learning algorithms for AI solutions. See our guide to Dahua WizMind cameras.
Is it a 360 degree camera?
Dahua says its 360° fisheye monitoring covers all the corners without any blind zone. The lens itself covers 185° horizontally, vertically and diagonally, and dewarped views include a 360° panoramic view plus PTZ.
Does it have night vision?
Yes. It has 3 built-in IR LEDs, with illumination distance up to 15 m.
Can I talk through the camera?
Yes. It has a built-in speaker and dual microphone, and Dahua says it supports two-way talk.
Is it PoE?
Yes. It runs on PoE (802.3af) or 12 VDC at 1 A. Dahua says that if the power adapter and PoE are connected at the same time, one should be disconnected.
How many dewarped views can I see?
Front-dewarp (hardware decoding) modes include 1O, 1P, 2P, 1R, 2R, 4R and 1O plus 3R, with split screens for 2 and 4 windows. Back-dewarp (software decoding) modes include fisheye plus up to 8 PTZ views and VR modes.
Can it count people?
Yes. Dahua lists tripwire people counting, people counting in area, queue management and heat map, with reports by day, month and year on supported platforms.
Download the Dahua DH-IPC-EBW5641-AS datasheet (PDF).
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
Full manufacturer specification: Dahua product page
Browse the full Dahua range, more IP cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
Browse the range: Dahua IP cameras · all Dahua cameras.
| Product Code | DH-IPC-EBW5641P-AS |
|---|---|
| Brand | Dahua |
| Style | Fisheye Cameras |
| Protection Level | IP67, IK10 |
| Power Supply | 12V DC, PoE |
| Illumination Distance | Up to 30m |
| WDR | 120dB |
| Built-in Mic | Yes |
| Illuminator Type | IR LED |
| Product Type | IP Camera |
| Colour | White |
| Max Resolution | 6MP |
| Lens Type | Fixed |
