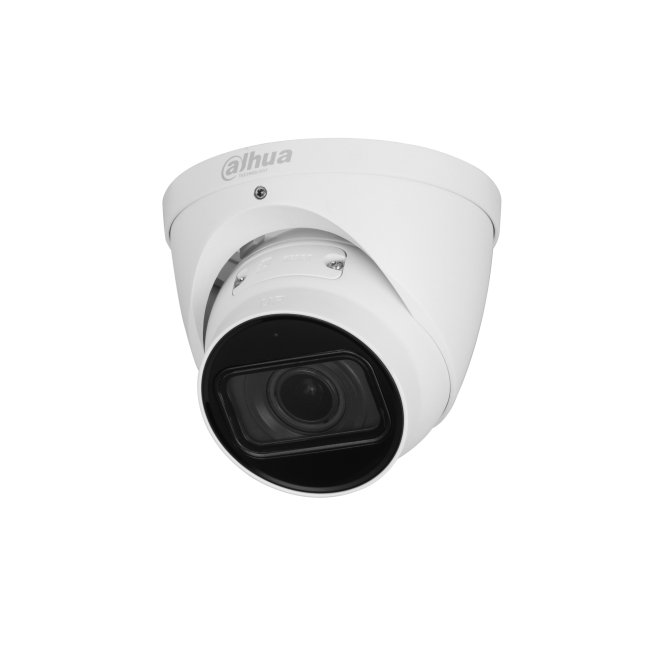

Dahua DH-IPC-HDW5541TP-ZE-271-ATC-S3 - 5MP WizMind IR Vari-Focal Anti-Corrosion Eyeball Camera
Product Features
- 5MP (2960 × 1668) 1/2.7" CMOS with AI-ISP
- 2.7–13.5mm motorised vari-focal lens (H 114°–32°)
- IR up to 40m, 120dB WDR, 3D NR
- WizMind AI: perimeter protection, face detection, people counting, video metadata, AcuPick
- Built-in mic, micro SD up to 1TB, 12V DC / PoE / ePoE
- IP67 metal housing, anti-corrosion (ATC) version
Dahua DH-IPC-HDW5541TP-ZE-271-ATC-S3: 5MP WizMind IR Vari-Focal Eyeball Camera (Anti-Corrosion)
The Dahua DH-IPC-HDW5541TP-ZE-271-ATC-S3 is the anti-corrosion (ATC) version of Dahua's IPC-HDW5541T-ZE, a 5MP IR vari-focal eyeball (turret) camera from the Dahua WizMind 5 Series. A 2.7–13.5mm motorised lens lets you set the view remotely, from a wide 114° down to 32° for more detail at distance. AI-ISP processing, 120dB WDR and up to 40m of IR give clear 5MP images day and night, while deep-learning analytics cover perimeter protection, face detection, people counting, video metadata and AcuPick search.
Who is it for?
This camera suits sites where the housing has to cope with a corrosive atmosphere, such as coastal properties, ports, marinas and industrial yards, and where you want the flexibility of a motorised zoom lens: car parks, loading bays, building perimeters and entrances. Human and vehicle classification keeps alerts focused on real activity, and the built-in microphone adds audio to your recordings.
Key specification
Specifications from Dahua's IPC-HDW5541T-ZE (S3) datasheet:
| Model | DH-IPC-HDW5541TP-ZE-271-ATC-S3 (Dahua IPC-HDW5541T-ZE, anti-corrosion version) |
|---|---|
| Series | Dahua WizMind 5 Series |
| Image sensor | 1/2.7" CMOS |
| Max resolution | 2960 × 1668 (5MP) at 1–25/30fps |
| Lens | Motorised vari-focal 2.7–13.5mm, F1.5, auto iris |
| Field of view | H 114°–32°; V 58°–17°; D 138°–36° |
| Illumination | 2 IR LEDs, up to 40m |
| Min. illumination | 0.0009 lux @ F1.5 (colour, 30 IRE); 0.0005 lux @ F1.5 (B/W); 0 lux with IR on |
| WDR / noise reduction | 120dB / 3D NR |
| Intelligence | IVS perimeter protection (intrusion, tripwire, fast moving with human, vehicle and animal classification; loitering, people gathering, parking detection); smart abandoned/missing object; SMD 3.0; face detection; people counting and queue management; heat map; video metadata; AcuPick |
| Video compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream); Smart H.265+/H.264+; AI H.265/H.264 |
| Streams | 4 |
| Audio | Built-in microphone |
| Storage | Micro SD up to 1TB; FTP, SFTP, NAS |
| Network | RJ-45 10/100 Base-T; ONVIF Profile S, G, T and M |
| Power | 12V DC, PoE (802.3af) or ePoE; max. 7W (12V DC), 8.5W (PoE); dual power backup |
| Protection | IP67 |
| Housing | Metal |
| Operating temperature | -30°C to +60°C |
| Dimensions / weight | Ø122.0mm × 108.3mm; 0.70kg net |
DORI distances
Detect, observe, recognise and identify distances (EN 62676-4), from Dahua's datasheet:
| Lens position | Detect | Observe | Recognise | Identify |
|---|---|---|---|---|
| Wide (2.7mm) | 64.0m | 25.6m | 12.8m | 6.4m |
| Tele (13.5mm) | 210.0m | 84.0m | 42.0m | 21.0m |
Mounting accessories (from Dahua's datasheet)
- PFB203W wall mount bracket
- PFA152-E pole mount bracket
- PFA106 mount adapter
- PFB220C ceiling mount bracket
- PFA137 junction box
- PFM900-E integrated mount tester
What you will need
- A PoE switch or PoE NVR port (802.3af), or a 12V DC power supply
- An NVR to record and play back, ideally a Dahua WizMind NVR for smart search on AI events
- Cat5e or Cat6 cable
Frequently asked questions
What does ATC mean?
ATC is Dahua's suffix for its anti-corrosion camera versions, intended for harsher atmospheres such as coastal and industrial sites.
Can I zoom the lens after installation?
Yes. The 2.7–13.5mm lens is motorised, so zoom and focus are adjusted remotely from the web interface, NVR or app, with no need to go back up a ladder.
Does it count people?
Yes. It supports tripwire people counting, counting in an area and queue management, with day/week/month/year reports.
Will it work with a non-Dahua NVR?
It supports ONVIF Profile S, G, T and M, so it can be added to most third-party NVRs and VMS, although some Dahua AI features need a Dahua recorder.
Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales. Browse the full Dahua range or contact us on 01902 902251.
| Product Code | DH-IPC-HDW5541TP-ZE-271-ATC-S3 |
|---|---|
| Manufacturer | Dahua |
| AI Function | SMD 3.0, IVS (Perimeter Protection), Face Detection, People Counting, Heat Map, AcuPick, Video Metadata |
| Protection Level | IP67 |
| Power Supply | 12V DC, PoE, ePoE |
| Illumination Distance | 31–60m |
| WDR | 120dB |
| Noise Reduction | 3DNR |
| Built-in Mic | Yes |
| Material | Metal |
| Illuminator Type | IR LED |
| Product Type | IP Camera |
| Max Resolution | 5MP |
| Lens Type | Vari-focal |
