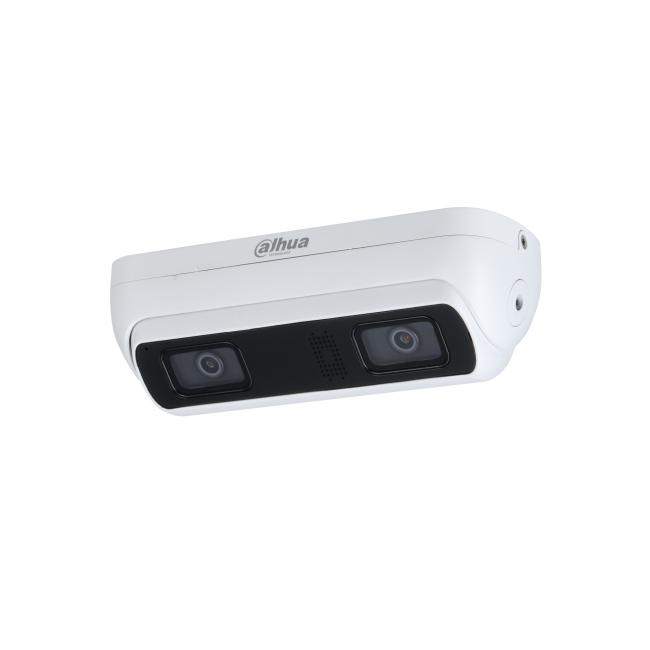

Dahua DH-IPC-HDW8341XP-3D-0280B-S2 - 3MP WizMind Dual-Lens People Counting Camera
Product Features
- 3MP (2048 × 1536) 1/2.8" CMOS dual-lens camera, 2.8mm
- People counting: entry/exit, in area and queue management with daily/monthly/yearly reports
- IVS perimeter protection and face detection
- Built-in mic and speaker; 2/2 alarm, 2 audio in / 1 out, RS-485
- IR up to 20m, micro SD up to 256GB
- IP67 and IK10 metal housing, 12V DC / PoE / ePoE
Dahua DH-IPC-HDW8341XP-3D-0280B-S2: 3MP WizMind Dual-Lens People Counting Camera
The Dahua DH-IPC-HDW8341XP-3D-0280B-S2 (Dahua model IPC-HDW8341X-3D-S2) is a 3MP dual-lens network camera from the Dahua WizMind 8 Series, built for accurate people counting. Mounted overhead, its two lenses count people entering and leaving, count people within an area and manage queues, and the camera produces daily, monthly and yearly reports. It also supports IVS perimeter protection and face detection, with a built-in microphone and speaker for audio and siren deterrence.
Who is it for?
This camera suits retail stores, shopping centres, banks, libraries, offices and venues that need reliable footfall figures and queue data at entrances, exits and tills. The data helps with staffing, opening hours and occupancy management, while the camera still records 3MP video for security.
Key specification
| Model | DH-IPC-HDW8341XP-3D-0280B-S2 (IPC-HDW8341X-3D-S2) |
|---|---|
| Series | Dahua WizMind, dual-lens series |
| Image sensor | 1/2.8" 3MP progressive CMOS |
| Max resolution | 2048 × 1536 at 1–25/30fps |
| Lens | Fixed 2.8mm, F1.6 |
| Field of view | H 96°, V 70°, D 128° |
| Illumination | 1 IR LED, up to 20m |
| Min. illumination | 0.005 lux @ F1.6 (colour, 30 IRE); 0.0005 lux @ F1.6 (B/W); 0 lux with IR on |
| WDR / noise reduction | DWDR / 3D NR |
| People counting | Tripwire (entry/exit) counting, people counting in 4 areas, 4 queue managements; daily/monthly/yearly reports |
| Intelligence | IVS perimeter protection (tripwire, intrusion, fast moving with human/vehicle classification; loitering, people gathering, parking detection); abandoned/missing object; face detection |
| Video compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream); Smart H.265+/H.264+ |
| Streams | 5 |
| Audio | Built-in microphone and speaker; 2 audio in, 1 audio out (RCA) |
| Alarm / ports | 2 alarm in, 2 alarm out; RS-485 |
| Storage | Micro SD up to 256GB; FTP, SFTP, NAS |
| Network | RJ-45 10/100 Base-T; ONVIF Profile S, G and T |
| Power | 12V DC, PoE or ePoE; max. 9.1W (12V DC), 10.6W (PoE) |
| Protection | IP67, IK10 |
| Housing | Metal |
| Operating temperature | -40°C to +60°C |
| Dimensions / weight | 204.0 × 78.0 × 61.5mm; 0.81kg net |
DORI distances
From Dahua's datasheet (EN 62676-4):
| Lens | Detect | Observe | Recognise | Identify |
|---|---|---|---|---|
| 2.8mm | 44.8m | 17.9m | 9.0m | 4.5m |
Mounting accessories (from Dahua's datasheet)
- PFB110W wall mount bracket
- PFA156 ceiling mount bracket (available to order, please ask)
What you will need
- A PoE switch or PoE NVR port, or a 12V DC power supply
- An NVR or VMS for recording and people-counting reports, ideally a Dahua WizMind NVR
- Cat5e or Cat6 cable
Frequently asked questions
Why does it have two lenses?
The dual-lens design is used for Dahua's people counting, letting the camera track people passing underneath it for accurate entry and exit figures.
Where should it be mounted?
It is designed for overhead mounting above an entrance, exit or queue area, on a ceiling or with the PFB110W wall bracket.
Can I get footfall reports?
Yes. The camera generates daily, monthly and yearly reports for entry/exit counting, in-area counting and queue management.
Is it suitable for outdoor use?
It is rated IP67 and IK10 with a metal housing and works from -40°C to +60°C.
Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales. Browse the full Dahua range or contact us on 01902 902251.
| Product Code | DH-IPC-HDW8341XP-3D-0280B-S2 |
|---|---|
| Manufacturer | Dahua |
| AI Function | IVS (Perimeter Protection), Face Detection, People Counting |
| Protection Level | IP67, IK10 |
| Power Supply | 12V DC, PoE, ePoE |
| Illumination Distance | Up to 30m |
| WDR | DWDR |
| Noise Reduction | 3DNR |
| Built-in Mic | Yes |
| Material | Metal |
| Illuminator Type | IR LED |
| Product Type | IP Camera |
| Max Resolution | 3MP |
| Lens Type | Dual Lens |
