Dahua DH-IPC-HFW5849T1P-ASE-LED-0360 - 8MP 4K WizMind AI Full-Colour Warm Light Bullet IP CCTV Camera
Product Features
- Dahua DH-IPC-HFW5849T1P-ASE-LED-0360 is an 8MP 4K WizMind AI full-colour PoE IP CCTV bullet camera with a 3.6mm lens.
- 1/1.2 inch sensor, F1.0 lens and 4 warm LEDs up to 60m give colour night vision.
- AI analytics: perimeter protection, face detection, people counting and heat map.
- Waterproof IP67 metal housing, 140dB WDR, built-in microphone, 12V DC, PoE or ePoE power.
- Colour: white · Horizontal field of view: 91° (3.6 mm lens)

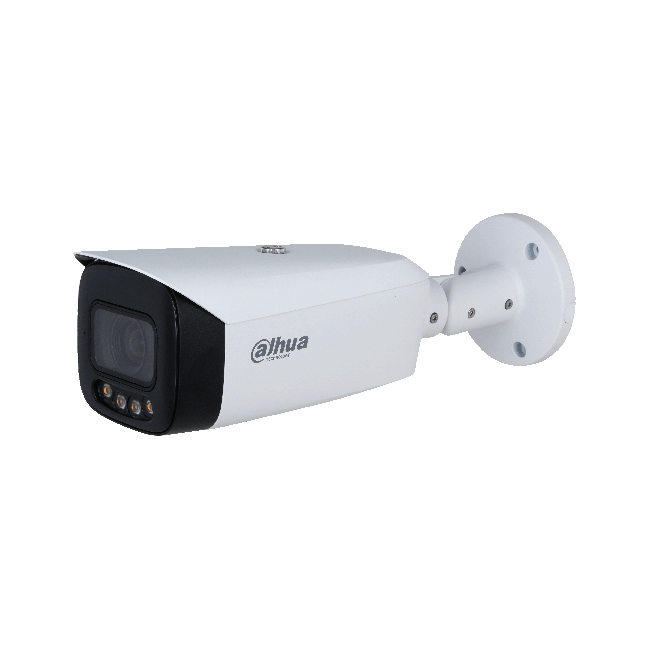

Dahua DH-IPC-HFW5849T1P-ASE-LED-0360: 8MP Full-Colour Warm LED Bullet Camera
The Dahua DH-IPC-HFW5849T1P-ASE-LED-0360 (Dahua model IPC-HFW5849T1-ASE-LED) is an 8MP (4K) full-colour bullet camera from the Dahua WizMind 5 Series. Its large 1/1.2" sensor and F1.0 lens gather far more light than a standard camera, and four warm LEDs reach up to 60m, so it records vivid colour detail around the clock. WizMind deep-learning analytics add perimeter protection with human and vehicle classification, face detection, people counting and heat maps.
Also listed as IPC-HFW5849T1P-ASE-LED-0360, DH-IPC-HFW5849T1P-ASE-LED and DH-IPC-HFW5849T1-ASE-LED.
Who is it for?
Choose this camera where colour at night matters: identifying clothing and vehicle colours on driveways, car parks, yards, forecourts and building perimeters. The 3.6mm lens gives a 91° horizontal view with more reach than a 2.8mm, and the IP67 metal housing is built for outdoor use. Dahua lists an operating temperature of -40°C to +60°C, so it can be mounted outdoors.
Key specification
| Model | DH-IPC-HFW5849T1P-ASE-LED-0360 (IPC-HFW5849T1-ASE-LED) |
|---|---|
| Series | Dahua WizMind 5 Series, full-colour |
| Image sensor | 1/1.2" CMOS |
| Max resolution | 3840 × 2160 (8MP) at 1–25/30fps |
| Lens | Fixed 3.6mm, F1.0, M22 mount |
| Field of view | H 91°, V 50°, D 106° |
| Illumination | 4 warm LEDs, up to 60m |
| Min. illumination | 0.0005 lux @ F1.0 |
| WDR / noise reduction | 140dB / 3D NR |
| Intelligence | IVS perimeter protection (tripwire and intrusion with human/vehicle classification; loitering, people gathering, parking detection); abandoned/missing object; SMD 3.0; face detection; people counting and queue management; heat map |
| Video compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream); Smart H.265+/H.264+ |
| Streams | 3 |
| Audio | Built-in microphone; 1 audio in, 1 audio out (RCA) |
| Alarm | 1 in, 1 out |
| Storage | Micro SD up to 256GB; FTP, SFTP, NAS |
| Network | RJ-45 10/100 Base-T; ONVIF Profile S, G and T |
| Power | 12V DC, PoE (802.3af) or ePoE; max. 11.1W (12V DC), 12.1W (PoE) |
| Protection | IP67 |
| Housing | Metal |
| Operating temperature | -40°C to +60°C |
| Dimensions / weight | 288.4 × 94.4 × 84.7mm; 1.15kg net |
DORI distances
From Dahua's datasheet (EN 62676-4):
| Lens | Detect | Observe | Recognise | Identify |
|---|---|---|---|---|
| 3.6mm | 120.4m | 48.2m | 24.1m | 12.0m |
Mounting accessories (from Dahua's datasheet)
What you will need
- A PoE switch or PoE NVR port (802.3af), or a 12V DC power supply
- An 8MP-capable NVR, ideally a Dahua WizMind NVR for smart search
- Cat5e or Cat6 cable
Frequently asked questions
Does it record in colour at night?
Yes. The large sensor and F1.0 lens, backed by four warm LEDs with up to 60m range, give full-colour video 24/7.
Can I turn the warm lights off?
Illuminator control is auto or manual, so you can set how the warm LEDs behave.
What is the difference between 2.8mm and 3.6mm?
This listing is the 3.6mm version, with a 91° horizontal view and identify distance of 12m. A 2.8mm lens is wider (112°) but with less detail at distance.
Is there a monthly fee?
No. Recording is local to your NVR or the camera's micro SD card.
Is it an outdoor CCTV camera?
Yes. The IP67 metal housing and the -40°C to +60°C operating temperature suit outdoor use, and as an outdoor camera it can run from PoE (802.3af), ePoE or 12V DC.
Is it a waterproof camera?
The housing is rated IP67 and is made of metal.
Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales. Browse the full Dahua range or contact us on 01902 902251.
| Product Code | DH-IPC-HFW5849T1P-ASE-LED-0360 |
|---|---|
| Manufacturer | Dahua |
| Style | Bullet Cameras |
| AI Function | SMD 3.0, IVS (Perimeter Protection), Face Detection, People Counting, Heat Map |
| Protection Level | IP67 |
| Power Supply | 12V DC, PoE, ePoE |
| Illumination Distance | 31–60m |
| WDR | 140dB |
| Noise Reduction | 3DNR |
| Built-in Mic | Yes |
| Material | Metal |
| Illuminator Type | Warm Light |
| Product Type | IP Camera |
| Colour | White |
| Max Resolution | 8MP (4K) |
| Lens Type | Fixed |
