Dahua DH-IPC-HUM8441P-E1-L4 - 4MP WizMind Covert Pinhole Camera Kit, 2.8mm
Product Features
- 4MP (2688 × 1520) Starlight 1/2.7" CMOS covert pinhole camera kit
- Separated design: main box plus tiny 35 × 35mm 2.8mm pinhole lens on an 8m cable
- WizMind AI: perimeter protection, face detection, abandoned/missing object
- 120dB WDR, 3D NR, micro SD up to 256GB
- Audio 1 in / 1 out, alarm 2 in / 2 out, RS-232
- 12V DC or PoE (802.3af) with dual power backup
Dahua DH-IPC-HUM8441P-E1-L4: 4MP WizMind Covert Pinhole Camera Kit

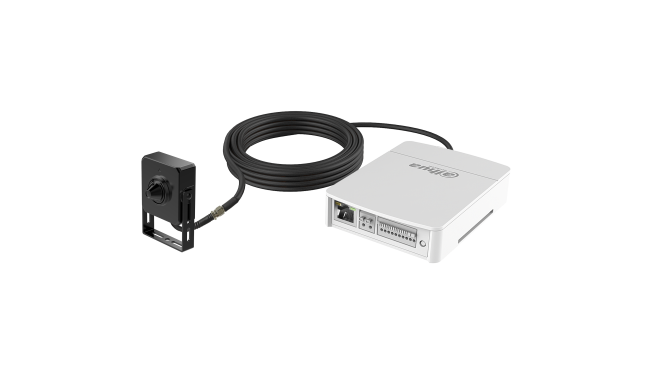

The Dahua DH-IPC-HUM8441P-E1-L4 kit (Dahua model IPC-HUM8441-E1-L4) is a 4MP covert pinhole network camera with a separated design. The DH-IPC-HUM8441-E1 main box handles processing, recording and connections, while the tiny L4 pinhole lens module (35 × 35 × 26.7mm) connects through the included 8m coaxial cable, so the lens can be hidden in fittings, displays or ATMs well away from the electronics. Dahua WizMind deep learning adds perimeter protection with human and vehicle classification, face detection and smart object detection.
Who is it for?
Dahua positions this separated pinhole camera for hidden or small installations such as banks, cash points, advertising screens, retail counters and kiosks, where a normal camera would be too visible or too large. The 2.8mm lens gives a wide 101° horizontal view.
Key specification
| Model | DH-KIT/IPC-HUM8441P-E1-L4-0280 (IPC-HUM8441-E1-L4) |
|---|---|
| Kit contents | DH-IPC-HUM8441-E1 main box and L4 pinhole lens, connected by an 8m coaxial cable |
| Image sensor | 1/2.7" Starlight CMOS |
| Max resolution | 2688 × 1520 (4MP) at 25/30fps |
| Lens | Fixed 2.8mm, F2.0, M12 |
| Field of view | H 101°, V 57°, D 115° |
| Min. illumination | 0.005 lux @ F2.0 (colour, 30 IRE); 0.0005 lux @ F2.0 (B/W) |
| WDR / noise reduction | 120dB / 3D NR |
| Intelligence | IVS perimeter protection (tripwire, intrusion, fast moving with human/vehicle classification; loitering, people gathering, parking detection); smart abandoned/missing object; face detection with attributes |
| Video compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream); Smart H.265+/H.264+ |
| Streams | 3 |
| Audio | 1 in, 1 out (3.5mm jack) |
| Alarm | 2 in, 2 out |
| Storage | Micro SD up to 256GB; FTP, SFTP, NAS |
| Network | RJ-45 10/100 Base-T; ONVIF Profile S, G and T |
| Power | 12V DC or PoE (802.3af), dual power backup; max. 3.9W (12V DC), 4.8W (PoE) |
| Housing | Metal |
| Operating temperature | -40°C to +60°C |
| Dimensions | Main box 110 × 83 × 24mm; lens 35 × 35 × 26.7mm; 210g net |
DORI distances
From Dahua's datasheet (EN 62676-4):
| Lens | Detect | Observe | Recognise | Identify |
|---|---|---|---|---|
| 2.8mm (L4) | 61.0m | 24.4m | 12.2m | 6.1m |
What you will need
- A PoE switch or PoE NVR port (802.3af), or a 12V DC power supply
- An NVR, ideally a Dahua WizMind NVR
- Cat5e or Cat6 cable to the main box
Frequently asked questions
How far can the lens be from the main box?
The lens connects to the main box using the included 8m coaxial cable.
What is dual power backup?
If both PoE and a 12V DC adapter are connected and one supply fails, the camera keeps working on the other without restarting.
Is anything important during installation?
Dahua advises connecting the lens before powering on the main box, otherwise the device may be damaged.
Does it record audio?
It has a 3.5mm audio input and output, so an external microphone and speaker can be connected.
Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales. Browse the full Dahua range or contact us on 01902 902251.
| Product Code | DH-KIT/IPC-HUM8441P-E1-L4-0280 |
|---|---|
| Manufacturer | Dahua |
| AI Function | IVS (Perimeter Protection), Face Detection |
| Power Supply | 12V DC, PoE |
| WDR | 120dB |
| Noise Reduction | 3DNR |
| Material | Metal |
| Product Type | Specialist Camera |
| Max Resolution | 4MP |
| Lens Type | Fixed |
