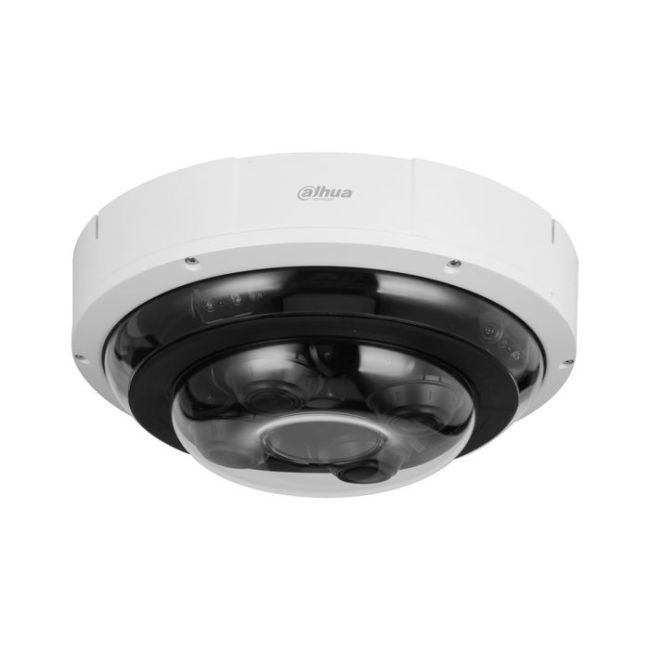

Dahua DH-IPC-PDBW82041P-B360-E4-2812-S2 - 4x5MP 360 Degree Panoramic Dome IP CCTV Camera

Dahua DH-IPC-PDBW82041P-B360-E4-2812-S2 — 4x5MP 360 Degree Panoramic Dome IP CCTV Camera

The Dahua DH-IPC-PDBW82041P-B360-E4-2812-S2 is a 4x5MP panoramic dome IP CCTV camera with four independent 5MP sensors, each behind its own 2.8-12mm motorised lens, giving up to 20MP of combined coverage from a single mounting point. Dahua's datasheet for the base model IPC-PDBW82041-B360 describes a WizMind multi-sensor no-splicing panoramic dome whose lenses can each be adjusted to cover 360 degrees. IR illumination reaches 30 m, and the housing is rated IP67 and IK10.

Also listed as IPC-PDBW82041P-B360-E4-2812-S2. It is the 2.8-12mm (-2812) version of the Dahua IPC-PDBW82041-B360-S2 family.

Key features

• Four independent 1/2.7" 5MP CMOS sensors, each with its own head that is framed separately on installation.
• 2.8-12mm motorised vari-focal lens (F1.7) on every head.
• Up to 20MP of combined coverage from one mounting point and one cable run.
• IR illumination up to 30 m.
• Tripwire, intrusion, rapid-movement and face detection.
• Micro SD card up to 256 GB.
• IP67 and IK10, powered by PoE+ (802.3at) or 12 VDC.

Technical specification

Works with

• Dahua DH-PFA108 mount adapter
• Dahua DH-PFA111 mount adapter
• Dahua DH-PFB300C ceiling mount
• Dahua DH-PFB303W wall mount bracket
• Dahua DH-PFM900-E-V2 integrated mount tester

Common questions

Can each of the four heads be aimed separately?

Yes. Each of the four 5MP heads has its own motorised lens and can be framed on its own during installation.

Is this a 360 degree camera?

The four heads can be set up to cover all the way round the dome, which Dahua describes as 360 degree surveillance. It is not a single fisheye lens: you get four separate 5MP views, not one stitched image.

Does this replace several separate cameras?

One mounting point and one cable run can cover what would otherwise need up to four single-lens cameras.

What does 4x5MP mean?

Four sensors of 5MP each, up to 20MP of combined coverage. Each sensor outputs its own view.

Does it have night vision?

Yes. Dahua lists a built-in IR illuminator that reaches up to 30 m for night vision.

Can it record to an SD card?

Yes. It takes a Micro SD card up to 256 GB, so it also works as an SD card camera.

What power does it need?

12 VDC or PoE+ (802.3at). A PoE+ switch or injector, or a 12 VDC supply, is needed.

Which recorder do I need?

An NVR or VMS that can take the camera's multiple video streams.
