Dahua DH-PFA126 - IP66 CCTV Camera Junction Box for Medium-sized All-in-one ITC and PTZ Cameras

Dahua DH-PFA126 — IP66 Waterproof CCTV Junction Box

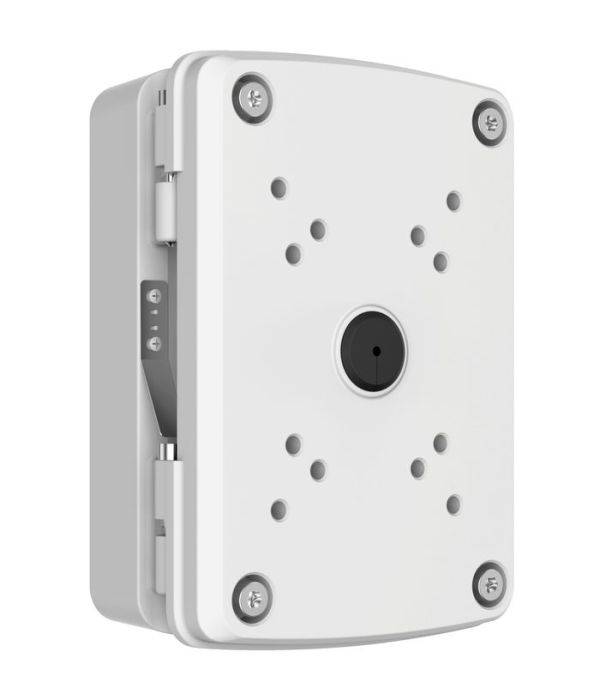

The Dahua DH-PFA126 is an IP66 waterproof, white aluminium CCTV junction box measuring 228.4 mm × 160.4 mm × 84.7 mm. Dahua says it is mainly used to support the junction installation of medium-sized all-in-one ITC and PTZ cameras. Cables can be organised inside it, with outlets at the bottom and side, and it carries up to 18 kg.

Also listed as PFA126.

Key features

• IP66 waterproof junction box in aluminium, white.
• Mainly used to support junction installation of medium-sized all-in-one ITC and PTZ cameras.
• Cables can be organised inside, with outlets at the bottom and side of the box.
• Load bearing of 18 kg at a net weight of 1.56 kg.
• Applicable models listed by Dahua: DH-PFB604W, DH-PFB605W, DH-PFB303W, DH-PFB305W, DH-PFB306W, DH-PFB310W, DH-PFB300C, DH-PFB301C and DH-PFA150.

Technical specification

Works with

• Dahua DH-PFB300C ceiling mount bracket
• Dahua DH-PFB303W wall mount bracket
• Dahua PFB305W wall bracket
• Dahua PFB604W wall mount bracket
• Dahua PFA150 pole mount bracket

Related products

• Dahua DH-PFA121-V3 junction box, IP66, IK10
• Dahua DH-PFA197R aluminium CCTV camera junction box

This item is supplied as genuine UK-specification stock. If you are not certain it is the right part for your camera, send us the model and we will confirm compatibility before you order.

Common questions

Which cameras is it for?

Dahua says it is mainly used to support the junction installation of medium-sized all-in-one ITC and PTZ cameras, and lists applicable models DH-PFB604W, DH-PFB605W, DH-PFB303W, DH-PFB305W, DH-PFB306W, DH-PFB310W, DH-PFB300C, DH-PFB301C and DH-PFA150. Tell us your camera and bracket and we will confirm before you order.

Is it waterproof?

Dahua gives it IP66 protection and describes it as a waterproof product.

How much can it carry?

Dahua lists a load bearing of 18 kg. The box weighs 1.56 kg net.

How big is it and what is it made from?

Aluminium, white, 228.4 mm × 160.4 mm × 84.7 mm (L × W × H).

What accessories come with it?

Dahua's datasheet lists four M8×25 screws, four M8×80 metal expansion bolts, two G3/4 water joints, one S6.0 wrench, an instruction sheet and a mounting sticker.

What temperatures can it work in?

From -40 °C to +60 °C, in humidity of 10%-90% RH.

Can I collect it?

Yes, from our Wolverhampton trade counter (please call first).
