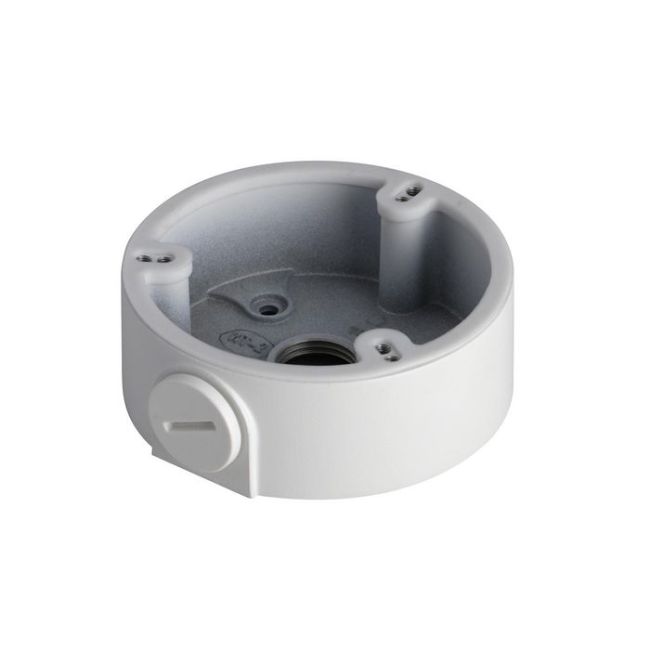

Dahua DH-PFA135 - Round CCTV Junction Box for Security Cameras
Product Features
- Dahua DH-PFA135 is a round aluminium alloy CCTV junction box from Dahua's Camera Mount Series.
- As a security camera junction box it keeps cables organised, with outlets at the bottom and side.
- White finish, 94.3mm diameter, G1/2 screw thread, 1.0kg load bearing, net weight 0.15kg.
- Package includes a water joint, 3 plastic expansion bolts, screws and an S3.0 wrench.
Dahua DH-PFA135 - Aluminium Alloy CCTV Junction Box
The Dahua DH-PFA135 (PFA135 without the DH- prefix) is a round CCTV junction box built of aluminium alloy, from Dahua's Camera Mount Series. It is a security camera junction box with a body 94.3 mm in diameter. Cables can be organised in the box, with outlets at the bottom and side, and Dahua describes it as matched with particular cameras. Its net weight is 0.15 kg, and Dahua's package information lists a water joint with the box.
Also listed as PFA135.
Key features
- Built of aluminium alloy.
- Matched with particular cameras, with an elegant design (Dahua key points).
- Cables can be organised in the box, with outlets at the bottom and side.
- Junction mount installation with a G1/2 screw thread and a water joint in the package.
- Load bearing of 1.0 kg (2.20 lb), net weight 0.15 kg.
- Works from -40 °C to +60 °C and in relative humidity of less than 90%.
Technical specification
| Model | DH-PFA135 |
|---|---|
| Type | Camera Mount - Junction Box |
| Casing Material | Aluminium alloy |
| Product Dimensions | Φ94.3 mm × 34.1 mm (Φ3.71" × 1.34") |
| Appearance Color | White |
| Net Weight | 0.15 kg (0.33 lb) |
| Gross Weight | 0.21 kg (0.46 lb) |
| Load Bearing | 1.0 kg (2.20 lb) |
| Installation | Junction mount |
| Screw Thread Type | G1/2 |
| Applicable Model | Please see "Camera Accessories Selection" (Dahua guide) |
| Packaging Dimensions | 115 mm × 45 mm × 115 mm (4.53" × 1.77" × 4.53") (L × W × H) |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Humidity | <90% (RH) |
| Storage Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Storage Humidity | 10%-90% (RH) |
| Anti-corrosion Level | Basic Protection |
| Package Information (Dahua) | Junction box × 1; M4×10 screw × 3; S3.0 wrench × 1; ST4×25 screw × 3; Plastic expansion bolt × 3; Water joint × 1 |
Related products
Dahua DH-PFA134 junction box and Dahua DH-PFA136 junction box. Check each against your camera model before ordering.
Common questions
Which cameras does the DH-PFA135 fit?
Dahua describes it as matched with particular cameras and refers to its Camera Accessories Selection guide for the applicable models. This item is supplied as genuine UK-specification stock. If you are not certain it is the right part for your camera, send us the model and we will confirm compatibility before you order.
Is the DH-PFA135 waterproof?
Dahua's datasheet and product page do not state an IP rating for the DH-PFA135, so we do not describe it as waterproof. Its package includes a water joint. If you need an IP66 rated junction box, see the Dahua DH-PFA130-E.
How is it installed?
Dahua lists junction mount installation, with a G1/2 screw thread.
How much weight can it carry?
Dahua gives a load bearing of 1.0 kg (2.20 lb).
What temperature range does it work in?
-40 °C to +60 °C, with relative humidity of less than 90%.
What is in the package?
Dahua's package information lists 1 junction box, 3 M4×10 screws, 1 S3.0 wrench, 3 ST4×25 screws, 3 plastic expansion bolts and 1 water joint.
Full manufacturer specification: Dahua product page
Browse the full Dahua range, all CCTV accessories, or contact us on 01902 902251.
Download the Dahua DH-PFA135 datasheet (PDF).
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
| Product Code | DH-PFA135 |
|---|---|
| Brand | Dahua |
| Product Type | Accessories & Mounts |
