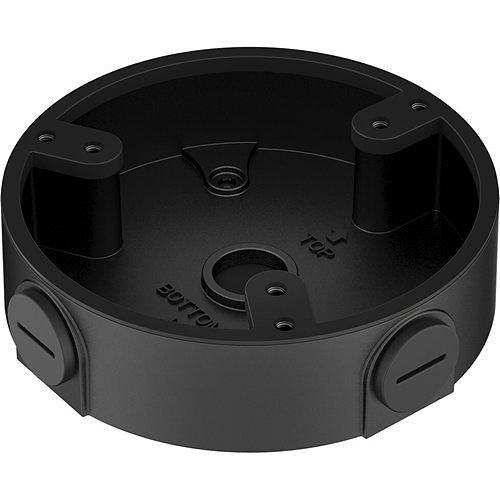

Dahua DH-PFA137-B - Black Aluminium CCTV Camera Junction Box for Turret IP Cameras
Product Features
- Dahua DH-PFA137-B black CCTV camera junction box, one of Dahua's camera accessories for turret IP cameras.
- Cables can be organised inside the box, with outlets at the bottom and side.
- Dahua builds the PFA137 junction box from aluminium alloy with a G1/2 screw thread.
- Operates from -40 °C to +60 °C and is rated for a 1kg load.
Dahua DH-PFA137-B - Black Aluminium CCTV Camera Junction Box for Turret IP Cameras
The Dahua DH-PFA137-B is a black CCTV camera junction box for compatible turret IP cameras. Dahua describes the PFA137 junction box as beautifully designed and convenient: cables can be organised in it and there are outlets at the bottom and side of the box. It is built of aluminium alloy and matched with particular cameras.
Also listed as PFA137-B.
Key features
- Built of aluminium alloy.
- Cables can be organised in the box, with outlets at the bottom and side.
- Matched with particular cameras; this listing is for compatible turret IP cameras.
- G1/2 screw thread, junction mount installation.
- Operates from -40 °C to +60 °C, 1.0kg load bearing.
Technical specification
Specification from Dahua's datasheet for the PFA137 junction box (white). The -B model is supplied in black; weight and packaging details are not repeated here because they are not confirmed for the black model.
| Model | DH-PFA137-B (Dahua datasheet model: DH-PFA137) |
|---|---|
| Type | Junction box |
| Colour | Black |
| Casing material | Aluminium alloy |
| Product dimensions | diameter 123.6mm x 34.2mm (4.87" x 1.35") |
| Load bearing | 1.0kg (2.20lb) |
| Installation | Junction mount |
| Screw thread type | G1/2 |
| Cable outlets | Bottom and side of the box |
| Operating temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Operating humidity | Below 90% RH |
| Applicable model | Matched with particular cameras; see Dahua's Camera Accessories Selection |
Related junction boxes
- Dahua PFA137 CCTV camera junction box (white)
- Dahua DH-PFA138-V2 CCTV camera junction box
- Dahua DH-PFA13A-E aluminium CCTV camera junction box (white)
Common questions
What is the Dahua DH-PFA137-B?
It is the black version of Dahua's PFA137 aluminium junction box, supplied here for compatible turret IP cameras.
Which cameras does it suit?
Dahua matches the PFA137 with particular cameras and points to its Camera Accessories Selection guide. Tell us your exact turret camera model and we will confirm before you order.
What is it made of?
Aluminium alloy, in black for this model.
What thread does it use?
A G1/2 screw thread, with junction mount installation.
Does it have an IP rating?
Dahua's datasheet for the PFA137 does not state an IP rating, so none is claimed here.
Is there a white version?
Yes, the white version is listed as Dahua PFA137 (see the related products above).
Can I collect it?
Yes, from our Wolverhampton trade counter (please call first).
About this product
This item is supplied as genuine UK-specification stock. If you are not certain it is the right part for your camera, send us the model and we will confirm compatibility before you order.
Browse the full Dahua range, all CCTV accessories, or contact us on 01902 902251. Trade customers are welcome at our Wolverhampton trade counter.
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
| Product Code | DH-PFA137-B |
|---|---|
| Brand | Dahua |
| Colour | Black |
| Product Type | Accessories & Mounts |
