Dahua DH-PFA153 - Heavy-Duty Camera Pole Mount Bracket for PTZ Cameras and Speed Domes

Dahua DH-PFA153 — Heavy-Duty Pole Mount Bracket

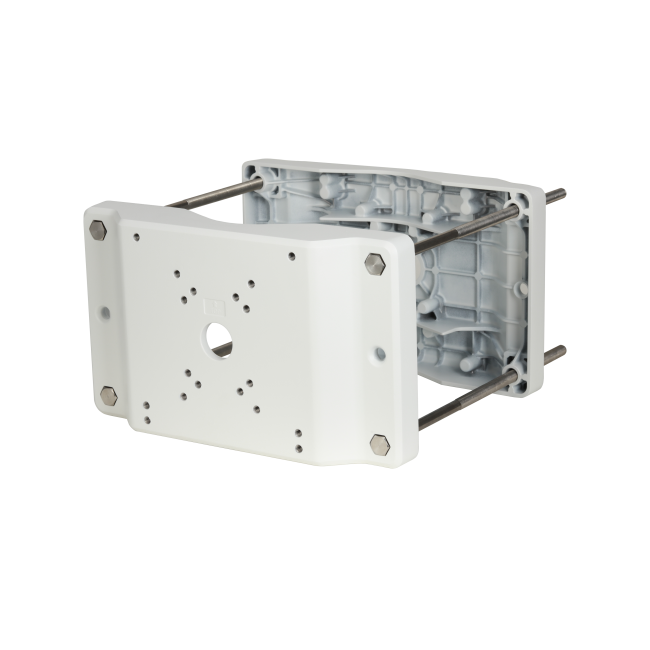

The Dahua DH-PFA153 is a heavy-duty camera pole mount bracket made from aluminium and stainless steel for fixing cameras to poles and masts from 150 mm to 300 mm in diameter. Dahua lists a high load bearing capacity (35 kg), double-sided installation and high compatibility with speed domes, PTZ cameras and outdoor surveillance boxes, and its application drawings show it with SD10 series and SD8A series PTZ cameras, a hybrid pan and tilt camera and an outdoor surveillance box.

Also listed as PFA153.

Key features

• Aluminium and stainless build with a 35 kg load bearing capacity.
• Fits poles and masts from 150 mm to 300 mm in diameter.
• Camera mount and CCTV pole mount for fixing cameras to poles and masts.
• Aesthetic design with double-sided installation.
• High compatibility with speed domes, PTZ cameras, outdoor surveillance boxes and more, as Dahua puts it.
• White finish; works from -40 °C to +60 °C.

Technical specification

Package contents (Dahua package list)

• Pole mount bracket body × 2
• M12 × 360 bolt × 4, M8 × 35 screw × 4, ST3 × 8 screw × 2
• Washer sleeve × 4, spring washer × 4, M12 nut × 8
• Cable tie × 1, anti-slide sleeve × 1, S6.0 wrench × 1, user manual × 1

Related Dahua accessories

Other Dahua accessories we list: Dahua DH-PFA150-V3 pole mount bracket, Dahua DH-PFA154 pole mount bracket, Dahua DH-PFA151 corner bracket.

Common questions

What is the DH-PFA153 used for?

It fixes cameras to poles and masts. Dahua lists high compatibility with speed domes, PTZ cameras and outdoor surveillance boxes.

What size pole does the DH-PFA153 fit?

Poles and masts from 150 mm to 300 mm in diameter.

How much weight can it hold?

Dahua gives a load bearing of 35 kg and lists high load bearing capacity as a key point. It also lists high compatibility with speed domes, PTZ cameras and outdoor surveillance boxes.

Which cameras is it shown with?

Dahua's application drawings show SD10 series and SD8A series PTZ cameras, a hybrid pan and tilt camera and an outdoor surveillance box. For other cameras, send us the model and we will confirm compatibility before you order.

Is there a corrosion-proof version?

Yes, Dahua lists the DH-PFA153A as the corrosion-proof heavy-duty pole mount bracket. Contact us if you need it.

What is in the package?

Two pole mount bracket bodies, four M12 × 360 bolts, four M8 × 35 screws, two ST3 × 8 screws, four washer sleeves, four spring washers, eight M12 nuts, a cable tie, an anti-slide sleeve, an S6.0 wrench and a user manual.

What temperature range does it work in?

Dahua gives an operating temperature of -40 °C to +60 °C and humidity of up to 90% RH.

Full manufacturer specification: Dahua product page
