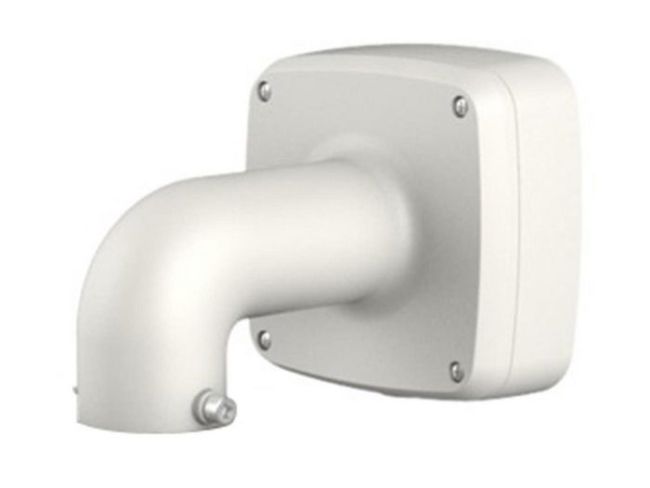

Dahua DH-PFB302S-V2 - Wall Mount Bracket with Embedded Junction Box
Product Features
- Dahua DH-PFB302S-V2 wall mount bracket with an embedded junction box, a CCTV camera wall bracket from Dahua's camera accessories.
- The embedded junction box makes it easy to hide and connect the cables.
- Mainly used in scenes that require wall mount installation.
- Dahua lists the PFB302S as an IP66 rated aluminium alloy bracket suitable for a variety of cameras.
Dahua DH-PFB302S-V2 - Wall Mount Bracket with Embedded Junction Box
The Dahua DH-PFB302S-V2 is a wall mount bracket for CCTV cameras with an embedded junction box that makes it easy to hide and connect the cables. Dahua publishes its datasheet under the model name PFB302S and describes it as a cost-effective, elegant aluminium alloy bracket, IP66 rated, suitable for a variety of cameras and mainly used where wall mount installation is needed.
Also listed as PFB302S-V2 or PFB302S V2.
Key features
- Embedded junction box makes it easy to hide and connect the cables.
- Wall mount installation.
- Built of aluminium alloy, with an IP66 rating (Dahua PFB302S datasheet).
- Suitable for a variety of cameras, according to Dahua.
- G1 1/2 and G3/4 screw threads.
Technical specification
Specification from Dahua's datasheet for the PFB302S. This listing is the -V2 model, so weight, dimensions, load rating and packaging are not repeated here.
| Model | DH-PFB302S-V2 (Dahua datasheet model: DH-PFB302S) |
|---|---|
| Type | Wall mount bracket with embedded junction box |
| Installation | Wall mount |
| Casing material | Aluminium alloy |
| Protection | IP66 |
| Screw thread type | G1 1/2, G3/4 |
| Operating temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Operating humidity | Below 90% RH |
| Applicable model | Suitable for a variety of cameras; see Dahua's Camera Accessories Selection |
Related Dahua accessories
- Dahua DH-PFB300C ceiling mount bracket
- Dahua DH-PFB301S-E-V2 swan neck wall mount bracket for PTZ cameras
Common questions
What is the Dahua DH-PFB302S-V2?
It is a wall mount bracket with an embedded junction box, so cables can be hidden and connected neatly at the mounting point.
Is it IP66 rated?
Dahua's PFB302S datasheet lists IP66 protection. This listing is the -V2 model, so ask us if the rating matters for your installation.
What is it made of?
Aluminium alloy, according to Dahua's datasheet.
Which cameras does it suit?
Dahua says it is suitable for a variety of cameras and points to its Camera Accessories Selection guide. Tell us your camera model and we will confirm compatibility before you order.
Is it a pendant mount for PTZ cameras?
Dahua's datasheet calls the PFB302S a wall mount bracket (installation: wall mount) with G1 1/2 and G3/4 screw threads and does not name PTZ cameras, so check your camera's mounting thread before you order.
Can I collect it?
Yes, from our Wolverhampton trade counter (please call first).
About this product
This item is supplied as genuine UK-specification stock. If you are not certain it is the right part for your camera, send us the model and we will confirm compatibility before you order.
Browse the full Dahua range, all CCTV accessories, or contact us on 01902 902251. Trade customers are welcome at our Wolverhampton trade counter.
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
Browse the range: Dahua brackets and mounts · Dahua cameras.
| Product Code | DH-PFB302S-V2 |
|---|---|
| Brand | Dahua |
| Product Type | Accessories & Mounts |
