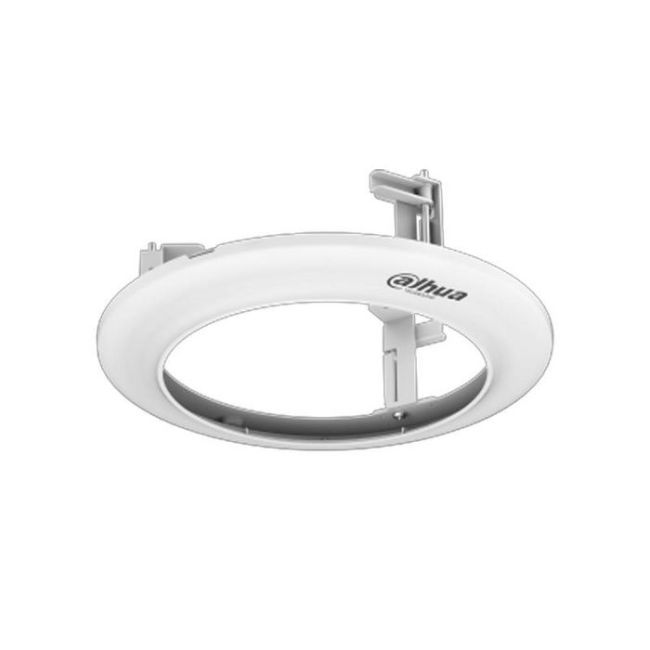

Dahua DH-PFB5310C - In-ceiling Mount Bracket for Recessed Ceilings
Product Features
- Dahua DH-PFB5310C in-ceiling mount bracket, a white CCTV camera ceiling mount bracket from Dahua's camera accessories.
- Suitable for 4A recessed ceiling brackets, quick and easy to install.
- Screws are embedded in the frame so the camera installs neatly without hindering its visual range.
- Includes an anti-drop rope for added camera protection.
- SECC and PC casing, 238mm x 78mm, 3kg load bearing.
Dahua DH-PFB5310C - In-ceiling Mount Bracket for Recessed Ceilings
The Dahua DH-PFB5310C is an in-ceiling mount bracket for CCTV cameras: a white camera ceiling mount in SECC and PC. Dahua says it is suitable for 4A recessed ceiling brackets, with the screws embedded in the frame so the camera installs neatly into its bracket without hindering its visual range.
Also listed as PFB5310C.
Key features
- Screws embedded in the frame, so the camera installs neatly without hindering its visual range.
- Suitable for 4A recessed ceiling brackets, quick and easy to install.
- Easy to disassemble and maintain.
- Includes an anti-drop rope that provides the camera with added protection.
- SECC and PC casing in white, 238.0mm x 78.0mm, 3.0kg load bearing.
Technical specification
| Model | DH-PFB5310C |
|---|---|
| Type | In-ceiling mount bracket |
| Casing material | SECC, PC |
| Product dimensions | 238.0mm x 78.0mm (9.37" x 3.07") |
| Appearance colour | White |
| Net weight | 0.35kg (0.77lb) |
| Gross weight | 0.62kg (1.37lb) |
| Load bearing | 3.0kg (6.61lb) |
| Installation | In-ceiling mount |
| Operating temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Operating humidity | Below 90% RH |
| Storage temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Storage humidity | 10% to 90% RH |
| Anti-corrosion level | Basic protection |
| Packaging dimensions | 286.0mm x 286.0mm x 120.0mm (11.26" x 11.26" x 4.72") |
| Package contents | In-ceiling mount bracket x 1, M4x10 screw x 4, anti-drop rope x 1, installation guide x 1 |
| Applicable model | See Dahua's Camera Accessories Selection |
Related Dahua accessories
- Dahua DH-PFB220C ceiling mount bracket
- Dahua DH-PFB300C ceiling mount bracket
Common questions
What type of bracket is the Dahua DH-PFB5310C?
It is an in-ceiling mount bracket (installation: in-ceiling mount), so the camera sits in a recessed ceiling position.
Which ceilings is it suitable for?
Dahua says it is suitable for 4A recessed ceiling brackets.
What does the anti-drop rope do?
It provides the camera with added protection. Dahua includes one anti-drop rope in the package.
How much weight can it carry?
Dahua's datasheet gives a load bearing of 3.0kg (6.61lb). Make sure your camera stays within that figure.
What is in the package?
Dahua lists one in-ceiling mount bracket, four M4x10 screws, one anti-drop rope and one installation guide.
Which cameras does it suit?
Dahua points to its Camera Accessories Selection guide rather than naming models on the datasheet. Tell us your camera model and we will confirm compatibility before you order.
Can I collect it?
Yes, from our Wolverhampton trade counter (please call first).
About this product
This item is supplied as genuine UK-specification stock. If you are not certain it is the right part for your camera, send us the model and we will confirm compatibility before you order.
Browse the full Dahua range, all CCTV accessories, or contact us on 01902 902251. Trade customers are welcome at our Wolverhampton trade counter.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. We deliver to England, Scotland and Wales, or you can collect from our Wolverhampton trade counter (please call first).
Browse the range: Dahua brackets and mounts · Dahua cameras.
| Product Code | DH-PFB5310C |
|---|---|
| Brand | Dahua |
| Product Type | Accessories & Mounts |
