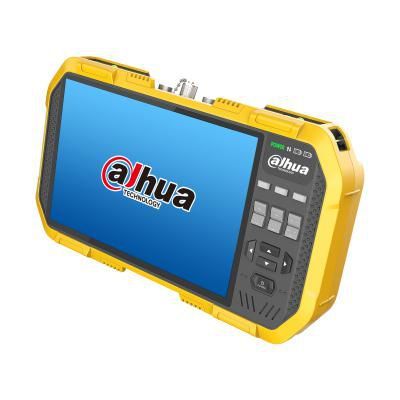

Dahua DH-PFM907-E - 7 Inch Touchscreen CCTV Camera Tester
Product Features
- Dahua DH-PFM907-E is a 7 inch touchscreen CCTV camera tester with IP scanner and WiFi analyser.
- LAN and ethernet cable tester (TDR); tests IP cameras by ONVIF, plus HDCVI, AHD, HDTVI and CVBS cameras.
- Wi-Fi signal test, address scan and PING test; digital multimeter, optical power meter, HDMI input and output.
- Two 18.5Wh battery compartments, about 10 hours combined working time.
Dahua DH-PFM907-E — 7 Inch Touchscreen CCTV Camera Tester
The Dahua DH-PFM907-E is a 7 inch touchscreen CCTV IP camera tester, which Dahua calls an integrated mount tester. It tests IP cameras (ONVIF and Dahua private protocol) and HDCVI, HDTVI, AHD and CVBS analogue cameras, and adds a TDR network cable tester (a LAN cable tester and ethernet cable tester), an IP scanner, a WiFi analyser with Wi-Fi signal test, a digital multimeter and an optical power meter for on-the-spot installation and maintenance of video surveillance devices.
Also listed as PFM907-E.
Key features
- Supports HDCVI, AHD, HDTVI and CVBS surveillance systems, and IP cameras over ONVIF or the Dahua private protocol.
- 7-in 16.7M colour TFT touch screen that works as a CCTV test monitor, with live view, snapshot and recording of the camera under test; 1920 × 1200, backlight brightness adjustable, running Linux.
- PoE or 12 VDC power supply; a 12 VDC 2A power output port for the camera under test.
- ONVIF support to configure the IP address; modify the IP camera resolution, IP address and account password, or restore factory defaults.
- TDR network cable test (pair length, attenuation and delay deviation) for LAN and ethernet cables, Wi-Fi spectrum and signal test as a WiFi analyser, IP address scanning as an IP scanner, and PING test.
- Digital multimeter function, optical power meter, audio and RS-485 control, HDMI test.
- Two battery compartments of 18.5Wh each; about 10 hours combined working time.
Technical specification
| Model | DH-PFM907-E |
|---|---|
| Type | Integrated mount tester (CCTV IP camera tester) |
| Operating system | Linux; online and local update |
| Display | 7-in 16.7M colour TFT touch screen, RGB interface LCD, 1920 × 1200 |
| Controls | Touchscreen; 13-key keypad; on-off button; 2 LEDs |
| IP camera test | ONVIF and Dahua private protocol; 2 MP (1920 × 1080 at 25 or 30 fps only), 4 MP, 6 MP, 4K; live view, snapshot and recording, zoom, H.264 and H.265 decoding |
| Analogue video test | HDCVI, HDTVI, AHD, CVBS (NTSC, PAL); HDCVI up to 2880 × 1620 at 25/30 fps; OSD menu and PTZ control |
| Video signal generator | PAL and NTSC test signals; HDCVI, HDTVI and AHD test signals (720p/1080p) |
| Wi-Fi | IEEE 802.11b/g/n/ac; 2.412-2.472 GHz, 5.18-5.24 GHz, 5.745-5.825 GHz; spectrum test, Wi-Fi test, signal monitoring |
| Digital multimeter | DC and AC voltage, DC and AC current, resistance, capacitance, diode voltage drop and continuity tests |
| RS-485 control | More than 30 protocols including Pelco-D/P, Samsung, Panasonic, Lilin and Yaan; 150 bps to 19200 bps |
| Network cable test | Pair length, attenuation and delay deviation; tests two or more cables and shows connection sequence and cable number |
| Network test | IP address scanning and PING test |
| HDMI test | 1-ch HDMI video input (720p and 1080p); 1-ch HDMI video output (1920 × 1080p) |
| Audio test | 1 audio input, 1 audio output |
| Optical power meter | InGaAs detector; calibrated wavelengths 1625/1550/1480/1310/1300/850 nm; -70 dBm to +10 dBm |
| Power | 12 VDC 1A / PoE 48 V-0.5 A; 1 × charge port 12 VDC; 1 × power output port 12 VDC 2A (power supply for camera) |
| Battery | Two battery compartments, each for a dedicated lithium battery pack of 18.5Wh; about 10 hours combined working time (can run on a single battery) |
| Ports | 2 × RJ45 10M/100M/1G network; 1 × HDMI input; 1 × HDMI output; 1 × USB; 1 × Micro-USB; 1 × RS-485; audio input and output |
| Operating temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Operating humidity | 30% to 90% RH |
| Net weight | 0.93 kg (2.05 lb) |
| Product dimensions | 235.0 mm × 135.0 mm × 45.0 mm (9.25" × 5.31" × 1.77") (L × W × H) |
| Certifications | CE and FCC Part 15 Subpart B, as listed in the Dahua datasheet |
Related Dahua accessories
Other Dahua accessories we list: Dahua DH-PFM900-E-V2 integrated mount tester (4 inch), Dahua DH-PFM904 portable CCTV camera tester (4.3 inch).
Common questions
What can the DH-PFM907-E test?
IP cameras over ONVIF and the Dahua private protocol (2 MP, 4 MP, 6 MP and 4K), HDCVI, HDTVI, AHD and CVBS analogue cameras, network cables, Wi-Fi signals, HDMI and audio ports, and electrical values with its digital multimeter.
Does it test HDCVI cameras?
Yes. Dahua lists HDCVI up to 2880 × 1620 at 25/30 fps. New to HDCVI? See our HDCVI guide.
Can it configure a camera's IP address?
Yes. Dahua lists ONVIF support to configure the IP address, and the tester can modify the IP camera resolution, IP address and account password or restore factory defaults.
Does it test network cabling?
Yes. The TDR network cable test shows pair length, attenuation and delay deviation, and can test two or more cables at once. It also has IP address scanning, PING test and a Wi-Fi spectrum and signal test.
How is it powered?
Dahua lists a PoE or 12 VDC power supply (12 VDC 1A / PoE 48 V-0.5 A), a 12 VDC 2A power output port for the camera under test, and two battery compartments of 18.5Wh each with about 10 hours of combined working time.
Does it have an SD card or RS-232 port?
Dahua lists SD card and RS-232 as not available (NA). It has RS-485, USB, Micro-USB, HDMI input and output, audio input and output and two gigabit RJ45 network ports.
Full manufacturer specification: Dahua product page
