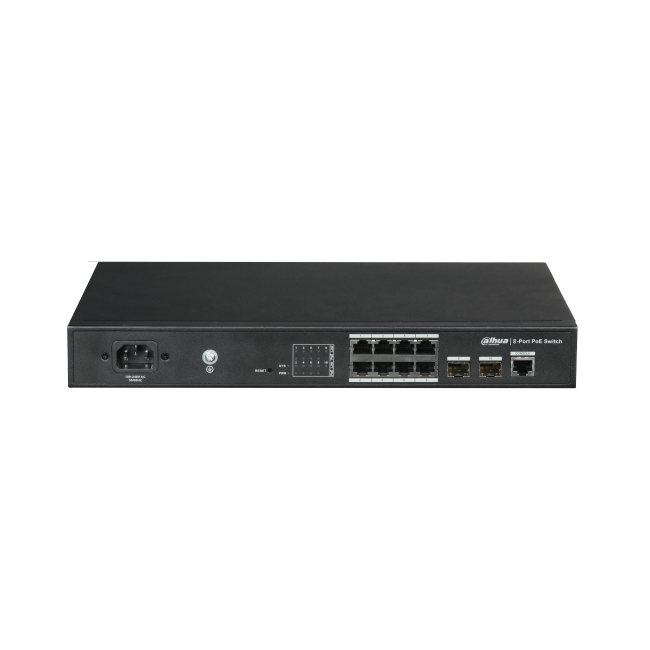

Dahua DH-PFS4210-8GT-150 - 8-Port Gigabit PoE Managed Switch, 150W
Product Features
- 8 x 10/100/1000 Base-T PoE ports plus 2 x 100/1000 Base-X SFP uplinks
- IEEE802.3af/at PoE, up to 30W per port, 150W total budget
- Layer 2 managed: VLAN, QoS, IGMP snooping, STP/RSTP/MSTP, LACP
- Web, Telnet, CLI and SNMP v1/v2c/v3 management
- 20 Gbps switching capacity, 8K MAC table, 4Mb buffer
- Internal AC100-240V power supply
Dahua DH-PFS4210-8GT-150: 8-Port Gigabit PoE Managed Switch
The Dahua PFS4210-8GT-150 is a Layer 2 managed PoE switch with eight Gigabit PoE ports and two Gigabit SFP ports for fibre uplinks. It supports IEEE802.3af and 802.3at, giving up to 30W per port within a 150W total budget - enough for a mix of fixed cameras and a small PTZ. Management features include VLANs, QoS, IGMP snooping, spanning tree and port aggregation, with 802.1X, SSH, HTTPS and ACL security.
Who is it for?
Installers building an 8-camera IP CCTV system that needs Gigabit throughput, remote management or a fibre link back to a comms room, and small business networks that want VLANs and QoS.
Key specification
| Ethernet ports | 8 x 10/100/1000 Base-T (PoE) |
|---|---|
| SFP ports | 2 x 100/1000 Base-X |
| Console | 1 x RS232 (RJ45), 115.2Kbps |
| PoE standards | IEEE802.3af, IEEE802.3at |
| PoE power | Up to 30W per port, 150W total |
| Switching capacity | 20 Gbps |
| Packet forwarding rate | 14.88 Mpps |
| Packet buffer | 4Mb |
| MAC table | 8K |
| VLAN | 802.1Q |
| Redundancy | STP / RSTP / MSTP |
| Link aggregation | Manual / LACP |
| Multicast | IGMP Snooping v1/v2/v3 |
| QoS | CoS/DSCP based, 8 output queues per port |
| Security | SSH, HTTPS, SNMP v1/v2/v3, ACL, IP source guard, ARP inspection, 802.1X, loop protection |
| Other | IPv4/IPv6, DHCP client/server and snooping, LLDP, NTP, port mirroring |
| Management | Web, Telnet, CLI, SNMP |
| Power | AC100-240V, 50/60Hz |
| Lightning protection | Common mode 2kV, differential mode 1kV |
| Operating temperature | 0 °C to +45 °C, 5%-95% humidity |
| Dimensions (W x D x H) | 340 x 200 x 44 mm |
Optional accessories (from Dahua's datasheet)
SFP modules for the fibre ports: PFT3950 (1.25G 850nm multi-mode, 500m, LC), PFT3960 (1.25G 1310/1550nm single-mode, 20km, LC) and PFT3970 (1.25G 1550/1310nm single-mode, 20km, LC). Contact us for SFP modules.
What you will need
Cat5e/Cat6 cable for each camera and a mains socket. SFP modules only if you are using the fibre uplinks.
Frequently asked questions
How many cameras can it power?
Eight. Each port gives up to 30W, but the total across all ports is 150W, so check the combined draw of your cameras.
Is it managed?
Yes. It is a Layer 2 managed switch with a web interface, Telnet, CLI and SNMP.
What are the default login details?
Dahua lists the default IP as 192.168.1.110 with username and password admin/admin. Change the password on first use.
Can I connect it with fibre?
Yes, the two SFP ports take 100/1000 Base-X SFP modules.
Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales. Browse the full Dahua range or contact us on 01902 902251.
| Product Code | DH-PFS4210-8GT-150 |
|---|---|
| Dimensions | 340mm x 200mm x 44mm |
| Manufacturer | Dahua |
| Device Port Speed | 10/100/1000 Mbps |
| Power | AC100-240V, 50/60Hz (internal) |
| Connection Type | Wired |
| Device Ports | 8 |
| Managed | Yes |
| PoE Ports | 8 |
| Product Type | Network Switch & Wireless |
