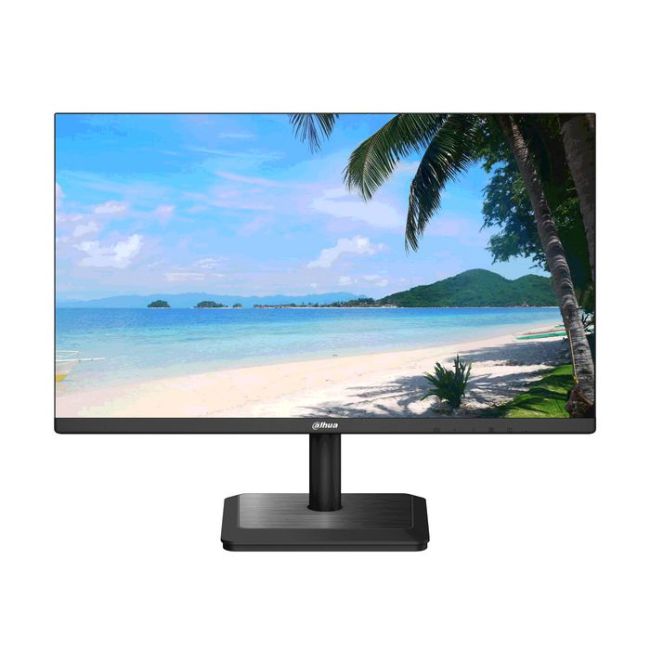

Dahua DHI-LM24-F200-C4 - 23.8 Inch Full HD 1080p CCTV Monitor
Product Features
- 23.8 inch Full HD (1920 x 1080) W-LED screen, 60 Hz
- Suitable for continuous 24/7 operation, slim bezel
- HDMI 1.4 and VGA inputs, earphone (audio) output
- 100 x 100 mm VESA mount, base and wall bracket in the box
A desk-sized Full HD screen for watching your CCTV cameras.
The Dahua DHI-LM24-F200-C4 is a 23.8 inch monitor (sold as a 24 inch class screen). Plug it into your NVR or DVR (the recorder that stores your camera footage) and you'll see live and recorded video in Full HD. Dahua rates it as suitable for continuous 24/7 operation.
Also listed as LM24-F200-C4. Dahua lists this model as DHI-LM24-F200.
Key features
- 23.8 inch Full HD 1920 x 1080 screen at 60 Hz
- 178° viewing angle, so the picture stays clear from the side
- Ultra-narrow bezel and a light plastic housing
- HDMI 1.4 and VGA inputs
- Earphone output for sound from your recorder
- Low power use: 23 W standard, ≤0.3 W standby
- 100 x 100 mm VESA mount for a wall bracket
Who is it for?
Homes, shops, reception desks and offices that want a desk or wall screen to watch a few cameras.
What you'll need
- A recorder or PC with an HDMI or VGA output. See our CCTV recorders.
- No extra cable for HDMI: an HDMI cable is in the box.
- Speakers or earphones if you want sound: it has an audio output, not built-in speakers.
Starting from scratch? Our CCTV kits come with cameras and a recorder, or build your own with the CCTV kit builder.
Frequently asked questions
Will it work with my Hikvision, HiLook or Dahua recorder?
Yes. Any recorder with an HDMI or VGA output will work, whatever the brand.
Can I leave it on all the time?
Yes. Dahua lists it as suitable for continuous 24/7 operation.
Does it come with a stand?
Yes. A base (pedestal) and a hanging bracket are in the box. Questions? Contact us.
Is 23.8 inch the same as 24 inch?
Yes. 23.8 inch is the measured screen size; monitors this size are sold as 24 inch screens.
Do you install it?
No. We are a supplier, not an installer, and have been trading since 2012. We deliver within 1–2 working days to England, Scotland and Wales.
Technical specification
| Model | DHI-LM24-F200 (DHI-LM24-F200-C4) |
|---|---|
| Screen size | 23.8 inch, 16:9 |
| Backlight | W-LED |
| Resolution | 1920 x 1080 (Full HD) @ 60 Hz |
| Brightness | 250 cd/m² |
| Contrast ratio | 1000:1 |
| Display colour | 16.7 million (8 bit) |
| Response time | 14 ms GtG (8 ms GtG BW) |
| Viewing angle | 178° (H) / 178° (V) |
| Inputs | 1 x HDMI 1.4, 1 x VGA |
| Output | 1 x earphone (audio out) |
| Operation | Suitable for continuous 24/7 use |
| Power supply | 19 VDC, 1.31 A |
| Power consumption | 23 W standard; standby ≤0.3 W |
| Bezel | 8.7 mm top, 6.25 mm sides, 16.8 mm bottom |
| VESA | 100 x 100 mm |
| Net weight | 2.7 kg |
| Operating temperature | 0 °C to +40 °C, 10–85% humidity |
| In the box | HDMI cable, power cable, pedestal, hanging bracket |
| Certification | CE, FCC |
For a smaller screen, see the 21.5 inch Dahua DHI-LM22-L200N.
See the full Dahua range, visit our Wolverhampton trade counter, contact us or call us on 01902 902251.
| Product Code | DHI-LM24-F200-C4 |
|---|---|
| Brand | Dahua |
| Max Resolution | 2.1MP (1080P) |
| Power | 19 VDC, 1.31 A; 23 W standard |
| Power Features | Standby ≤0.3 W |
| Screen Size | 23.8 |
| Product Type | Monitor |
| Colour | Black |
