Dahua DHI-NKB1000-E Network Keyboard Controller, 3-Axis Joystick Pan Tilt Zoom PTZ Controller

Skip to the beginning of the images gallery

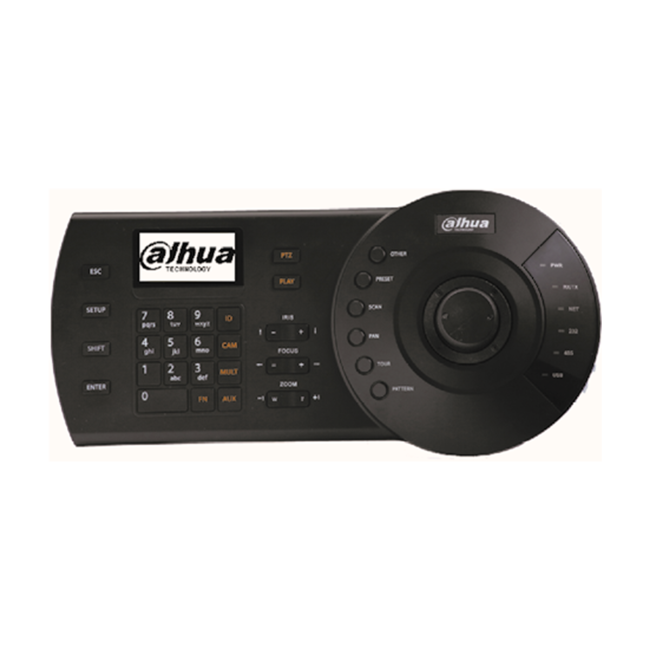

Dahua DHI-NKB1000-E - Network Keyboard Controller

£183.75 £153.12

In stock

SKU

DHI-NKB1000-E

Product Features

Dahua DHI-NKB1000-E is a network keyboard controller with a 3-axis joystick for pan tilt zoom (PTZ) control.
A PTZ camera controller for Dahua high speed domes, standalone DVRs and network video servers.
Preset position, auto scan, auto pan, auto tour and pattern functions.
RS485, RS232, USB and RJ-45 network connections, with RS422 reserved.
Connects to the SmartPSS or DSS platform by USB.

Product Description

Product Specifications

Dahua DHI-NKB1000-E - Network Keyboard Controller

The Dahua DHI-NKB1000-E is a desk keyboard controller with a joystick for driving PTZ cameras, standalone DVRs and network video servers. The joystick is 3-axis and vector-solving, with a twisting, return-to-centre head.

It works in two ways. In direct mode it connects over 1 RS232 or 2 RS485 interfaces, using the DH-2 protocol for DVRs and DH-SD1, PELCO-D or PELCO-P for domes. In network mode it uses its RJ-45 port and adds DVRs and network domes by IP address, port and protocol.

Preset position, auto scan, auto pan, auto tour and pattern are supported, and combination keys control split, window and channel selection. It supports up to 64 users, each with up to 256 RS485 addresses and 2048 network PTZ devices, and Dahua lists it as compatible with its DSS platform for video wall control.

Also listed as NKB1000-E.

Key features

Keyboard controller for Dahua high speed domes, standalone DVRs and network video servers.
Three-dimensional joystick for PTZ control. The joystick is 3-axis, vector-solving, with a twisting, return-to-centre head.
Preset position, auto scan, auto pan, auto tour and pattern functions.
On-screen menu and user operation procedure tips.
Connection by RS485, RS422 (reserved), USB, RS232 and network.
Direct mode (1 RS232 or 2 RS485) and network mode (RJ-45, by IP address, port and protocol).
Up to 64 users including admin, with up to 256 RS485 addresses and 2048 network PTZ devices per user.
Connects to the SmartPSS or DSS platform by USB.

Technical specification

Model	DHI-NKB1000-E
Dahua type	Network Keyboard
Controls	Dahua high speed dome, Dahua standalone DVR, network video server
Keyboard	Electromechanical key panel
Joystick	3-axis, vector-solving, with twisting, return-to-centre head
Functions	Three-dimensional joystick control of PTZ functions; preset position, auto scan, auto pan, auto tour, pattern
Auxiliary functions	On-screen menu and user operation procedure tips; connect to SmartPSS or DSS platform by USB
Connection	RS485, RS422 (reserved), USB, RS232 and network
Keyboard connector	RJ-45, RS232, RS485, RS422 (reserved), USB
Communication	Direct mode, network mode
Direct mode	Interface: 1 RS232 / 2 RS485. DVR protocol: DH-2. Dome protocol: DH-SD1, PELCO-D, PELCO-P, etc.
Network mode	Interface: RJ-45. DVR or network dome by IP address, port and protocol
Display	LCD, 75.2 mm x 33.85 mm
Maximum number of users	64 (including admin)
Maximum RS485 addresses (each user)	256
Maximum PTZ (IPC) added over network (each user)	2048
Power supply	Power adapter, input 100 V to 240 V, 50 Hz/60 Hz, output DC 12 V/2 A
Power consumption	5 W
Working temperature	-10 to +55 degrees C
Working humidity	10% to 90%
Atmosphere pressure	86 kPa to 106 kPa
Dimensions (W x D x H)	330 mm x 139 mm x 53 mm (height 103 mm including joystick)
Weight	1.3 kg (including package)

Works well with

Dahua DH-SD6AL445GB-HNV-IR 4MP 45x PTZ Camera: a Dahua network PTZ camera with 45x zoom
Dahua DH-SDT6E432-8P-MB-A-PV1-0280 X-Spans PTZ Camera: a Dahua network PTZ camera with 300 presets, tours, patterns and scans

Pairings are suggested on general compatibility (same brand, matching connection type and specification), not as tested combinations.

Common questions

What can the DHI-NKB1000-E control?

Dahua high speed domes (PTZ), Dahua standalone DVRs and network video servers, as listed on the Dahua datasheet.

How does it connect?

RS485, RS422 (reserved), USB, RS232 or network (RJ-45). In direct mode it has 1 RS232 and 2 RS485 interfaces. In network mode you add devices by IP address, port and protocol.

Does it work with non-Dahua PTZ cameras?

The datasheet lists the dome protocols DH-SD1, PELCO-D and PELCO-P in direct mode, so check the protocol of your camera against that list.

How many devices can one user control?

Up to 256 RS485 addresses and up to 2048 network PTZ devices per user, with up to 64 users including admin.

Can it work with SmartPSS or DSS?

Yes. The datasheet lists connection to the SmartPSS or DSS platform by USB.

Is it a PTZ camera controller?

Yes. It is a pan tilt zoom controller for Dahua high speed domes, with a 3-axis, vector-solving joystick that has a twisting, return-to-centre head, plus preset position, auto scan, auto pan, auto tour and pattern functions.

Is there another Dahua NKB1000 keyboard?

We also list the DHI-NKB1000-A network keyboard controller.

How is the keyboard powered?

It uses a power adapter with a 100-240V, 50/60Hz input and a 12V DC, 2A output. Dahua gives a power consumption of 5W.

Does it have a screen?

Yes. Dahua lists an LCD display measuring 75.2mm x 33.85mm.

How big is it?

It measures 330 x 139 x 53mm (W x D x H), or 103mm high including the joystick, and weighs 1.3kg including packaging.

Full manufacturer specification: Dahua datasheet
