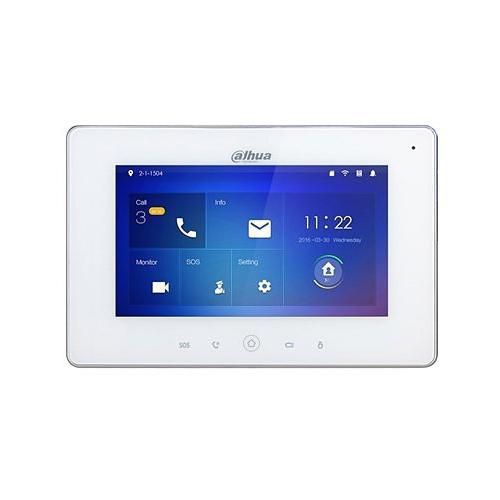

Dahua DHI-VTH5221DW-S2 7-inch Wi-Fi and PoE IP video intercom indoor monitor

Skip to the beginning of the images gallery

Dahua DHI-VTH5221DW-S2 - 7-Inch Wi-Fi and PoE IP Video Intercom Indoor Monitor

Name: Dahua DHI-VTH5221DW-S2 - 7-Inch Wi-Fi and PoE IP Video Intercom Indoor Monitor
Brand: Dahua
SKU: DHI-VTH5221DW-S2
Price: 194.88 GBP
Availability: InStock

£194.88 £162.40

In stock

SKU

DHI-VTH5221DW-S2

Product Features

Dahua DHI-VTH5221DW-S2 is a 7-inch Wi-Fi and PoE IP video intercom indoor monitor for video door entry systems.
1024 x 600 touch screen with two-way talk, powered by PoE (802.3af) or 12V DC.
6 wired alarm zones and 8 wireless alarm zones for 433MHz sensors, plus 1 alarm output and RS485.
Micro SD slot up to 32GB for record and snapshot, surface mount.

Product Description

Product Specifications

Dahua DHI-VTH5221DW-S2 — 7-Inch Wi-Fi and PoE IP Video Intercom System Indoor Monitor, Touchscreen, Video Door Entry, 433MHz Wireless Alarm

The Dahua DHI-VTH5221DW-S2 is a 7-inch IP and Wi-Fi indoor monitor for Dahua video intercom and video door entry systems. It has a 1024 × 600 touch screen, two-way talk, PoE (802.3af) or 12V DC power, and works with 433MHz wireless alarm sensors. Dahua's page covers the VTH5221DB-S2 and VTH5221DW-S2; without the DHI- prefix this model is VTH5221DW-S2.

Also listed as VTH5221DW-S2.

Key features

7-inch TFT capacitive touch screen, 1024 × 600, with touch buttons.
IPC surveillance: monitor IP cameras from the indoor monitor.
6 wired alarm zones on board and 8 wireless alarm zones (433MHz only), with 1 alarm output and 1 RS485.
Wi-Fi (IEEE 802.11b/g/n) and 10M/100Mbps Ethernet.
Micro SD card optional, up to 32GB; record and snapshot need an SD card.
Dual-way bidirectional talk with an all-direction microphone and built-in loudspeaker.
DC 12V or PoE (802.3af) power; working power up to 7W.

Technical specification

Model	DHI-VTH5221DW-S2 (Dahua page: VTH5221D/DW-S2, IP and Wi-Fi indoor monitor)
Display	7-inch TFT capacitive touch screen, 1024 × 600
Operation	Touch buttons and capacitive screen
Processor and OS	Embedded micro processor; embedded Linux OS
Video compression	H.264
Audio	G.711; all-direction microphone; built-in loudspeaker; dual-way bidirectional talk
Wired alarm zones	6 on-board zones
Wireless alarm zones	8 zones (433MHz only)
Alarm output	1
RS485	1
Wi-Fi	IEEE 802.11b/g/n
Ethernet	10M/100Mbps self-adaptive
Network protocol	TCP/IP
Memory slot	Micro SD, max 32 GB
Installation	Surface
Power	DC 12V; PoE (802.3af)
Power consumption	Working: up to 7 W
Working temperature	-10 °C to +55 °C
Relative humidity	10%RH-90%RH
Dimensions	215.0 × 140.0 × 21.0 mm
Weight	0.8 kg

Works with

Dahua VTM59D desktop support, listed by Dahua as an accessory for this monitor.
A compatible Dahua VTO outdoor door station to pair with this monitor. Tell us the door station model and we will confirm compatibility before you order.

Related Dahua video intercom products from our range: DHI-VTH2421FW-P and DHI-VTH5422HW.

Common questions

How is the DHI-VTH5221DW-S2 powered?

Dahua lists DC 12V or PoE (802.3af). Working power consumption is up to 7W.

Does it connect by Wi-Fi or cable?

Both are listed: Wi-Fi (IEEE 802.11b/g/n) and a 10M/100Mbps Ethernet connection.

Does it support wireless alarm sensors?

Yes, Dahua lists 8 wireless zones (433MHz only) as well as 6 wired on-board zones. Dahua's key point for this monitor is that it works with wireless alarm sensors on 433MHz.

Can it record or take snapshots?

Yes, with a Micro SD card inserted. The card is optional and the maximum size is 32GB.

Can it stand on a desk?

Dahua lists the VTM59D desktop support as an accessory, and we stock the VTM59D.

Which door stations does it pair with?

Dahua's page does not list door station models. Tell us the door station you are pairing it with and we will confirm compatibility before you order.

Full manufacturer specification: Dahua product page
